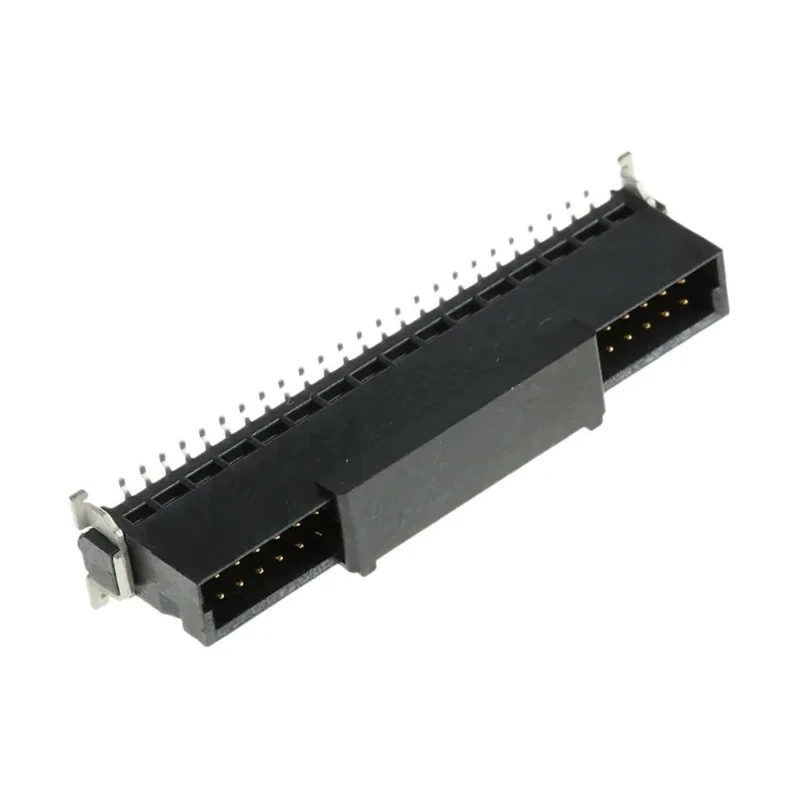

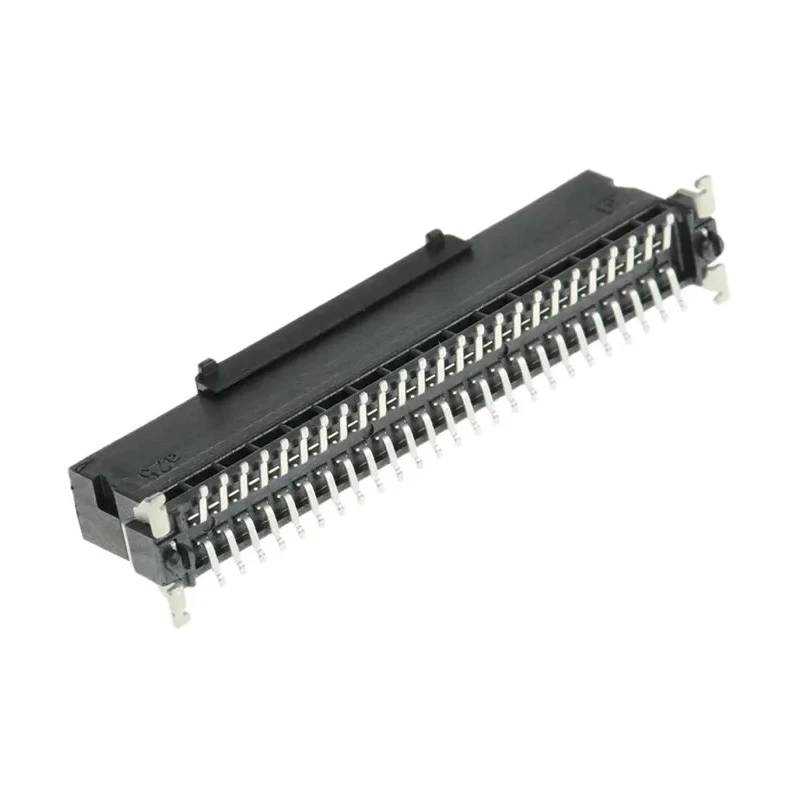

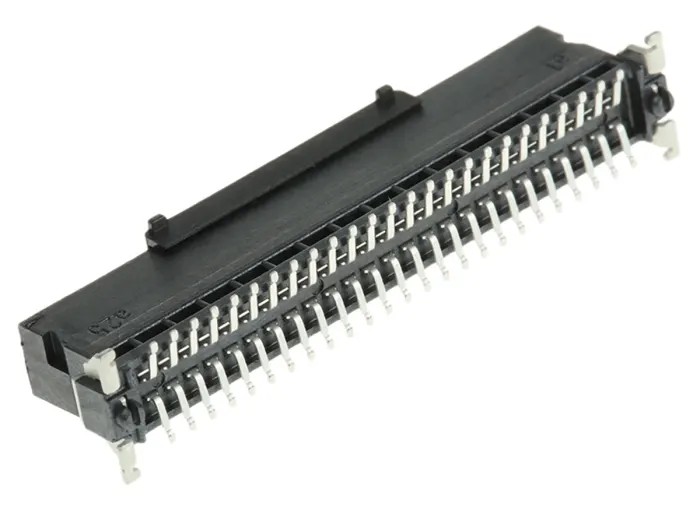

ERNI SMC Series Straight Surface PCB Header, 50 Contacts, 1.27 mm Pitch, 2 Row, Shrouded 063210 / 063210-E

Free Delivery in India | Lowest Global Shipping Charges

ERNI SMC Series Straight Surface PCB Header, 50 Contacts, 1.27 mm Pitch, 2 Row, Shrouded 063210 / 063210-E

Name: ERNI SMC Series Straight Surface PCB Header, 50 Contacts, 1.27 mm Pitch, 2 Row, Shrouded 063210 / 063210-E
Brand: ERNI
SKU: 368536
Price: 8.28 USD
Availability: InStock



Category PCB Header Brand ERNI Condition New

Specifications

Country of Origin	India
Brand	ERNI
Orientation	Straight
Current	1.1A
Model	063210 / 063210-E
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	SMC
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	50
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Mating Pin Length	3.25mm

Key Features

Compact design with 50 gold-plated contacts ensures high signal integrity.
Surface mount type with polarization for accurate mating and soldering brackets for secure retention.
Operates reliably over a wide temperature range from -55°C to 125°C.
Dual beam contact design provides low resistance and supports high-speed signals up to 3 Gbit/s.
Suitable for fully automated assembly in industrial, automotive, medical, and communication applications.
Locating pegs enable precise PCB placement before soldering.
Shrouded male contact gender ensures protection and robustness in connections.

Product Description

ERNI 063210 / 063210-E SMC Series Straight Surface PCB Header is a high-density, 50-contact connector with 1.27 mm pitch and 2 rows, designed for board-to-board and wire-to-board connections. This shrouded PCB header features a liquid crystal polymer housing and gold-plated copper alloy contacts to ensure excellent electrical conductivity and durability.

The connector supports high-speed signal transmissions up to 3 Gbit/s using an ultra-reliable dual beam contact design that offers low contact resistance, ensuring high performance and signal integrity. Polarization on the mating face and insertion chamfers prevent mis-mating, while locating pegs provide precise positioning on the PCB for soldering.

Surface mount package with soldering brackets delivers strong retention and mechanical stability, enabling resistance to shock and vibration. The connector operates efficiently within a broad temperature range of -55°C to 125°C, making it suitable for harsh industrial environments.

Applications of this SMC series PCB header include industrial machinery, automotive electronics, communication equipment, medical devices, and consumer electronics. Its compact size and design facilitate fully automated board assembly processes with various unmated stacking heights available for design flexibility.

Compact high-density 50-contact design for space-saving applications. Dual beam contact technology ensures low resistance and reliability. Gold plating and liquid crystal polymer housing provide durability. Temperature range from -55°C to +125°C suits varied industrial conditions.

Polarization and locating pegs enable accurate mating and assembly. Soldering brackets improve mechanical retention and shock resistance. Supports high-speed data transmission up to 3 Gbit/s.

This ERNI SMC series connector aligns with RoHS standards and is ideal for high-speed signal mezzanine applications requiring reliable and robust PCB connections. Browse the Electronics & Electricals category on EnvMart for more PCB Headers and connectors suitable for industrial and commercial use.
