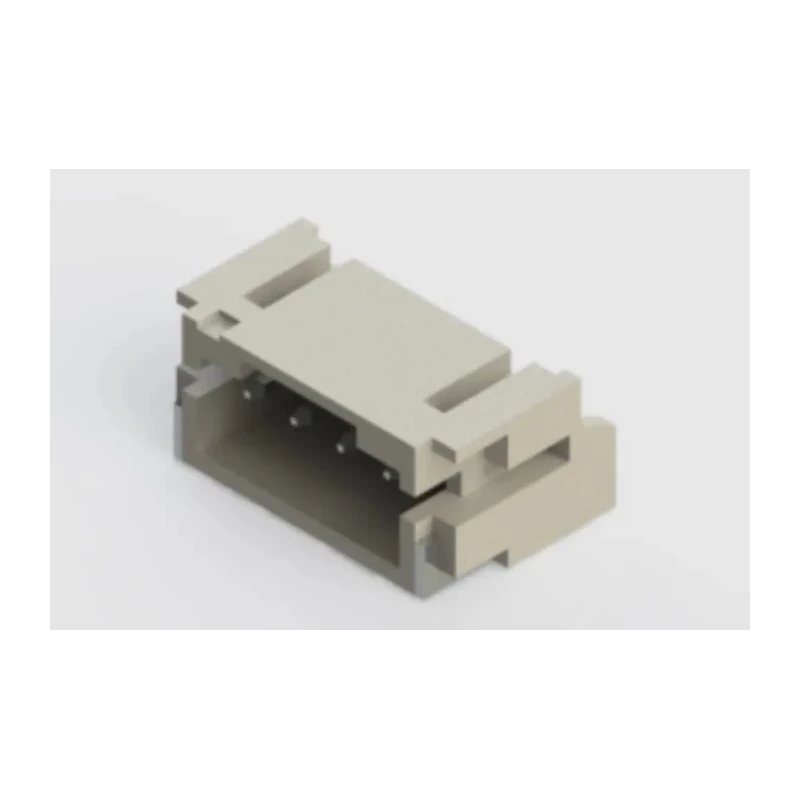

EDAC 140 Series Right Angle Surface PCB Header 4 Contact 2 mm Pitch 1 Row Shrouded 140-504-417-060

EDAC 140-504-417-060 is a right angle surface mount PCB header designed for wire-to-board connections with exceptional reliability and compact footprint. Featuring a single row of 4 female contacts spaced at a 2 mm pitch, this connector is ideal for applications requiring dense and secure PCB interfacing.

The housing is manufactured using polyamide 9T material providing high durability and rated UL94V-0 for flame retardance. Brass contacts with tin plating ensure consistent electrical performance and solder termination supports robust mounting to PCB surfaces.

Operating temperature ranges from -40°C to +105°C, making it suitable for demanding industrial, electronic, and manufacturing environments. It supports a maximum current of 2A and voltage up to 100V. The shrouded design enhances safety by protecting the contacts from damage and short circuits. Its right angle orientation facilitates compact assembly in equipment layouts.

This connector adheres to RoHS standards, reflecting its environmentally conscious design. The insulation resistance exceeds 1000 megaohms, ensuring excellent protection against electrical leakage.

Applications include power and signal interfacing in industrial electronics, communication devices, instrumentation, and consumer electronic assemblies. This product is manufactured in China and supplied new, making it suitable for immediate integration in assembly lines.

Compact 1 row, 4 contact shrouded header for secure PCB connections. Constructed with polyamide 9T housing material and brass female contacts plated with tin. Operates reliably between -40°C to 105°C temperature range. Supports 2A current and 100V operating voltage suitable for multiple electronic applications.

Surface mount termination type with solder connection for durability. Right angle orientation enables low profile wire-to-board connections. RoHS compliant ensuring environmental and safety standards. Insulation resistance rated at minimum 1000 megaohms.
