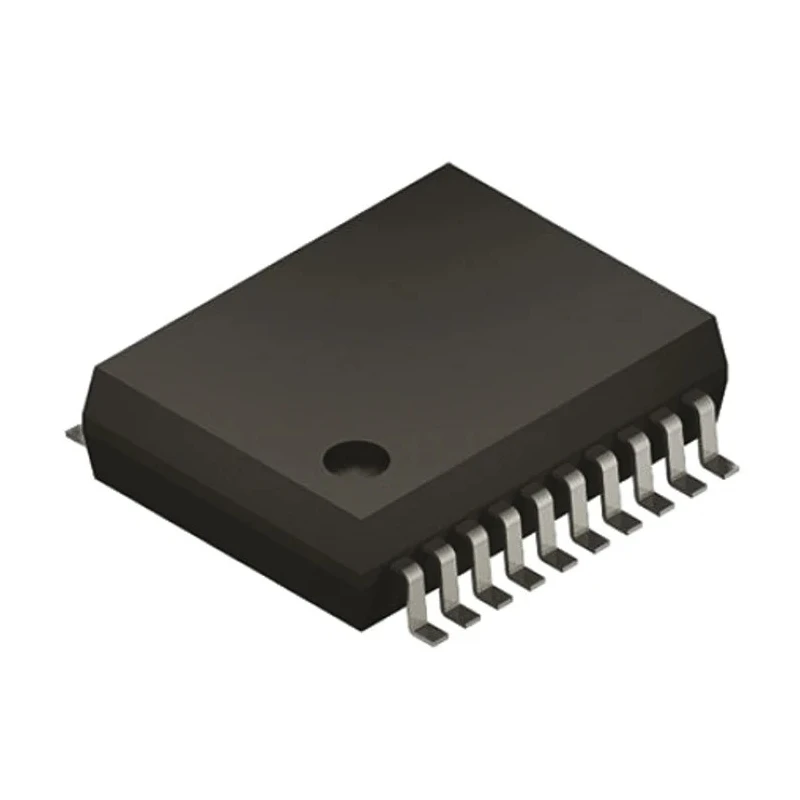

MaxLinear Multiprotocol Transceiver 20-Pin SSOP, 2 Transceivers, 3V-6V Supply, 20 Mbps Data Rate XR3160ECU-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.85mm |
| Length | 7.5mm |
| Model | XR3160ECU-F |
| Width | 5.6mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 70°C |
| Package Type | SSOP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 20 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 3V |
| Supply Current | 2.5mA |
| Maximum Data Rate | 20Mbps |
| Number of Transceivers | 2 |
| Transmitter Signal Type | Differential |
| Interface Standards | EIA/TIA485 |
Key Features
- Device supports two transceivers in a 20-pin SSOP package.
- Operates on a single supply voltage from 3V to 6V.
- Designed for surface mount applications.
- Transmitter and receiver use differential signaling for noise immunity.
- Operating temperature range from 0°C to 70°C.
- Compliance with EIA/TIA-485 interface standards.
- Compact size of 7.5 mm length, 5.6 mm width, 1.85 mm height.
- Low supply current consumption of 2.5 mA.
Product Description
MaxLinear XR3160ECU-F is a multiprotocol transceiver housed in a 20-pin SSOP package, designed to deliver a maximum data rate of 20 Mbps for reliable serial communications. Operated from a single supply voltage ranging between 3V and 6V, this device supports differential transmitter and receiver signal types to enhance noise immunity and signal integrity in demanding industrial environments.
This transceiver supports two communication channels within a compact surface mount design, featuring dimensions of 7.5 mm length, 5.6 mm width, and 1.85 mm height. Its low supply current of 2.5 mA further contributes to efficient power consumption, making it well-suited for embedded electronics and process control applications.
Engineered to operate reliably in temperature ranges from 0°C to 70°C, the XR3160ECU-F complies with the EIA/TIA-485 interface standard, widely used in industrial, single board computers, and point-of-sale equipment. The device supports RS-232, RS-422, and RS-485 protocols, enabling versatile integration in building security and automation systems.
This multiprotocol transceiver package includes 2 transceivers suitable for diverse serial communication needs. Surface mount packaging enhances circuit board assembly efficiency. Wide operating voltage from 3V up to 6V accommodates varied power supply environments.
Differential signaling ensures improved noise rejection and data accuracy. Compact dimensions fit space-constrained board designs. Low current draw supports energy-conscious electronic devices. Temperature rating ensures stable performance in typical commercial and industrial conditions.
Compliance with EIA/TIA-485 standard guarantees interoperability in industrial networks. Designed for multiple serial communication standards: RS-232, RS-422, and RS-485.
This MaxLinear transceiver is suited for industrial automation, electronic component manufacturing, communication devices, and building control systems. Installing the XR3160ECU-F chip aids in enhancing serial interface efficiency and reliability across numerous electronics applications.
Explore the range of semiconductor Multiprotocol Transceivers at EnvMart to find components optimized for your electronic system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of the XR3160ECU-F is 20 Mbps, making it suitable for reliable serial communications.
This model operates on a single supply voltage ranging from 3V to 6V.
The dimensions of this transceiver are 7.5 mm in length, 5.6 mm in width, and 1.85 mm in height.
The XR3160ECU-F includes two transceivers in its package.
It operates reliably within a temperature range of 0°C to 70°C.
The transmitter and receiver use differential signaling to enhance noise immunity.
It complies with the EIA/TIA-485 interface standards, suitable for industrial applications.
The supply current consumption of this model is 2.5 mA, contributing to efficient power use.
The XR3160ECU-F is designed for surface mount applications.
This transceiver supports RS-232, RS-422, and RS-485 protocols, allowing versatile integration.
It is housed in a 20-pin SSOP package, suitable for compact circuit board designs.
The country of origin for this transceiver is India.
