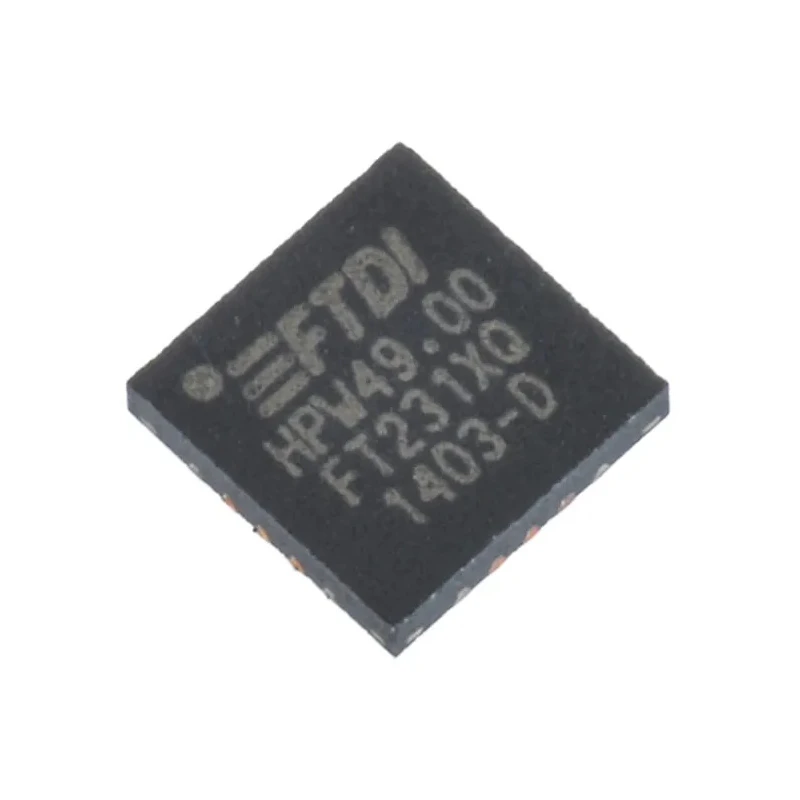

FTDI Chip Multiprotocol Transceiver 20-Pin, FT231XQ-R, USB 2.0 Interface, 3Mbps Data Rate, Surface Mount

FTDI Chip FT231XQ-R is a advanced multiprotocol transceiver featuring a 20-pin surface mount design suitable for full speed USB to UART interface conversion. This device supports a maximum data rate of 3 Mbps, making it ideal for efficient data communications in embedded systems.

The FT231XQ-R operates on a supply voltage ranging from 3.3 V to 5.25 V, with a low nominal operational current of 8 mA, and a USB suspend mode consumption of only 125 μA, enhancing power efficiency in portable and embedded applications.

This transceiver incorporates a fully integrated MTP memory and clock generation circuits, eliminating the need for external crystals and minimizing component count and PCB space requirements.

Designed for versatility, it supports full handshake UART communication and complies with USB 2.0 interface standards, ensuring compatibility with a wide range of host devices. The device operates reliably across a broad temperature range from -40°C to 85°C, suitable for industrial and commercial environments.

The RoHS-compliant FT231XQ-R is mounted using a surface mount technology with a 20-pin package, making it suitable for modern PCB assembly processes.

Typical applications include industrial control systems, embedded USB interfacing, data acquisition, and communication devices requiring robust USB to UART conversion at high data rates.

Supports full handshake UART interface for efficient data communication. Operates over a wide supply voltage range of 3.3 V to 5.25 V. Low power consumption with 8 mA nominal operational current. Includes fully integrated MTP memory and clock circuits requiring no external crystal.

Complies with RoHS standards ensuring environmental safety. Wide operating temperature range from -40°C to 85°C for industrial applications. Compatible with USB 2.0 interface standards for broad device support. Mount type is surface mount with a 20-pin configuration.

Supply current in suspend mode is nominally 125 μA for power efficiency. Designed without automotive standard compliance.
