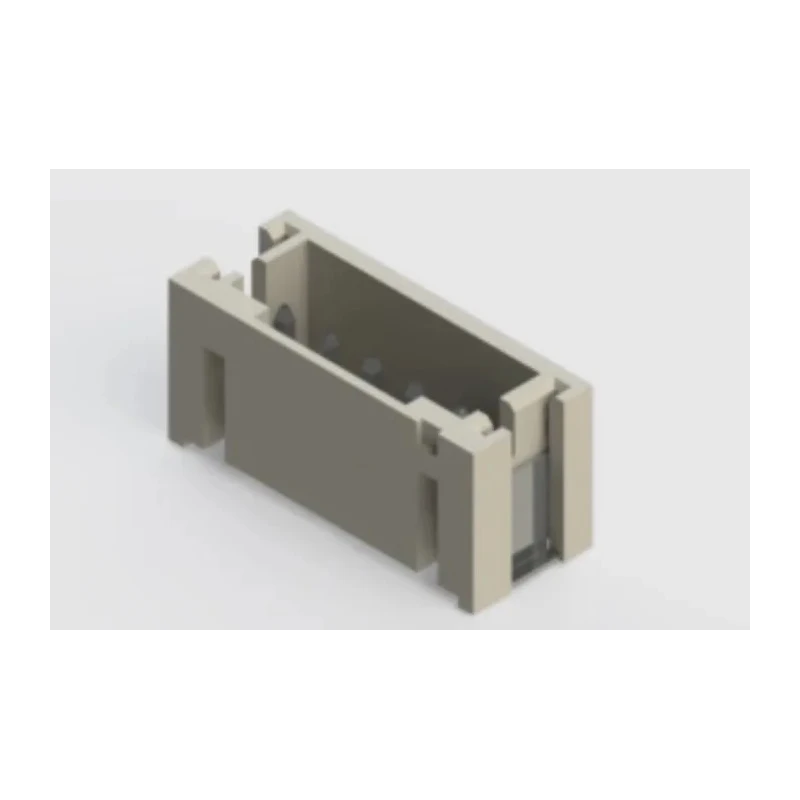

EDAC 140 Series Vertical Surface PCB Header 5 Contact 2 mm Pitch 1 Row Shrouded 140-505-417-011

EDAC 140-505-417-011 is a vertical surface mount PCB header designed for high-density wire-to-board connections. Featuring 5 female contacts in a single row with 2 mm pitch, this shrouded connector enhances assembly accuracy and contact protection. Its brass contacts plated with tin provide excellent electrical conductivity and mechanical reliability.

The housing is made from flame-retardant polyamide 9T material (PA66, UL94V-0), ensuring robust insulation and safety for industrial applications. Rated for a maximum operating voltage of 100V and current of 2A, it operates efficiently within a wide temperature range from -40°C to 105°C.

This component is intended for solder termination and suitable for surface mount technology. Its vertical orientation facilitates straightforward top entry wiring, making it ideal for compact PCB designs in electronics manufacturing.

The connector complies with RoHS directives, promoting environmental responsibility during usage and disposal stages.

Applications include use in industrial electronics, power connectors, telecommunications equipment, and embedded system boards requiring secure and reliable wire-to-board interfacing.

Features a single row configuration for streamlined PCB layout. Shrouded design enhances contact protection and alignment. Constructed with brass contacts plated with tin for durability. Housing made of flame retardant Polyamide 9T material.

Supports operating voltage up to 100 volts and current of 2 amperes. Designed for surface mount with solder termination type. Operates reliably in temperatures ranging from -40°C to 105°C. Wire-to-board connector system allows efficient internal wiring connections.

Compliant with RoHS standards ensuring environmental safety. Manufactured in China to strict quality standards. Explore the wide range of EDAC PCB Headers and connectors available at EnvMart for industrial, commercial, and laboratory applications.
