ABB 6-Pole Screw Mount Safety Switch Disconnector IP65 200A 110kW OT Series

Free Delivery in India | Lowest Global Shipping Charges

ABB 6-Pole Screw Mount Safety Switch Disconnector IP65 200A 110kW OT Series



Category Switch Disconnector Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	760mm
Model	IP65
Depth	250mm
IP Rating	IP65
Width	560mm
Mount Type	Screw
Series	OT
Minimum Operating Temperature	0°C
Switching Current	200A
Terminal type	Screw Clamp
Handle Colour	Black
Number of Poles	6
Standards/Approvals	IEC 60947-1
Switching AC Voltage	1000V ac
Switching Power	110kW

Key Features

Constructed with a rigid glass reinforced polycarbonate enclosure with UV protection.
Suitable for indoor and outdoor use with protection against low-pressure water jets (IP65 rating).
Rated switching current of 200A and switching power of 110kW.
Padlockable handle compatible with three padlocks and interlocked cover for safety.
Includes screw clamp terminals and cable entry knockouts for easy wiring from top and bottom.
Complies with IEC 60947-1 standards ensuring reliable industrial performance.
Operates at rated voltage up to 1000V AC with black handle color.
Can mount up to 4 auxiliary contacts (4NO, 2NC) for control functions.

Product Description

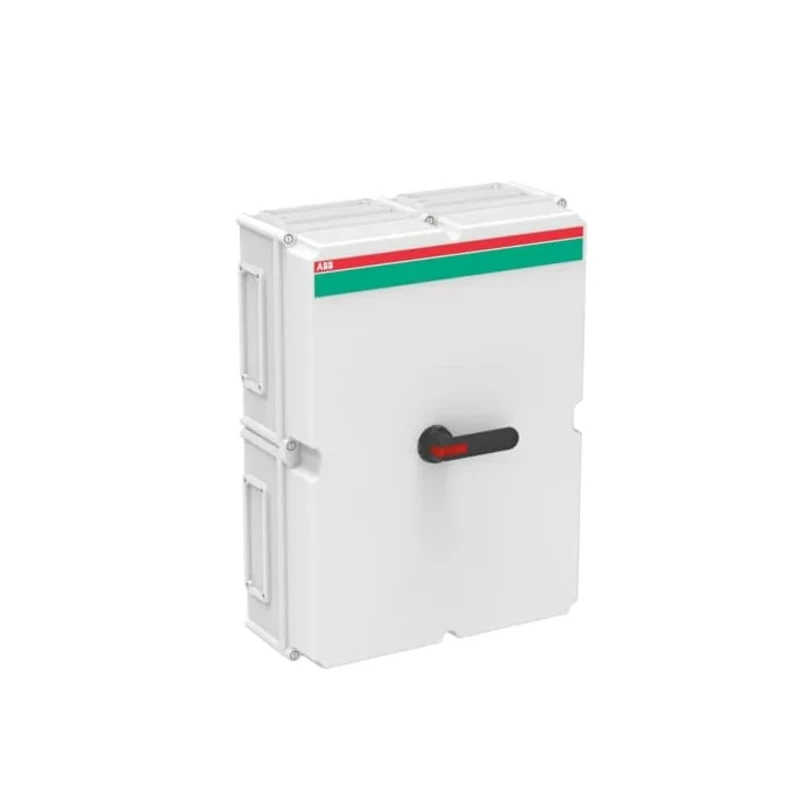

ABB 1SCA022260R5530 is a 6-pole screw mount safety switch disconnector from the OT series, featuring a robust glass reinforced polycarbonate enclosure that is UV protected and rated IP65 for protection against low-pressure water jets.

Engineered for both indoor and outdoor industrial and commercial applications, this switch disconnector provides reliable electrical isolation with a switching current rating of 200A and switching power of 110kW at up to 1000V AC.

The design includes cable entry knockouts suitable for II-flanges, allowing easy cable insertion from both top and bottom. Its screw clamp terminals provide secure connections, while the black handle is padlockable, accepting up to three padlocks to enhance safety during maintenance.

The enclosure cover is interlocked for additional safety, although the interlocking mechanism can be overridden if necessary. PE terminals are included for grounding purposes. Up to four auxiliary contacts (4 normally open, 2 normally closed) can be mounted to expand control options.

Compliant with IEC 60947-1 standards, this Switch Disconnector is suited for applications requiring high safety and performance levels, including electrical automation systems, industrial manufacturing, and power distribution networks.

Rigid glass reinforced polycarbonate enclosure with UV protection. Rated operational voltage of 1000V AC with 200A switching current. IP65 rating protects against water jets, suitable for outdoor use. Screw mount type for secure installation.

Padlock compatible handle allowing up to three padlocks. Multiple auxiliary contacts for control customization. Includes PE terminals for grounding. Dimensions: 760mm length, 560mm width, 250mm depth. Country of origin: Finland.

Explore ABB safety switches and disconnectors for reliable industrial electrical isolation solutions on EnvMart.
