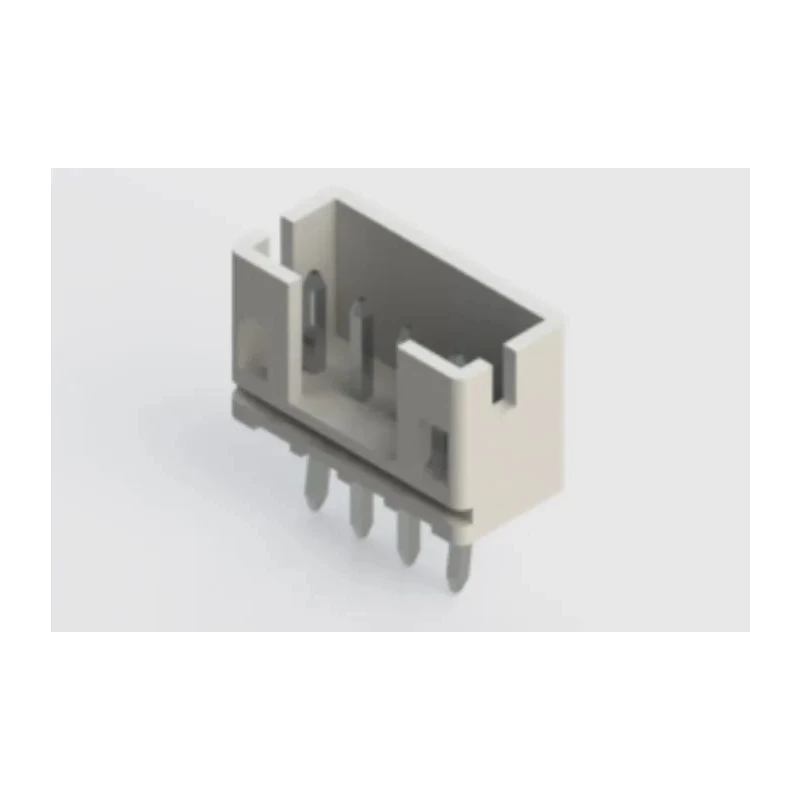

EDAC 140 Series Vertical Through Hole PCB Header, 4 Contact(s), 2 mm Pitch, 1 Row, Shrouded 140-504-415-001

The EDAC 140-504-415-001 is a vertical through-hole PCB header from the 140 series, featuring 4 female contacts arranged in a single row with a 2 mm pitch, designed for high-density internal wire to PCB connections. It comes with a shrouded polyamide 66 (PA66) UL94V-0 rated housing providing robust insulation and durability in demanding environments.

This PCB header is engineered for through-hole mounting, with contacts made of brass and plated with tin to enhance conductivity and resist corrosion. The tail pins have a length of 3.4 mm facilitating secure solder termination to the PCB. The connector supports a current rating of 2 amps and can operate at voltages up to 100 V.

Operating temperature ranges from -40°C minimum to 105°C maximum, making it suitable for industrial, electronic manufacturing, and laboratory applications requiring stable connections over wide temperature ranges. The header features a vertical orientation for efficient top entry wiring and includes kinked first and last contacts to ensure reliable cable retention.

Designed to comply with RoHS directives, this component ensures environmentally responsible manufacturing. Its insulation resistance is rated at a minimum of 1000 megaohms, adding to its electrical reliability. The header is ideally suited for use in PCB assemblies where compact, reliable wire-to-board connections are essential.

The header contains 4 female contacts arranged in one row. 2 mm pitch allows for compact connector placement on PCBs. Housing material PA66 is UL94V-0 flame retardant rated. Brass contacts with tin plating ensure durability and electrical performance.

Solder termination with 3.4 mm tail pins simplifies PCB soldering processes. Voltage rating is 100 V and current rating is 2 A. Operating temperature range is -40°C to 105°C suitable for harsh environmental conditions. Complies with RoHS for lead-free, safe use in electronic devices.

This EDAC PCB Header is ideal for a variety of applications including industrial equipment, electronics manufacturing, automotive electronics, and any scenario requiring high-density, reliable wire-to-board connections. EnvMart offers this product as part of its extensive range of PCB connectors and electronic components for professional users.
