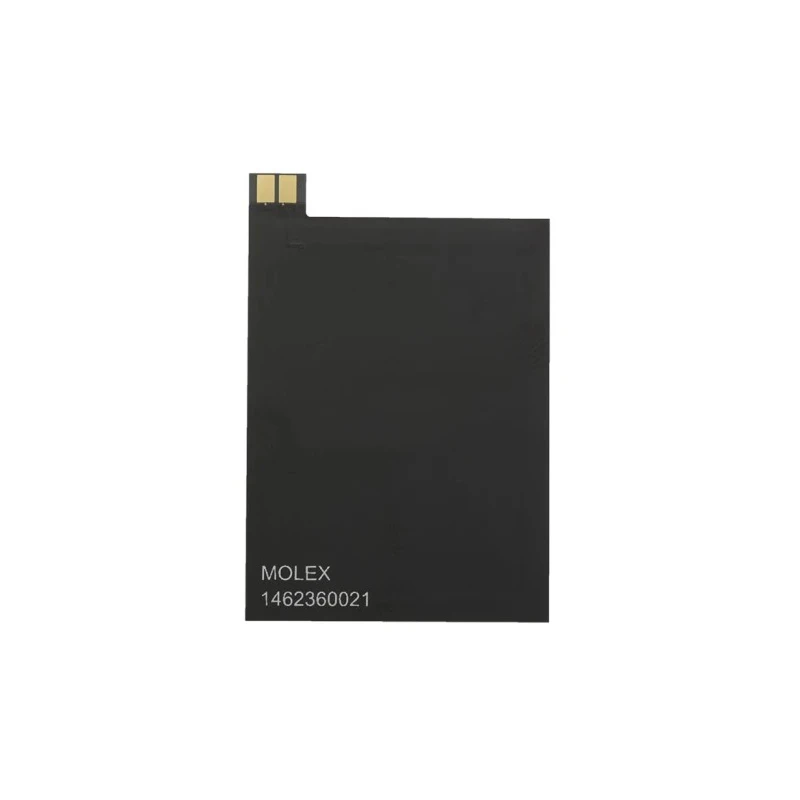

Molex Plate RFID Antenna with Wire-to-Board Connector NFC 13.56MHz Frequency 146236-0011
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Connector Type | Wire-to-Board |
| Series | 146236 |
| Standards/Approvals | RoHS |
| Maximum Frequency | 13.56MHz |
| RF Protocols | NFC |
| Antenna Physical Form | Plate |
| Antenna Mount Type | Adhesive |
| Antenna Internal Construction | FPC Coil |
| Antenna Form Factor | Rectangular |
Key Features
- The antenna features a plate form factor with dimensions of 23 mm by 27.30 mm and a thickness of 0.17 mm.
- It employs adhesive mounting for easy installation on various surfaces.
- Copper flex with wire-to-board connector ensures stable and efficient signal transmission.
- Compliant with RoHS standards, it facilitates eco-friendly electronic integration.
- Its low weight of approximately 0.189 grams supports versatile and lightweight applications.
- Designed to optimize signal transmission for NFC communication and access control systems.
- Suitable for ticketing, retail contactless payments, smart devices, and embedding in product packaging.
Product Description
Molex 146236-0011 Plate RFID Antenna is a rectangular near field communication (NFC) antenna operating at 13.56 MHz frequency, featuring a plate antenna structure that enables optimized signal transmission. It measures 23 mm by 27.30 mm with a minimal thickness of 0.17 mm, making it compact and suitable for integration in diverse electronic systems.
Equipped with an adhesive mounting type, this antenna allows straightforward installation on multiple substrates without additional hardware. The wire-to-board connector using copper flex provides reliable electrical connectivity essential for consistent NFC communication performance.
This antenna conforms to RoHS environmental regulations, ensuring safe and sustainable deployment in various applications. Its lightweight design, at approximately 0.189 grams, facilitates easy handling and minimal impact on device weight.
Typical industrial and commercial applications include secure access control systems, ticketing systems for public transportation, retail environments enabling contactless payments, embedding in product packaging for marketing enhancements, and integration within smart devices for seamless data communication.
Its design prioritizes high performance NFC communication reliability and user-friendly installation, providing a robust solution for RFID system engineers and electronic device manufacturers.
The antenna’s adhesive backing simplifies installation across various surfaces. Copper flex connectivity promotes stable and efficient signal transmission. The rectangular form factor with plate antenna design optimizes communication range and effectiveness.
Compliant with RoHS for environmentally safe usage. Lightweight and compact dimensions support integration in space-constrained applications. Explore EnvMart’s selection of RFID Antennas for advanced electronic and telecom solutions, including parts that meet diverse technical requirements and industrial standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a frequency of 13.56 MHz, suitable for NFC applications.
It measures 23 mm by 27.30 mm with a thickness of 0.17 mm, making it compact for various applications.
The antenna features an adhesive mount type, allowing for easy installation on various surfaces without additional hardware.
It utilizes a wire-to-board connector, which ensures reliable electrical connectivity for NFC communication.
The antenna is constructed with a flexible printed circuit (FPC) coil, optimizing its performance for NFC applications.
Yes, it is compliant with RoHS standards, ensuring environmentally safe usage in electronic applications.
Typical applications include secure access control systems, ticketing systems, retail contactless payments, and embedding in product packaging.
It weighs approximately 0.189 grams, making it lightweight and suitable for integration in space-constrained environments.
The antenna has a plate physical form factor, which is designed to optimize signal transmission.
This antenna supports NFC RF protocols, enabling effective near-field communication.
The country of origin for this antenna is China.
This model belongs to the 146236 series, which includes various RFID antenna solutions.
