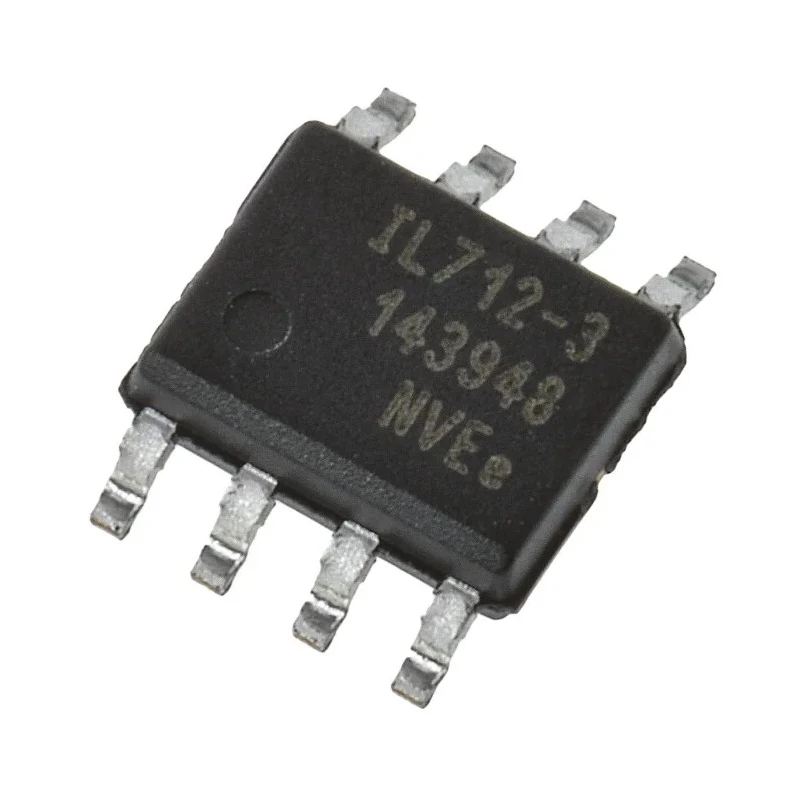

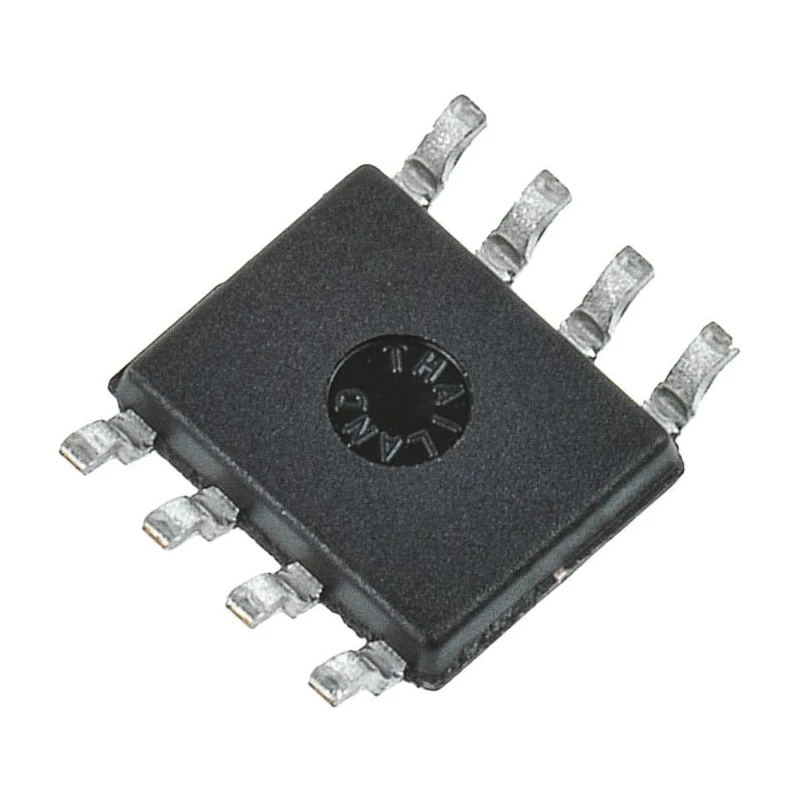

NVE 2-Channel Digital Isolator 110 Mbps, 2.5 kVrms Isolation, 5.5V Supply, 8-Pin SOIC IL712-3E
Specifications
| Country of Origin | India |
|---|---|
| Brand | NVE |
| Length | 5mm |
| Model | IL712-3E |
| Depth | 6.2mm |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | IL |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 3mA |
| Number Of Channels | 2 |
| Rise Time | 4ns |
| Supply Voltage | 5.5V |
| Standards/Approvals | IEC, UL |
| Maximum Forward Voltage | 7V |
| Number of Pins | 8 |
| Maximum Data Rate | 110Mbps |
| Propagation Delay Time | 18ns |
| Package Style | SOIC |
Key Features
- Supports a maximum data rate of 110 Mbps for fast digital communication.
- Features 2 independent channels for versatile signal isolation.
- Operates at a supply voltage of 5.5V with low input current of 3mA.
- Delivers propagation delay time of 18 nanoseconds ensuring quick response.
- Offers 2.5 kVrms isolation voltage for reliable electrical isolation.
- Designed for surface mount with compact 8-pin SOIC package style.
- Meets IEC and UL safety standards for robust operation.
- Functions reliably over a wide temperature range from -40°C to 125°C.
Product Description
NVE IL712-3E 2-Channel Digital Isolator is a high-speed, high-temperature digital isolation device designed for industrial and electronic applications requiring safe and efficient signal isolation with data rates up to 110 Mbps. Featuring a robust 2.5 kVrms isolation voltage, this isolator ensures protection against voltage transients and ground loops in communication and control circuits.
Its 8-pin SOIC surface mount package enables easy integration onto printed circuit boards without occupying excessive space, ideal for compact electronic designs. The IL712-3E supports two independent channels, enabling isolation of multiple signal lines, which enhances versatility for various industrial and laboratory instrumentation applications.
Operating at a supply voltage of 5.5 V with low power consumption (input current 3 mA), it delivers fast signal propagation with a typical delay of 18 nanoseconds and a rise time of 4 nanoseconds, suitable for high-speed data transmission.
The device complies with IEC and UL safety standards and functions reliably in harsh environments, operating between -40°C and 125°C. Its dimensions (5 mm length, 1.75 mm width, 6.2 mm depth) make it suitable for dense PCB layouts in industrial automation, instrumentation, power electronics, and communication equipment.
Supports maximum data rate of 110 Mbps. Provides two digital isolator channels for versatile signal handling. Ensures high isolation voltage of 2.5 kVrms for electrical safety. Compact 8-pin SOIC surface mount package eases PCB integration.
Wide operating temperature range from -40°C to 125°C enables use in industrial environments. Complies with IEC and UL approvals for high safety and reliability standards. Low input current of 3mA conserves power in electronic designs.
Fast propagation delay and rise times support high-frequency digital signals. Suitable for industrial, laboratory, communication, and power control applications. Explore the Electronics Components and Digital Isolator IC categories on EnvMart for more components and isolators suited for demanding industrial and electronic system designs.
Explore more products in our Digital Isolator ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IL712-3E supports a maximum data rate of 110 Mbps, allowing for fast digital communication.
This model operates at a supply voltage of 5.5V, with a maximum input current of 3mA.
The dimensions of the IL712-3E are 5 mm in length, 1.75 mm in width, and 6.2 mm in depth.
The propagation delay time is 18 nanoseconds, enabling quick response in signal transmission.
The rise time is 4 nanoseconds, suitable for high-speed data applications.
It operates reliably over a wide temperature range from -40°C to 125°C.
It is designed in an 8-pin SOIC surface mount package, facilitating easy integration onto PCBs.
The IL712-3E complies with IEC and UL safety standards, ensuring robust operation.
This digital isolator is suitable for industrial, laboratory, communication, and power control applications.
The country of origin for the IL712-3E is India.
