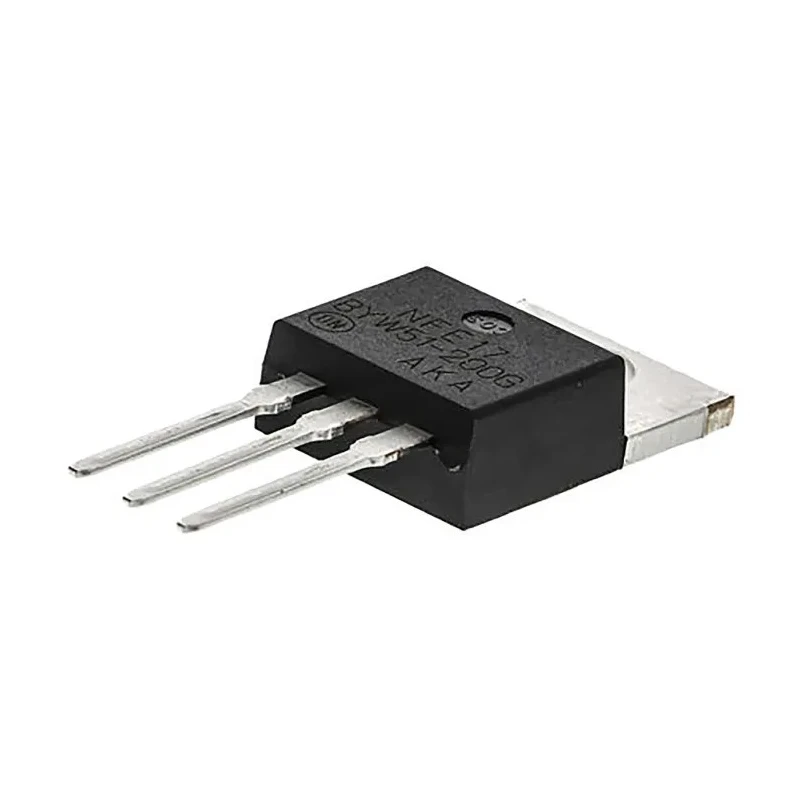

onsemi 200 V 16 A General Purpose Diode Through Hole TO-220AB BYW51-200G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 9.28mm |
| Length | 10.28mm |
| Model | BYW51-200G |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 16A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Common Cathode |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 970mV |
| Peak Reverse Recovery Time trr | 35ns |
Key Features
- Designed for general purpose rectification applications.
- Features a common cathode diode configuration with 3 pins.
- Maximum continuous forward current rating of 16A for heavy-duty use.
- Mount type is through-hole with TO-220AB package for easy PCB mounting.
- Operating temperature ranges from minus 65°C to 175°C.
- Maximum forward voltage of 970mV ensures efficient conduction.
- Peak non-repetitive forward surge current rating of 100A provides surge protection.
- Peak reverse recovery time of 35ns enables fast switching performance.
Product Description
onsemi BYW51-200G is a reliable general purpose diode designed for use in electronic semiconductor circuits requiring through-hole mounting. It supports a peak reverse repetitive voltage of 200V and a maximum continuous forward current of 16A, making it suitable for industrial and power applications.
This diode features a common cathode configuration and a TO-220AB package type with 3 pins, offering durability and ease of installation on standard PCBs. The device operates efficiently with a maximum forward voltage of 970mV and can withstand surge currents up to 100A non-repetitively.
Operating temperature range spans from -65°C to 175°C, allowing reliable performance under harsh environmental conditions. The peak reverse recovery time of 35ns facilitates efficient switching suitable for power supplies, rectifiers, and other electronics systems.
Physical dimensions include a length of 10.28mm, width of 4.82mm, and height of 9.28mm, providing a compact form factor that fits standard electronics assemblies. Although there are no specific automotive certifications, this component is widely used in industrial, commercial electronics, power supply, and manufacturing environments.
This diode is ideal for applications requiring steady current rectification, surge protection, and fast switching in discrete semiconductor designs. Designed for general purpose rectification applications. Features a common cathode diode configuration with 3 pins.
Maximum continuous forward current rating of 16A for heavy-duty use. Mount type is through-hole with TO-220AB package for easy PCB mounting. Operating temperature ranges from minus 65°C to 175°C. Maximum forward voltage of 970mV ensures efficient conduction.
Peak non-repetitive forward surge current rating of 100A provides surge protection. Peak reverse recovery time of 35ns enables fast switching performance. Compact dimensions: length 10.28mm, width 4.82mm, height 9.28mm. No automotive certifications but suitable for various industrial electronics.
Explore more components and semiconductor solutions at EnvMart for your industrial and electronic design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the BYW51-200G diode is 16A, making it suitable for heavy-duty applications.
This diode supports a peak reverse repetitive voltage of 200V, which is essential for its operation in various electronic circuits.
The BYW51-200G diode is packaged in a TO-220AB type and features a through-hole mounting configuration, allowing for easy installation on PCBs.
This model operates within a temperature range of -65°C to 175°C, enabling reliable performance in harsh environments.
The diode has a peak non-repetitive forward surge current rating of 100A, providing surge protection during operation.
The maximum forward voltage drop for the BYW51-200G is 970mV, which ensures efficient conduction during operation.
The peak reverse recovery time for this model is 35ns, facilitating fast switching performance in electronic applications.
The BYW51-200G features a common cathode configuration with 3 pins, suitable for various circuit designs.
The physical dimensions of the diode are 10.28mm in length, 4.82mm in width, and 9.28mm in height, providing a compact form factor.
This diode is commonly used in industrial and commercial electronics, power supply systems, and general-purpose rectification applications.
The BYW51-200G uses a common cathode diode configuration, which is standard for many rectification applications.
The peak reverse current rating for this model is 10μA, indicating its performance under reverse bias conditions.
