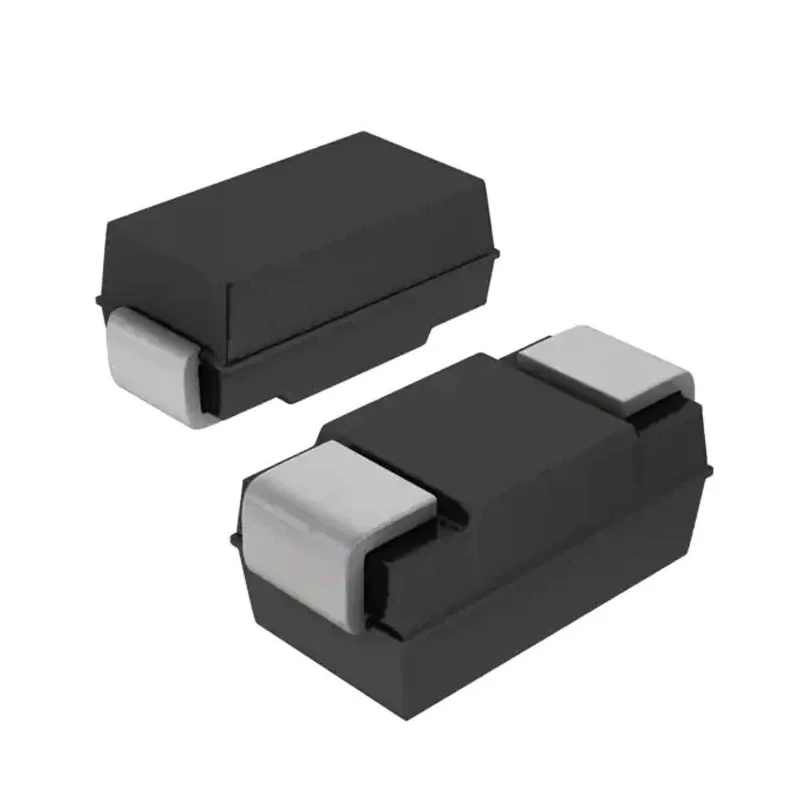

ROHM 100 V 1 A Schottky Barrier Diode Surface Mount DO-214AC RB168L100DDTE25
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 2.2mm |
| Length | 4.7mm |
| Model | RB168L100DDTE25 |
| Width | 2.8mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC (SMA) |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Maximum Forward Voltage Vf | 0.81V |
Key Features
- Maximum continuous forward current of 1 ampere.
- Peak reverse repetitive voltage rating of 100 volts.
- Low forward voltage drop of 0.81 volts reduces power losses.
- Compact DO-214AC (SMA) package designed for surface mounting.
- Operates reliably up to 150°C maximum temperature.
- Single diode with 2-pin configuration for PCB integration.
- Complies with AEC-Q101 automotive quality standards.
- Suitable for general rectification and power management applications.
Product Description
The ROHM RB168L100DDTE25 is a high-quality Schottky Barrier Diode designed specifically for surface mount applications. It features a silicon epitaxial planar type structure that ensures high reliability and super low reverse current leakage. Packaged in a compact DO-214AC (SMA) mold type, this diode is optimized for efficient rectification in electronic circuits.
Its maximum continuous forward current is rated at 1 ampere, and it supports a peak reverse repetitive voltage of 100 volts. The diode offers a low forward voltage drop of 0.81 volts, helping to minimize power dissipation during operation. With a maximum operating temperature of 150°C, it supports robust performance under demanding thermal conditions.
This single diode device with a 2-pin configuration comes compliant with the AEC-Q101 automotive standard, making it ideal for automotive and industrial electronics applications requiring high reliability and efficient power management.
Its small form factor (4.7mm length, 2.8mm width, 2.2mm height) enables compact PCB designs and space-saving layouts. Typical use cases include power supply rectification, voltage clamping, reverse polarity protection, and fast switching circuits in consumer electronics, industrial machinery, and automotive systems.
Maximum continuous forward current of 1 ampere ensures stable power flow. Peak reverse repetitive voltage of 100 volts suitable for medium voltage circuits. Compact DO-214AC package supports surface mounting on modern PCBs.
Low forward voltage reduces energy losses in switching applications. Certified to AEC-Q101 automotive standards for enhanced durability. High operating temperature tolerance of up to 150°C improves reliability. Single diode and 2-pin design facilitates straightforward integration.
Ideal for industrial, automotive, and consumer electronic devices requiring efficient diode solutions. Explore more high-quality semiconductors and Schottky Barrier Diodes in the Electronics & Electricals category on EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the ROHM RB168L100DDTE25 is rated at 1 ampere.
This diode supports a peak reverse repetitive voltage of 100 volts.
The forward voltage drop is 0.81 volts, which helps to minimize power losses during operation.
The maximum operating temperature for this model is 150°C, allowing for reliable performance under demanding conditions.
It is packaged in a compact DO-214AC (SMA) mold type, designed for surface mounting on PCBs.
This diode features a 2-pin configuration for straightforward PCB integration.
It complies with the AEC-Q101 automotive quality standards, ensuring high reliability for automotive applications.
The dimensions of the diode are 4.7mm in length, 2.8mm in width, and 2.2mm in height.
The ROHM RB168L100DDTE25 is a Schottky rectifier, optimized for efficient rectification in electronic circuits.
Typical applications include power supply rectification, voltage clamping, reverse polarity protection, and fast switching circuits.
The low forward voltage drop of 0.81 volts reduces energy losses in switching applications, enhancing efficiency.
This model features a single diode configuration, suitable for various electronic applications.
