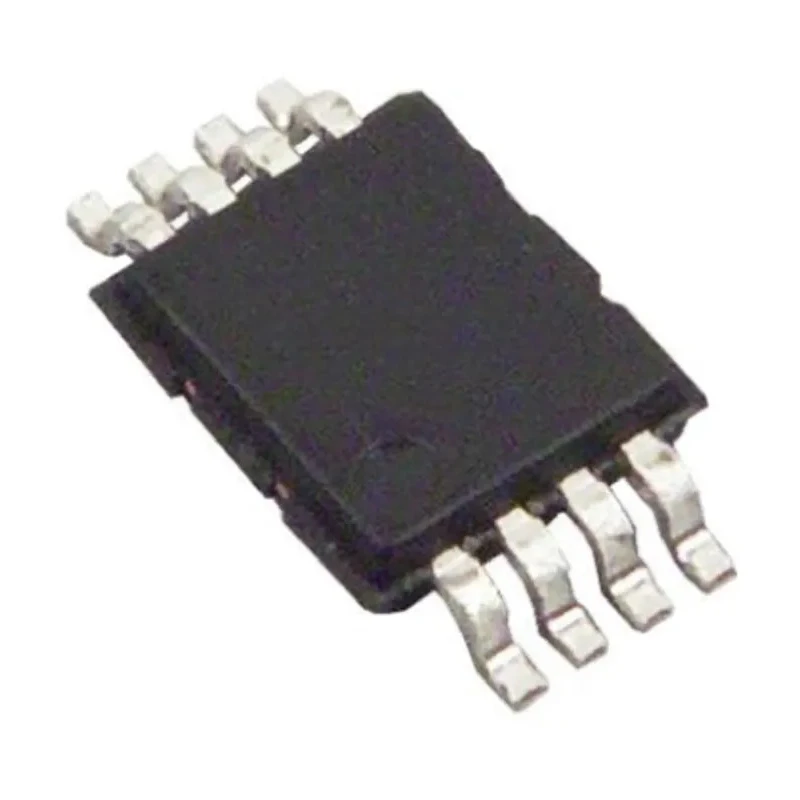

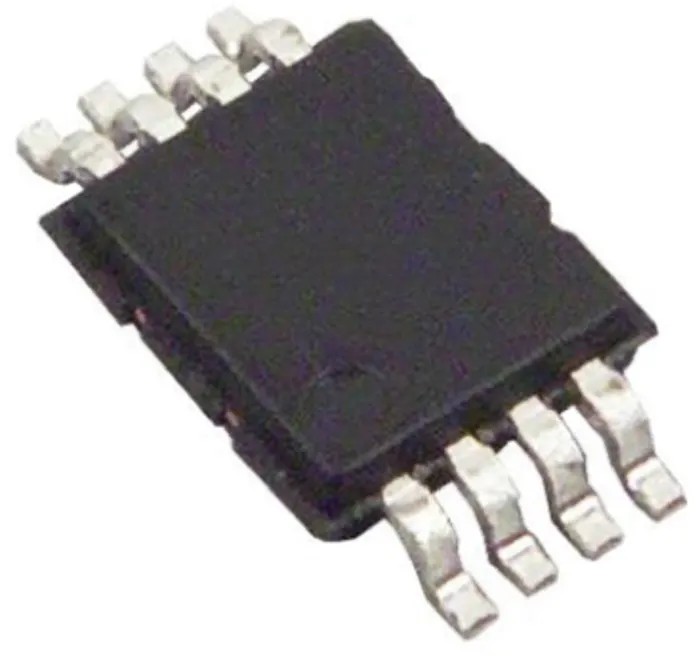

NVE 2-Channel Digital Isolator 110 Mbps 2.5 kVrms 5.5V 8-Pin MSOP IL711-1E
Specifications
| Country of Origin | United States |
|---|---|
| Brand | NVE |
| Length | 3.1mm |
| Model | IL711-1E |
| Depth | 1.1mm |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | IL |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 10μA |
| Number Of Channels | 2 |
| Rise Time | 4ns |
| Supply Voltage | 5.5V |
| Standards/Approvals | IEC, UL |
| Maximum Forward Voltage | 7V |
| Number of Pins | 8 |
| Maximum Data Rate | 110Mbps |
| Propagation Delay Time | 18ns |
| Package Style | MSOP |
Key Features
- Supports a maximum data rate of 110 Mbps for efficient digital communication.
- Provides 2 independent channels for signal isolation.
- Features a 2.5 kVrms isolation voltage ensuring electrical safety.
- Operates at a supply voltage of 5.5V with low power consumption.
- Includes an 8-pin MSOP package for easy surface mounting.
- Has a fast propagation delay time of 18 ns suitable for timing-sensitive applications.
- Designed to operate within a temperature range from -40°C to 125°C.
- Complies with IEC and UL standards ensuring quality and reliability.
Product Description
The NVE IL711-1E is a high-performance 2-channel digital isolator designed for reliable and secure signal isolation in industrial, electronics, and power control applications. With a maximum data rate of 110 Mbps, it supports fast communication between digital circuits while providing galvanic isolation of up to 2.5 kVrms. The device operates at a supply voltage of 5.5V and features an 8-pin MSOP surface-mount package optimized for compact PCB layouts.
This digital isolator offers a fast propagation delay time of 18 nanoseconds and a rise time of 4 nanoseconds, supporting high-speed digital signals with minimal distortion. It also maintains low input current of 10 microamperes, resulting in efficient energy usage. Operating reliably across a wide temperature range from -40°C to 125°C, it is suitable for harsh environments in industrial and automotive contexts.
The IL711-1E series meets important international standards including IEC and UL 1577 certifications, assuring compliance with safety and quality requirements. Its compact footprint of 3.1mm in length and width with a depth of 1.1mm enables space-saving designs without compromising performance.
This isolator is ideal for applications in industrial automation, power supplies, data acquisition systems, and communication interfaces demanding high isolation voltage, data integrity, and robust signal transmission under challenging environmental conditions.
Supports a maximum data rate of 110 Mbps for efficient digital communication. Provides 2 independent channels for signal isolation. Features a 2.5 kVrms isolation voltage ensuring electrical safety. Operates at a supply voltage of 5.5V with low power consumption.
Includes an 8-pin MSOP package for easy surface mounting. Has a fast propagation delay time of 18 ns suitable for timing-sensitive applications. Designed to operate within a temperature range from -40°C to 125°C. Complies with IEC and UL standards ensuring quality and reliability.
Compact dimensions of 3.1mm x 3.1mm x 1.1mm for space-saving PCB design. Explore more Digital Isolator ICs and advanced electronic components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IL711-1E supports a maximum data rate of 110 Mbps, allowing for efficient digital communication between circuits.
This model features a 2.5 kVrms isolation voltage, ensuring electrical safety during operation.
It operates at a supply voltage of 5.5V, which contributes to its low power consumption.
The dimensions of this digital isolator are 3.1mm in length, 3.1mm in width, and 1.1mm in depth, making it suitable for compact PCB layouts.
It has a fast propagation delay time of 18 nanoseconds, which is suitable for timing-sensitive applications.
The rise time for signals is 4 nanoseconds, which supports high-speed digital signal transmission.
It is housed in an 8-pin MSOP package, optimized for surface mounting on PCBs.
This model complies with IEC and UL standards, ensuring quality and reliability in its performance.
The maximum input current is 10 microamperes, contributing to its efficient energy usage.
It is ideal for applications in industrial automation, power supplies, data acquisition systems, and communication interfaces that require high isolation voltage and data integrity.
