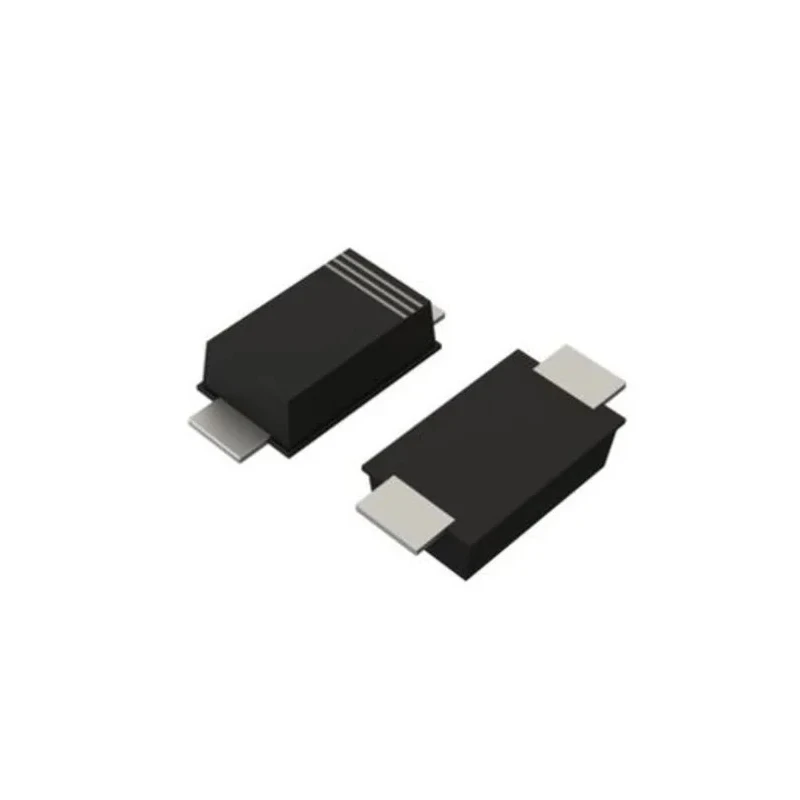

ROHM 30 V 1 A Schottky Barrier Diode Surface Mount SOD-123FL RB168MM-30TFTR

The ROHM RB168MM-30TFTR is a high reliability Schottky barrier diode designed using a silicon epitaxial planar structure. This 30 V, 1 A diode is engineered primarily for general rectification applications where low forward voltage and high efficiency are required. It comes in a compact SOD-123FL package, optimized for surface mounting on printed circuit boards, facilitating easy integration in compact electronic assemblies.

With a maximum continuous forward current rating of 1 ampere and a peak reverse repetitive voltage of 30 volts, this diode is suitable for a variety of low voltage DC power supply circuits. The low forward voltage of 0.69 V ensures minimal power dissipation, enhancing the overall power efficiency of the system.

Operating temperature tolerance up to 150°C enables the diode to be used in environments with elevated ambient temperatures without compromising performance or reliability. Its package dimensions of 2.7 mm by 1.7 mm by 0.9 mm allow for compact design layouts, important in space-constrained industrial, automotive, and communication electronics.

The product meets the automotive standard AEC-Q101, ensuring it complies with rigorous quality and reliability tests required in automotive electronic applications. The device's 2-pin configuration allows for simple integration in various circuit designs requiring robust and efficient diode performance.

The diode has a silicon epitaxial planar Schottky barrier construction for high reliability. The compact SOD-123FL surface mount package reduces footprint on PCB designs. Rated maximum continuous forward current is 1 A, allowing for moderate load applications.

Peak reverse repetitive voltage is 30 V for protection against voltage spikes. Low forward voltage drop of 0.69 V enhances energy efficiency. Operates at temperatures up to 150°C, suitable for harsh environments. Package size dimensions are 2.7 mm length, 1.7 mm width, and 0.9 mm height.

Conforms to AEC-Q101 automotive standard for quality assurance. 2-pin diode configuration ensures simple circuit connectivity.

This diode is ideal for use in industrial power supplies, automotive circuits, communications equipment, and other electronic devices requiring efficient and reliable diode rectification performance.
