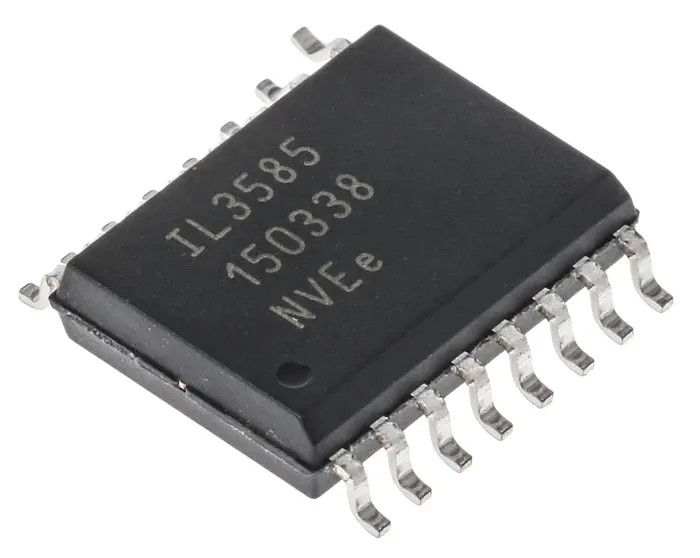

NVE Digital Line Transceiver, Non-Inverting, 16-Pin SOIC IL3585E

Free Delivery in India | Lowest Global Shipping Charges

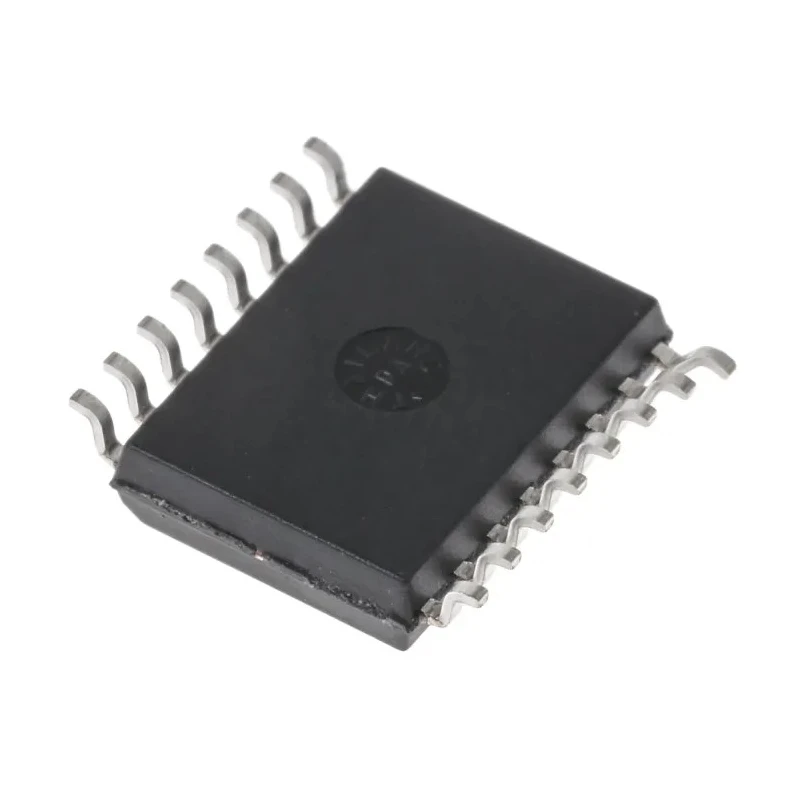

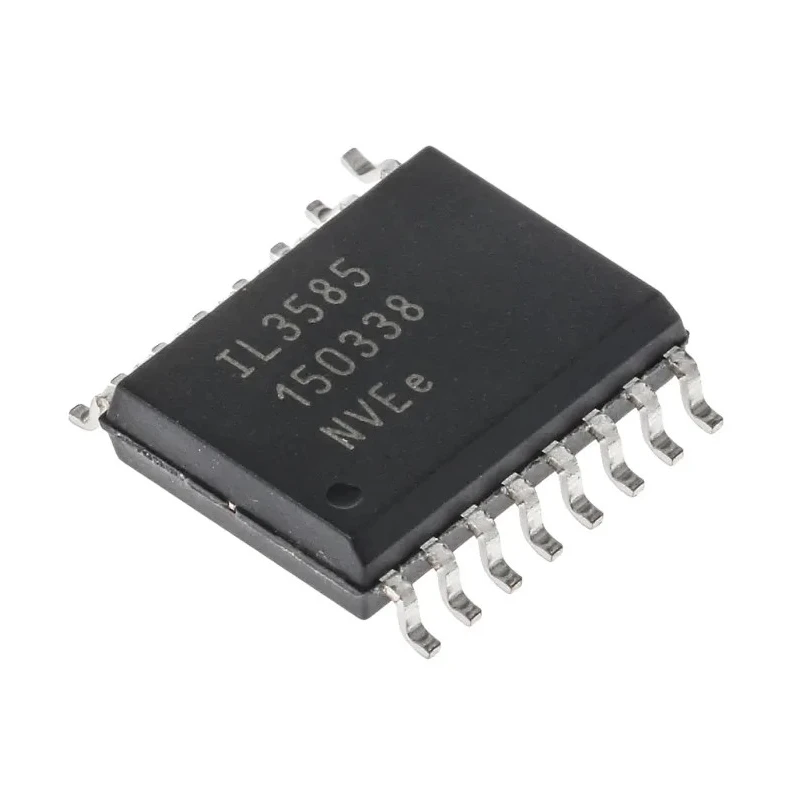

NVE Digital Line Transceiver, Non-Inverting, 16-Pin SOIC IL3585E



Category Line Transceiver IC Brand NVE Condition New

Specifications

Country of Origin	India
Brand	NVE
Height	1.58mm
Length	10mm
Model	IL3585E
Width	7.42mm
Mount Type	Surface
Output type	Digital
Series	IL3585
Input Type	Differential
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
IC Type	Line Transceiver IC
Pin Count	16
Maximum Supply Voltage	5V
Logic Family	CML
Logic Function	Bus Transceiver
Minimum Supply Voltage	3V
Maximum High Level Output Current	60mA
Maximum Propagation Delay Time @ CL	35ns
Supply Current	6mA

Key Features

This line transceiver belongs to the CML logic family and functions as a bus transceiver.
The IC supports a minimum supply voltage of 3V and maximum supply voltage of 5V.
It delivers maximum high level output current of 60mA with a supply current of 6mA.
The device operates efficiently over a wide temperature range from -40°C to 85°C.
Featuring a compact SOIC surface mount package with dimensions 10mm length, 7.42mm width, and 1.58mm height.
Maximum propagation delay time at load capacitance is 35ns, ensuring fast signal transmission.
Designed without automotive standards and approvals, focusing on general industrial applications.

Product Description

NVE IL3585E is a digital line transceiver IC designed for RS-485 line driver and receiver applications. Packaged in a 16-pin SOIC surface mount package, it provides non-inverting digital output with differential input suitable for bus transceiver usage. The transceiver belongs to the CML logic family ensuring compatibility with certain communication standards.

The device operates with a minimum supply voltage of 3V and a maximum of 5V, drawing a low supply current of 6mA. It delivers a maximum high level output current of 60mA and offers a maximum propagation delay time of 35ns at typical load capacitance, which helps in reducing communication latency.

Operating temperature range from -40°C to 85°C makes this IC suitable for harsh environments. The package's compact dimensions of 10mm length, 7.42mm width, and 1.58mm height allow it to be integrated into space-constrained industrial and laboratory electronic systems.

This Line Transceiver IC is targeted for use in electronic components, semiconductor line interface circuits, and various industrial communication interfaces requiring signal isolation and reliability. It is well-suited for building RS-485 line drivers and receivers in automation, control systems, and data communication modules.

This product belongs to the IL3585 series of line transceivers from NVE. Designed for surface mounting techniques in modern PCB assembly. Input type is differential allowing noise-immunity in industrial environments. Polarity of the output is non-inverting providing straightforward signal processing.

Ideal for applications requiring robust bus driving and receiving functions.

Choose this NVE IL3585E line transceiver for high-efficiency digital bus communication in industrial automation, HVAC control systems, and instrumentation. Browse EnvMart’s extensive range of semiconductor line interface ICs and related electronic components for optimized solutions.
