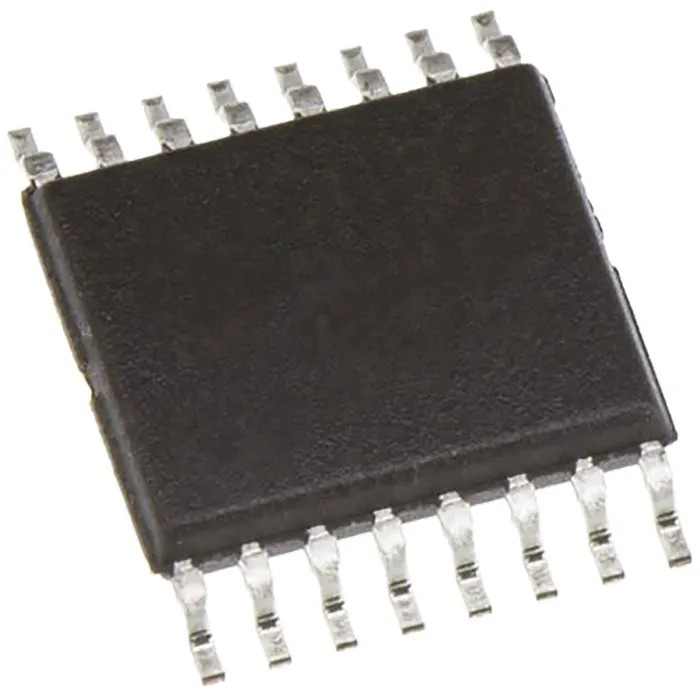

Texas Instruments RS-232 Line Transceiver 16-Pin TSSOP, Single Ended Input, 3-5.5 V Supply, 150ns Propagation TRS3221EIPW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | TRS3221EIPW |
| Width | 6.6mm |
| Mount Type | Surface |
| Series | RS232 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver IC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 709-3305Brand: Texas InstrumentsManufacturers Part No.: TRS3221EIPW |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Function | Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum Propagation Delay Time @ CL | 150ns |
| Supply Current | 10μA |
Key Features
- Operates with a maximum propagation delay of 150 nanoseconds ensuring prompt signal processing.
- Suited for surface mount applications with a compact 5.1 mm length, 6.6 mm width, and 1.2 mm height.
- Low supply current consumption of 10 microamperes minimizes power usage.
- Reliable operation within temperature range from -40°C to 85°C for industrial environments.
- Compliance with RS-232 series standards for serial communication interfacing.
- 16 pins facilitate multiple input/output connections in line transceiver IC functions.
- Automotive standard is not supported, suitable primarily for general industrial uses.
Product Description
Texas Instruments TRS3221EIPW is a high-performance RS-232 line transceiver incorporated in a 16-Pin Thin Shrink Small Outline Package (TSSOP). Designed as a single ended input transceiver, it supports a supply voltage range from 3 V minimum up to 5.5 V maximum, offering flexibility for diverse industrial and electronic system applications.
The device executes with a maximum propagation delay of 150 ns at specified load capacitance, suitable for efficient data transmission in communication interfaces. Its compact dimensions of 5.1 mm length, 6.6 mm width, and 1.2 mm height fit space-constrained surface mount boards, optimizing board layout in electronic assemblies.
Operating over a wide temperature range from -40°C to 85°C, the TRS3221EIPW is suitable for use in industrial, laboratory, and embedded control systems where environmental extremes are common. Its low supply current of 10 μA enhances power efficiency in portable and battery-operated devices.
The RS-232 compliance enables interfacing with legacy and modern serial communication equipment, making it a reliable choice for data communication and control applications in manufacturing, instrumentation, and automotive markets.
Operates at a minimum supply voltage of 3 V and a maximum of 5.5 V. Surface mount mounting with TSSOP package type for compact integration. 16-pin configuration enabling multiple channels for transmission and reception. Designed for RS-232 electrical interface standards.
Low power supply current of 10 microamperes aids in energy conservation. Robust operation over -40°C to 85°C temperature range. Applications include industrial communication, laboratory instruments, and automated machinery.
Packages like the TRS3221EIPW improve reliability and reduce assembly complexity in demanding electronic systems. Choose Texas Instruments line transceivers for trusted performance and compatibility with a broad range of electronic control and communication hardware.
Explore the full range of interface ICs by Texas Instruments available to optimize your design efficiency and system robustness at EnvMart.
Explore more products in our Line Transceiver IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5 V.
It operates within a temperature range of -40°C to 85°C.
This line transceiver has a total of 16 pins.
The maximum propagation delay time is 150 nanoseconds at specified load capacitance.
This model supports a single-ended input type.
The dimensions are 5.1 mm in length, 6.6 mm in width, and 1.2 mm in height.
It has a low supply current consumption of 10 microamperes.
Yes, it complies with RS-232 series standards for serial communication interfacing.
This model uses surface mount mounting with a TSSOP package type.
It is suitable for applications in industrial communication, laboratory instruments, and automated machinery.
The minimum supply voltage for this model is 3 V.
The country of origin for this line transceiver is India.
