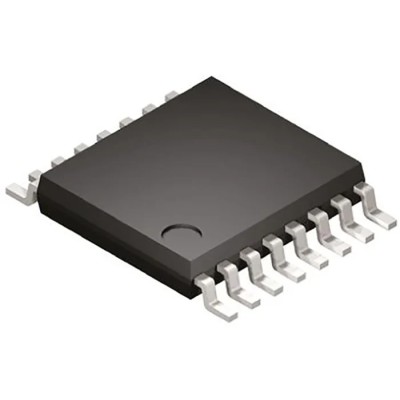

STMicroelectronics 2-Channel Line Transceiver CMOS/TTL 16-Pin TSSOP ST232BTR

STMicroelectronics ST232BTR is a 2-channel line transceiver designed to support RS-232 communication within electronic systems. Utilizing CMOS/TTL logic, this IC delivers reliable line interface functionality in a surface-mount TSSOP package with 16 pins.

The device operates within a supply voltage range of 4.5 V to 5.5 V, with low supply current consumption of 10 mA, making it suitable for efficient embedded applications. It features a maximum propagation delay of 1 microsecond ensuring prompt signal handling and supports single-ended input and CMOS/TTL output logic functions.

Measuring 5.1 mm in length, 4.48 mm in width, and 1.2 mm in height, the compact design is optimized for surface mount applications, enhancing PCB space utilization. The wide operating temperature range from -40°C to 85°C enables deployment in demanding industrial and commercial environments.

This line transceiver is widely used in RS-232 line driver and receiver interfacing, suitable for industrial communication, telecommunications, instrumentation, and embedded systems requiring robust serial data exchange.

Absence of automotive compliance standards confirms non-automotive usage focus, while the TSSOP package supports automated PCB assembly processes efficiently. This product reflects STMicroelectronics' commitment to offering high-quality semiconductor components for interface IC applications.

Supports 2 communication channels for full-duplex operation. CMOS/TTL compatible input and output logic levels ensure easy interfacing. Operates with a minimum supply voltage of 4.5 V and maximum of 5.5 V. Maximum propagation delay is 1 microsecond ensuring fast data transmission.

Designed for surface mounting with a compact 5.1 mm length and 4.48 mm width footprint. Wide operating temperature range from -40°C to 85°C for industrial applications. Supply current consumption is low at 10 mA, suitable for power-efficient designs.

Package type is TSSOP offering ease of PCB assembly and space savings. Ideal for interface in RS-232 drivers/receivers, line interface circuits, and embedded communication modules. Explore more STMicroelectronics Line Interface ICs and semiconductor solutions on EnvMart for your industrial, laboratory, manufacturing, and electronics development needs.
