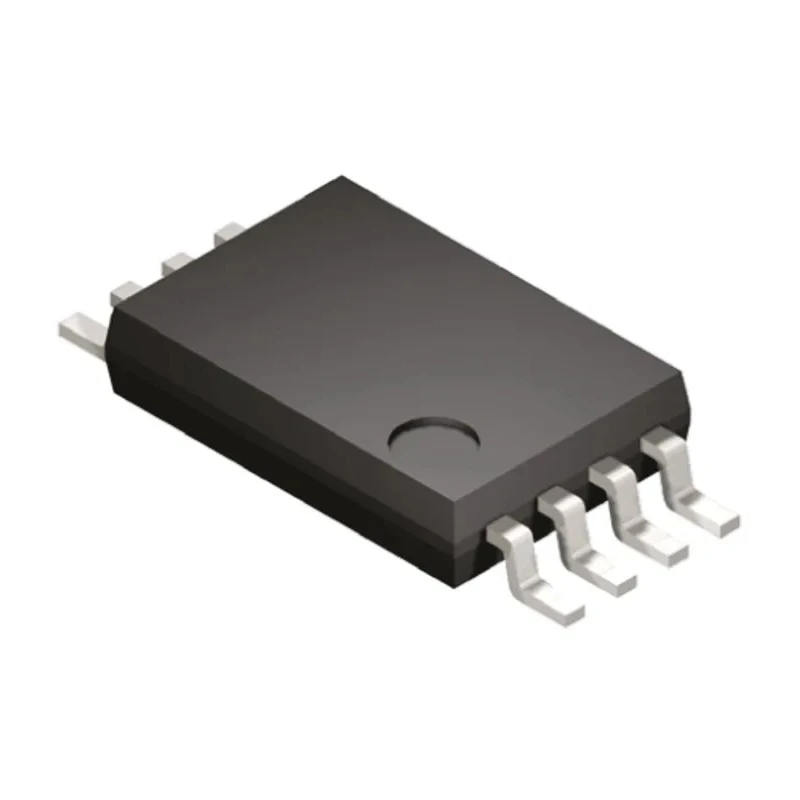

onsemi Differential Line Driver, ECL Output, Surface Mount TSSOP 8-Pin MC100EP16DTG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.75mm |
| Length | 5mm |
| Model | MC100EP16DTG |
| Width | 6.2mm |
| Mount Type | Surface |
| Output type | ECL |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Differential Line Driver |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Logic Family | MC100 |
| Logic Function | Driver & Receiver |
| Minimum Supply Voltage | 6V |
| Maximum High Level Output Current | 50mA |
| Maximum Propagation Delay Time @ CL | 300ps |
| Supply Current | 38mA |
| Maximum Low Level Output Current | 100mA |
Key Features
- Differential line driver with ECL output in 8-pin TSSOP package.
- Single channel device from onsemi MC100 logic family.
- Operates at minimum supply voltage of 6V and 38mA supply current.
- Maximum propagation delay time of 300ps for fast signal transmission.
- Operating temperature range from -40°C to 85°C for industrial use.
- High-level output current up to 50mA and low-level output current up to 100mA.
- Compact surface mount design measuring 5mm x 6.2mm x 1.75mm.
- Designed for use in clock drivers, signal drivers, and buffer applications.
Product Description
onsemi MC100EP16DTG is a high-performance differential line driver IC designed for use in advanced electronic systems requiring precise signal driving capabilities. It belongs to the MC100 logic family, featuring single-channel differential input and Emitter Coupled Logic (ECL) output that enables fast and reliable signal transmission.
The device is housed in an 8-pin TSSOP surface mount package with compact dimensions of 5mm length, 6.2mm width, and 1.75mm height, facilitating efficient PCB space utilization. The MC100EP16DTG operates at a minimum supply voltage of 6V and draws a typical supply current of 38mA, optimized to deliver high-speed switching with low power consumption.
It achieves a maximum propagation delay time of 300ps at load capacitance, making it suitable for timing-sensitive applications. The output current specifications with a maximum of 50mA at high level and 100mA at low level provide sufficient drive strength for interfacing with other high-speed components.
Designed to operate reliably in industrial temperature ranges from -40°C to 85°C, this differential line driver is ideal for use in various industrial, communication, and signal-processing environments. Though it lacks automotive certification, it suits many electronics manufacturing and industrial uses requiring compact, surface-mount ECL drivers.
Part of onsemi's MC100 logic family delivering stable, fast logic functions. Offers driver and receiver logic function with differential input and ECL output. Surface mount TSSOP 8-pin package constructed for modern PCB assembly.
Wide temperature range, robust output currents, and optimized propagation delay. Targets applications including industrial signal drivers, clock drivers, and buffer circuits. This component is an essential building block in electronic interface systems and available through EnvMart for industrial and commercial electronics production and repair.
Explore more products in our Line Interface IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum propagation delay time for the MC100EP16DTG is 300ps, making it suitable for fast signal transmission applications.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
This differential line driver can provide a maximum high-level output current of 50mA and a low-level output current of up to 100mA.
The MC100EP16DTG requires a minimum supply voltage of 6V to operate effectively.
This model has compact dimensions of 5mm in length, 6.2mm in width, and 1.75mm in height.
It is housed in a TSSOP 8-pin surface mount package, which is designed for efficient PCB space utilization.
The typical supply current for this differential line driver is 38mA.
The MC100EP16DTG belongs to the MC100 logic family, which is known for its stable and fast logic functions.
This differential line driver supports a differential input type, allowing for precise signal transmission.
It is designed for use in clock drivers, signal drivers, and buffer applications within electronic systems.
The maximum operating temperature for the MC100EP16DTG is 85°C, suitable for various industrial applications.
This model features a single channel design, making it a straightforward solution for differential signaling.
