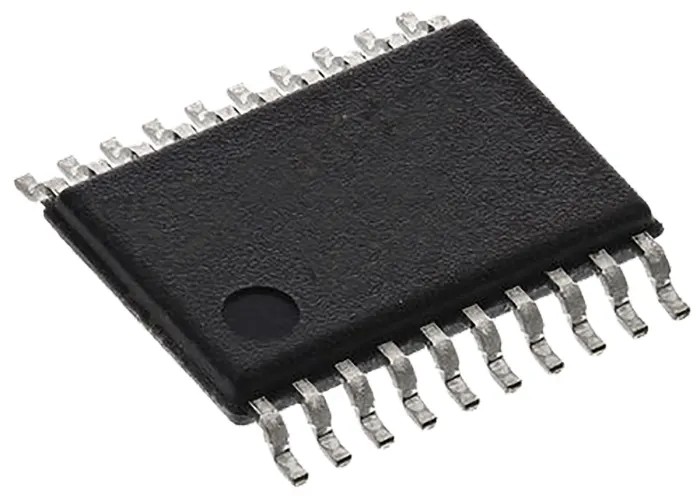

MaxLinear 2-Channel Line Transceiver TTL 3 State Inverting 20-Pin TSSOP SP3223ECY-L

Free Delivery in India | Lowest Global Shipping Charges

MaxLinear 2-Channel Line Transceiver TTL 3 State Inverting 20-Pin TSSOP SP3223ECY-L

Name: MaxLinear 2-Channel Line Transceiver TTL 3 State Inverting 20-Pin TSSOP SP3223ECY-L
Brand: MaxLinear
SKU: 367346
Price: 1.89 USD
Availability: InStock



Category Line Interface IC Brand MaxLinear Condition New

Specifications

Country of Origin	India
Brand	MaxLinear
Height	2mm
Length	7.5mm
Model	SP3223ECY-L
Width	5.6mm
Mount Type	Surface
Output type	TTL, 3 State
Input Type	Single Ended
Maximum Operating Temperature	70°C
Package Type	TSSOP
Minimum Operating Temperature	0°C
Polarity	Inverting
IC Type	Dual Channel Transceiver
Number Of Channels	2
Pin Count	20
Maximum Supply Voltage	5.5V
Logic Family	CMOS/TTL
Logic Function	Line Transceiver
Minimum Supply Voltage	3V
Maximum Propagation Delay Time @ CL	150ns
Supply Current	1mA

Key Features

Operates with CMOS/TTL logic family suitable for serial communication.
Supports two channels with single-ended input and TTL, 3-state output.
Has a 20-pin TSSOP surface mount package for compact PCB design.
Functions from a minimum supply voltage of 3V up to 5.5V.
Maximum propagation delay time is 150 nanoseconds for fast data transmission.
Operates reliably within 0°C to 70°C ambient temperature range.
Low supply current of 1 mA for efficient power usage.
Designed for RS-232 line driver and receiver applications with electrostatic discharge protection.

Product Description

MaxLinear SP3223ECY-L is a high-performance 2-channel line transceiver designed for serial communication applications requiring TTL level signaling and 3-state outputs. This dual channel transceiver supports inverting polarity operation and is housed in a 20-pin TSSOP surface mount package, making it suitable for compact electronic circuits.

The device is built on CMOS/TTL logic family technology and operates over a wide supply voltage range from 3 V to 5.5 V, ensuring flexibility across various power supply conditions. It features a low supply current of 1 mA and a maximum propagation delay time of 150 ns at capacitive loading, enabling efficient and rapid data transfer.

Engineered to operate reliably within a temperature range of 0°C to 70°C, the SP3223ECY-L is ideal for industrial and commercial electronics applications including RS-232 line driver and receiver functions. The compact 7.5 mm by 5.6 mm footprint with 2 mm height supports space-saving PCB layouts without compromising performance.

Its inverting output and single-ended input facilitate compatibility with a wide variety of interface circuits. The surface mount TSSOP package supports automated assembly and improved manufacturing efficiency.

CMOS/TTL logic family for robust signal integrity. Dual channel transceiver with single-ended input and TTL, 3-state output. Wide supply voltage operation from 3 V to 5.5 V. Low power supply current of 1 mA. Fast propagation delay of 150 ns suitable for RS-232 applications.

Compact 20-pin TSSOP surface mount package. Operating temperature from 0°C to 70°C ensures versatility in embedded systems. Ideal for line interface and communication systems in industrial, commercial, and embedded electronics.

This model, SP3223ECY-L from MaxLinear, is engineered to improve production efficiency by allowing direct insertion into machinery and electronic assemblies. It is a reliable and industry-compatible component widely used in semiconductor applications related to serial data transmission.
