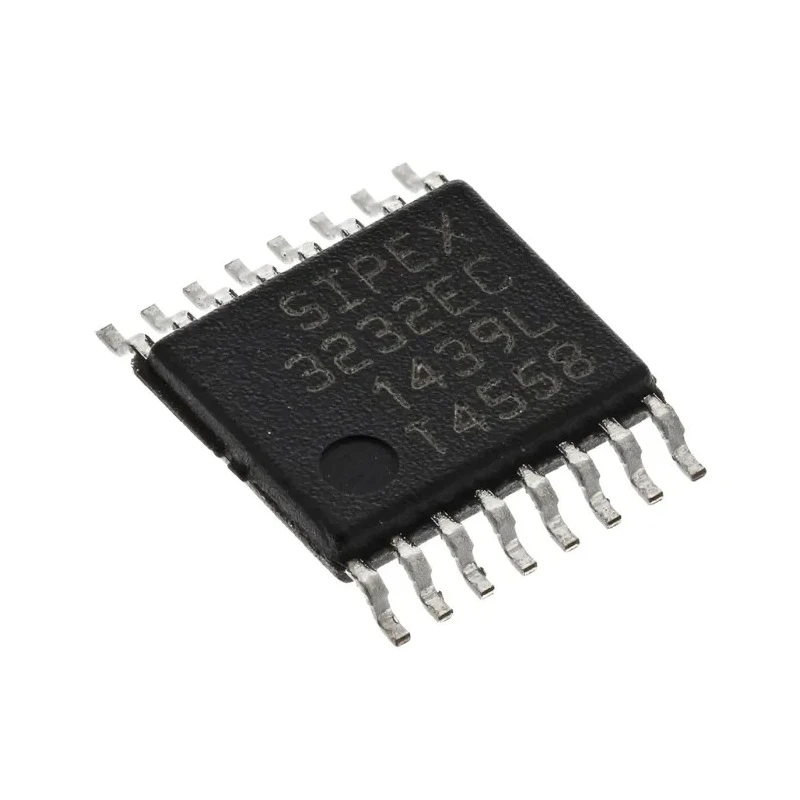

MaxLinear 2-Channel Line Transceiver TTL Inverting 16-Pin TSSOP SP3232ECY-L
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | SP3232ECY-L |
| Width | 4.5mm |
| Mount Type | Surface |
| Output type | TTL |
| Series | SP3232E |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | 0°C |
| Polarity | Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum Propagation Delay Time @ CL | 1ms |
| Supply Current | 1mA |
Key Features
- Operates with minimum supply voltage of 3V and maximum of 5.5V.
- Contains 2 channels designed for RS-232 serial communication.
- Supports single-ended input and TTL output with inverting polarity.
- Compact dimensions of 5.1mm length, 4.5mm width, and 1.2mm height.
- Operating temperature range from 0°C to 70°C for reliable performance.
- Low supply current consumption of approximately 1mA ensures energy efficiency.
- Pin compatible with popular industry standard devices for easy replacement.
- RoHS compliant and suitable for industrial and electronic applications.
Product Description
MaxLinear SP3232ECY-L is a 2-channel line transceiver integrated circuit featuring TTL logic with inverting capabilities, housed in a compact 16-pin TSSOP surface-mount package. This IC functions effectively within a supply voltage range of 3V to 5.5V and supports RS-232 serial communication standards, making it well-suited for a variety of electronic and industrial interface applications.
Manufactured to CMOS/TTL logic family specifications, the device handles single-ended inputs and provides TTL outputs with an inverting polarity. Its compact size - 5.1mm length, 4.5mm width, and 1.2mm height - supports dense board designs. The device operates reliably over temperatures from 0°C up to 70°C while maintaining a low supply current of about 1mA, enhancing power efficiency in embedded and system-level applications.
This line transceiver is pin-compatible with popular industry-standard devices, promoting straightforward drop-in replacement with minimal redesign. It is suitable for use in communications equipment, embedded systems, and interface electronics requiring RS-232 compliant driver and receiver functions.
Though it does not include specific automotive standards or approvals, its robust performance and compliance with RoHS directives make it a versatile option for electronic component assemblies, laboratory instrumentation, and manufacturing controls.
Operates from a single 3 to 5.5V supply voltage. Supports data rates typically required by RS-232 communication. Robust ESD protection enhances device longevity. Compact 16-pin TSSOP package facilitates surface mounting.
Suitable for industrial, commercial, and laboratory interface circuits. Supplies 2 independent transceiver channels. Manufactured to CMOS/TTL logic family standards. Low power consumption with 1mA supply current. Wide operating temperature range enhances versatility.
For detailed design integration, consult technical documentation and datasheets available from MaxLinear. This product listing ensures a quality solution for your interface IC needs, backed by MaxLinear's expertise in semiconductor components.
Explore more products in our Line Interface IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a minimum supply voltage of 3V and a maximum of 5.5V.
It supplies 2 independent transceiver channels designed for RS-232 communication.
The dimensions are 5.1mm in length, 4.5mm in width, and 1.2mm in height.
It provides TTL (Transistor-Transistor Logic) outputs with inverting polarity.
The operating temperature range is from 0°C to 70°C.
It supports single-ended input for communication.
The supply current consumption is approximately 1mA, which enhances energy efficiency.
Yes, it is RoHS compliant, making it suitable for various electronic applications.
It is housed in a compact 16-pin TSSOP (Thin Shrink Small Outline Package).
This line transceiver is manufactured to CMOS/TTL logic family specifications.
The maximum propagation delay time is 1ms at the specified load capacitance (CL).
Yes, it is pin compatible with popular industry-standard devices, facilitating easy replacement.
