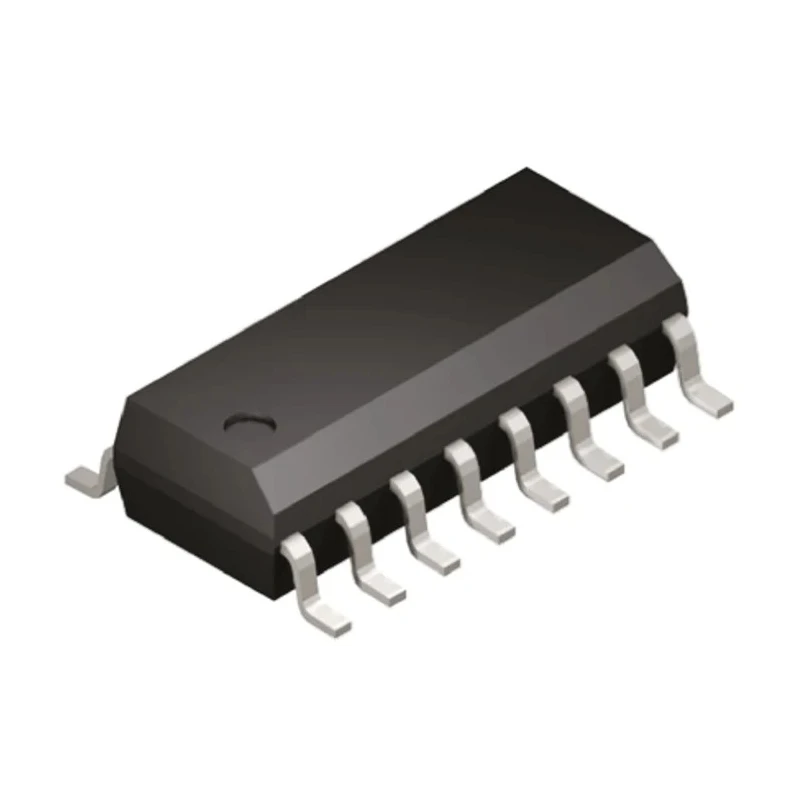

MaxLinear 2-Channel Line Transceiver TTL/CMOS RS232 Inverting 16-Pin SOIC

MaxLinear SP232ACN-L/TR is a 2-channel line transceiver designed for TTL/CMOS logic families, supporting RS232 serial communication standards with inverting outputs. The device is housed in a 16-pin SOIC surface mount package allowing compact and efficient circuit design integration.

This line transceiver operates from a supply voltage ranging between 4.5V and 6V and features a maximum propagation delay of 3.0 microseconds ensuring rapid signal conversion suitable for high-speed data communications.

The transceiver supports two serial communication channels and offers inverting polarity outputs compliant with RS-232 serial protocols. It features low supply current of 5mA which helps reduce power consumption in embedded and industrial applications.

Its operational temperature range of -40°C to 85°C makes it ideal for industrial, electronic, and embedded system applications where temperature stability and reliability are essential.

The device complies with important industry standards including RS-232F, ITU V.28, and EIA/TIA-232, facilitating interoperability and system compatibility. The SP232ACN-L/TR is pin- and spec-compatible with many popular devices, enabling direct drop-in replacements and simplifying upgrades or repairs.

Operates at a supply voltage from 4.5 V to 6 V with low power consumption. Channels: 2 independent serial communication channels available. Output types include TTL/CMOS logic levels and RS232 signal standards. Package: Compact 16-pin SOIC surface mount for PCB space efficiency.

Temperature range: -40 to 85 degrees Celsius, supporting rugged environments. Maximum propagation delay time of 3 microseconds ensures fast data processing. Supports inverting logic outputs for RS232 communication protocol compliance.

Standards and approvals: RS-232F, RoHS compliant, ITU V.28, EIA/TIA-232 standards. Compatible with both TTL and CMOS logic families for versatile interfacing. Ideal for industrial, communication, electronic, and embedded systems applications.

MaxLinear devices like the SP232ACN-L/TR simplify the implementation of serial communication interfaces in systems requiring RS232 standard voltage levels and logic conversions. This transceiver is widely used in industrial, manufacturing, and electronic test equipment where reliable data transmission is critical.
