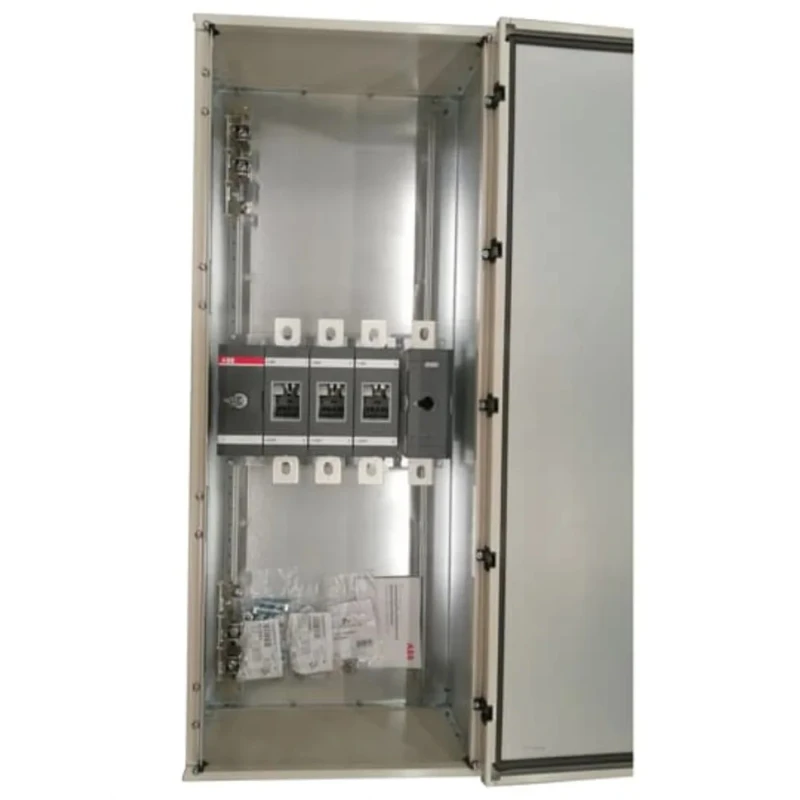

ABB 3-Pole Switch Disconnector, IP65 Rated, 720A Current, 40W Switching Power, Black Handle OT800KLUU3BZ

Free Delivery in India | Lowest Global Shipping Charges

ABB 3-Pole Switch Disconnector, IP65 Rated, 720A Current, 40W Switching Power, Black Handle OT800KLUU3BZ



Category Switch Disconnector Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	400mm
Model	IP65
Depth	230mm
IP Rating	IP65
Width	1m
Series	OT
Minimum Operating Temperature	0°C
Switching Current	720A
Terminal type	Screw Clamp Terminal
Handle Colour	Black
Number of Poles	3
Standards/Approvals	IEC 60947-1-3
Switching AC Voltage	1000V ac
Switching Power	40W

Key Features

The switch disconnector features a robust galvanised steel enclosure with polyester coating.
It is rated for outdoor use with resistance to UV light and ingress protection IP65.
Includes a padlockable black handle compatible with 3 padlocks.
Supports auxiliary contacts and screw clamp terminal type connections.
Designed to handle switching current up to 720A and AC voltage up to 1000V.
Safety features include built-in gas pressure relief and interlockable door cover.
Suitable for industrial electrical isolation applications with IEC 60947-1-3 standards compliance.
Minimum operating temperature of 0°C ensures performance in varied environments.

Product Description

ABB OT800KLUU3BZ 3-pole switch disconnector offers industrial-grade electrical isolation with a high 720A switching current and IP65 rated enclosure suitable for outdoor and demanding environments.

The enclosure is constructed from galvanised steel with a protective polyester coating, ensuring durability against UV light and weather ingress protection. The built-in gas pressure relief system safeguards users in the unlikely event of an internal arc.

The device features a black padlock-compatible handle, allowing secure lockout with up to 3 padlocks for enhanced safety and compliance with lockout-tagout procedures. The door is earthed via its hinges and includes an interlocked cover which can be bypassed for thermographing operations.

Designed for flexibility, the enclosure allows various cable entry options including blank, ring-flange, or C-flange types with multiple cable configurations such as top/bottom or bottom/bottom entry.

The unit supports up to 2 auxiliary contacts (2NO/2NC), enhancing its functionality within control circuits. Terminals use screw clamp connections for reliable electrical contact.

Operating parameters include a rated operational voltage of 1000V AC, switching power of 40W, and a minimum operating temperature of 0°C, suitable for standard industrial environments. Its dimensions are 400 mm length, 1 m width, and 230 mm depth.

This switch disconnector complies with IEC 60947-1-3 standards and is ideally suited for electrical isolation in industrial, manufacturing, automation, and commercial electrical installations.

Country of origin is Finland, reflecting high manufacturing standards and quality. The switch features a galvanised steel enclosure with polyester coating for robust outdoor use. IP65 rated for dust tight and water jet protection.

Padlock compatible handle allows locking with up to 3 padlocks for safety. Supports screw clamp terminal connections and auxiliary contacts. Designed to operate at 720A switching current and 1000V AC voltage. Includes inbuilt gas pressure relief for internal arc safety.

Complies with IEC 60947-1-3 industrial standards. Dimensions: 400 mm length, 1 m width, 230 mm depth. Explore the wide range of ABB switches and Switch Disconnectors to suit various industrial electrical control applications on EnvMart.
