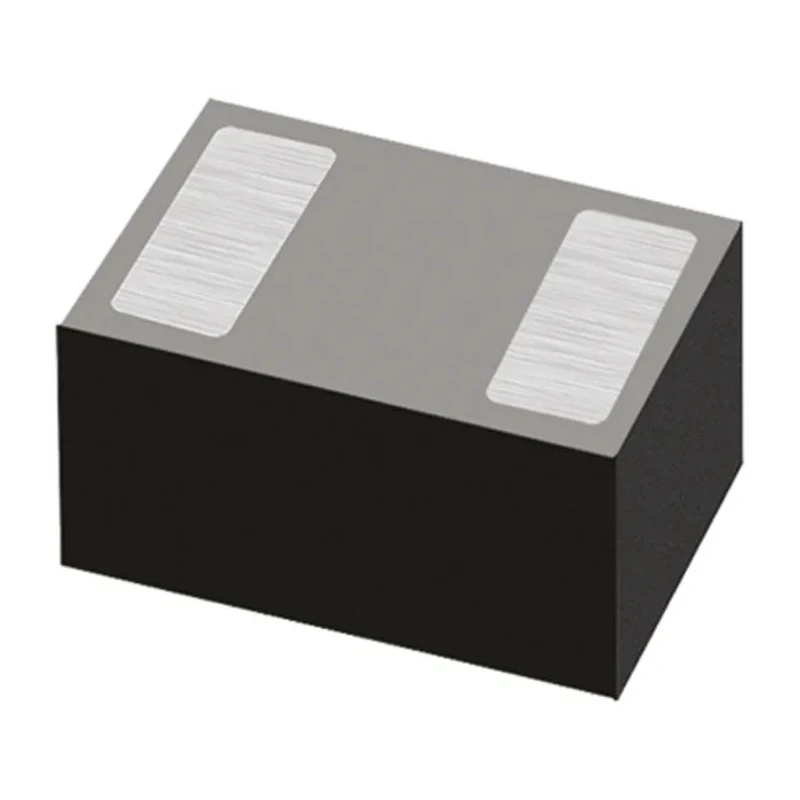

DiodesZetex 1, 3.6 V General Purpose Zener Diode Surface Mount 250 mW 6% Tolerance 2-Pin X1-DFN Package BZT52C3V6LP-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 0.53mm |
| Length | 1.08mm |
| Model | BZT52C3V6LP-7 |
| Mount Type | Surface |
| Series | BZT52C3V6LP |
| Maximum Operating Temperature | 150°C |
| Package Type | X1-DFN |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 250mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 3.6V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 90Ω |
| Typical Voltage Temperature Coefficient | -3.5mV/°C |
Key Features
- General purpose zener diode suitable for voltage regulation applications.
- Surface mount design ideal for compact electronic assemblies.
- Maximum power dissipation of 250 mW for efficient energy handling.
- Nominal zener voltage of 3.6 V with ±6% tolerance for precise voltage reference.
- Operating temperature range from -65°C to 150°C for broad environmental suitability.
- Low maximum reverse leakage current of 5 µA minimizing power loss in reverse bias.
- Complies with automotive standard AEC-Q101 ensuring reliable performance in automotive electronics.
- Compact dimensions with height 0.53 mm and length 1.08 mm enable space-saving designs.
Product Description
DiodesZetex BZT52C3V6LP-7 is a general purpose zener diode designed for use in electronic circuits requiring voltage regulation and reference. Featuring a nominal zener voltage of 3.6 V and ±6% tolerance, this diode provides stable voltage control with a maximum power dissipation of 250 mW. The device employs a surface mount X1-DFN 2-pin package, optimized for modern compact PCB assemblies.
Operating reliably across a wide temperature range from -65°C to 150°C, the BZT52C3V6LP-7 is well-suited for automotive and industrial applications where environmental tolerance is critical. The diode has a maximum reverse leakage current of 5 µA which reduces energy loss when reverse biased, thus enhancing circuit efficiency.
The device meets the stringent automotive AEC-Q101 standard, certifying its quality and reliability for automotive electronics and high-reliability industrial uses. The compact physical dimensions of 0.53 mm height and 1.08 mm length allow integration in space-constrained areas without compromising performance.
The typical voltage temperature coefficient of -3.5 mV/°C assists in maintaining voltage stability across varying ambient temperatures. Together with a 2-pin configuration, this zener diode is suitable for power conditioning, voltage regulation, and voltage reference roles in a variety of circuit designs.
General purpose zener diode with 3.6 V nominal zener voltage. Surface mount 2-pin X1-DFN package suitable for compact applications. 250 mW maximum power dissipation for reliable energy handling. Wide operating temperature range from -65°C to 150°C.
Low reverse leakage current of 5 µA reducing power losses. Automotive standard AEC-Q101 compliant for robust automotive performance. Compact size with 0.53 mm height and 1.08 mm length. Typical voltage temperature coefficient -3.5 mV/°C for consistent voltage output.
Ideal for voltage regulation, reference, and protection in electronic circuits.
This Zener Diode from DiodesZetex is a dependable component for industrial, automotive, laboratory, and manufacturing applications requiring precise voltage control. Discover more semiconductor components and accessories optimized for your electronics projects and industrial needs at EnvMart.
