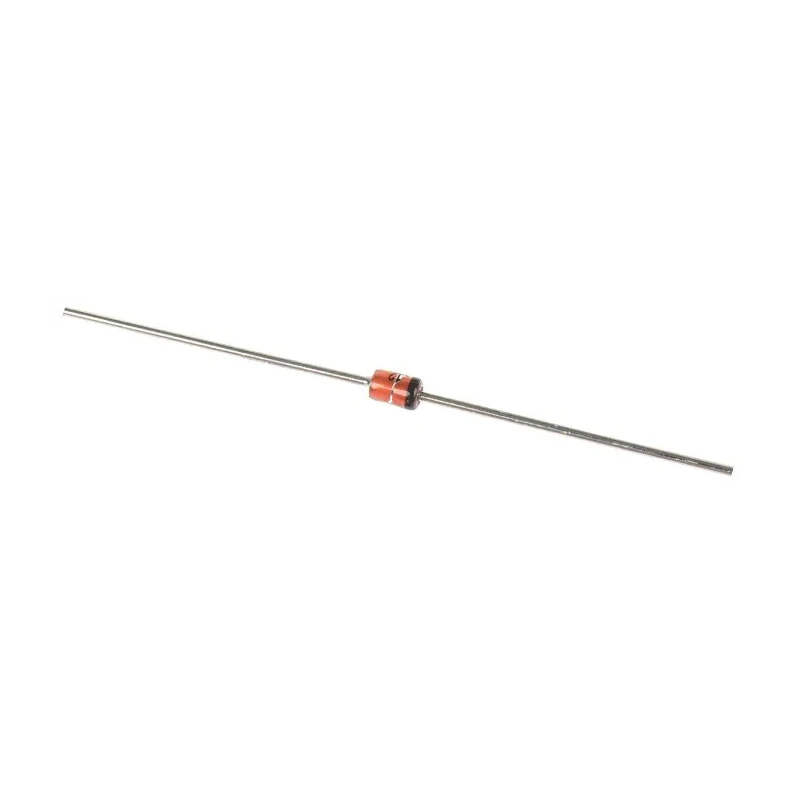

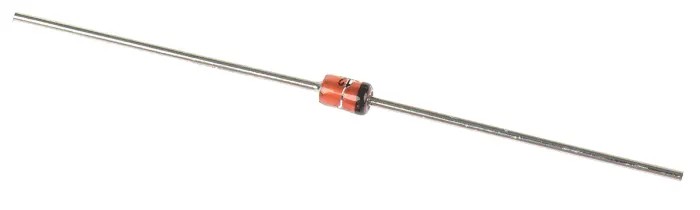

Vishay 12 V 1.3 W General Purpose Zener Diode Single Through Hole 2-Pin DO-41 ZPY12-TAP

Vishay ZPY12-TAP is a General Purpose Zener Diode with a nominal zener voltage of 12 V and maximum power dissipation of 1.3 W. Packaged in a 2-pin DO-41 through hole configuration, this diode is designed primarily for stabilizing and clipping circuits in various electronic applications.

The diode features a ±5% voltage tolerance, making it reliable for precise voltage regulation requirements. It operates effectively over a wide temperature range from -55°C to 175°C, ensuring performance stability in harsh industrial environments.

The device supports a test current of 50 mA and a maximum zener impedance of 7 ohms, with a minimal maximum reverse leakage current of 500 nA, contributing to efficient circuit protection.

Compliance with RoHS standards highlights the environmental considerations of this component, suitable for modern electronic manufacturing processes. Its compact length of 4.1 mm and through-hole DO-41 package allows for straightforward mounting on printed circuit boards.

This diode operates at a nominal voltage of 12 V. Has a maximum power dissipation of 1.3 W for robust performance. Features ±5% zener voltage tolerance ensuring voltage stability. Wide temperature range operation from -55°C to 175°C.

Low reverse leakage current of 500 nA for efficient protection. Test current rating is 50 mA suitable for typical applications. Maximum zener impedance is 7 ohms, supporting circuit integrity. Standard DO-41 through-hole package for easy integration.

Complies with RoHS environmental standards. Manufactured in China.

Ideal for use in industrial electronics, power supply regulation, communication equipment, and various stabilization circuits, the Vishay ZPY12-TAP diode is versatile for professional and commercial applications.
