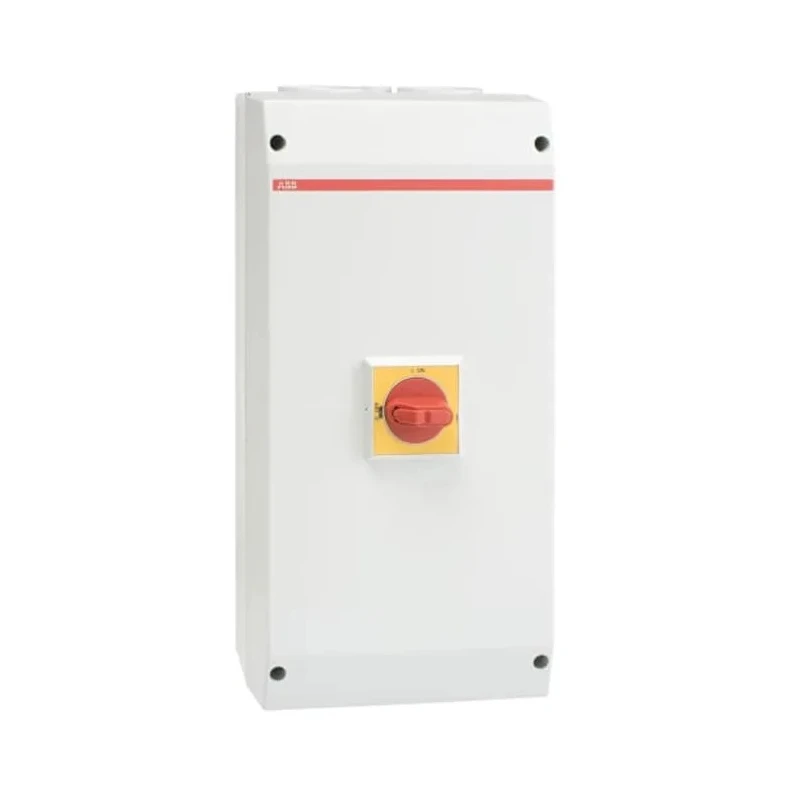

ABB 3-Pole Switch Disconnector IP65, 100A, 37 kW, Screw Clamp Terminal, OTP Series

Free Delivery in India | Lowest Global Shipping Charges

ABB 3-Pole Switch Disconnector IP65, 100A, 37 kW, Screw Clamp Terminal, OTP Series



Category Switch Disconnector Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	400mm
Model	IP65
Depth	140mm
IP Rating	IP65
Width	200mm
Series	OTP
Minimum Operating Temperature	0°C
Switching Current	100A
Terminal type	Screw Clamp
Handle Colour	Red, Yellow
Number of Poles	3
Standards/Approvals	IEC 60947-1
Switching AC Voltage	380, 415V ac
Switching Power	37kW

Key Features

Constructed with rigid glass reinforced polycarbonate enclosure for durability and UV protection.
Suitable for indoor and outdoor use with protection against low-pressure water jets.
Features screw clamp terminals for secure wiring connections.
Padlock compatible handle allowing locking with up to three padlocks for safety.
Designed for 5-wire systems with fixed neutral and PE terminals.
Rated operational voltage up to 750V with switching power of 37 kW.
Includes auxiliary contacts and complies with IEC 60947-1 standards.
Compact size with dimensions of 400mm length, 200mm width, and 140mm depth.

Product Description

ABB 1SCA022812R3430 3-Pole Switch Disconnector from the OTP series is engineered for robust electrical isolation applications in industrial, commercial, and utility installations. The rigid glass reinforced polycarbonate enclosure provides excellent mechanical strength and UV protection, allowing it to be installed both indoors and outdoors with an IP65 rating that safeguards against low-pressure water jets.

This switch disconnector is designed for a 5-wire system including fixed neutral and PE terminals, which enhances safety and reliability. The screw clamp terminal connections ensure secure and robust wiring attachment, making installation straightforward.

The handle is color-coded in red and yellow for easy visibility and is padlock compatible, allowing for up to three padlocks to be attached, facilitating multiple-point lockout/tagout procedures. The cover is interlocked to prevent accidental operation.

Rated for a switching current of 100A at operational voltages up to 750V, it is suitable for high power switching up to 37 kW. It also includes auxiliary contacts to facilitate signaling and control functions. The product complies with IEC 60947-1 standards ensuring it meets international safety and performance criteria.

With dimensions of 400mm length, 200mm width, and 140mm depth, this compact switch disconnector is ideal for panel mounting in control rooms, switchboards, and distribution panels across manufacturing plants, water treatment facilities, HVAC systems, and industrial automation setups.

Constructed from UV protected, rigid glass reinforced polycarbonate enclosure. IP65 rated for protection against dust and water jets. Screw clamp terminal type ensures reliable connections. Padlock compatible handle allows secure lockout procedures.

Suitable for 5-wire systems with fixed neutral and PE terminals. Rated for 100A switching current and 37 kW switching power. Includes up to 2 auxiliary contacts (2NO/2NC possible). Complies with IEC 60947-1 standards. Operating temperature from 0°C upwards.

Dimensions: 400mm (L) x 200mm (W) x 140mm (D).

This ABB Switch Disconnector is an excellent choice for ensuring safety and reliability in electrical isolation and control applications across various industrial, laboratory, manufacturing, and water treatment environments. Browse the Electronics & Electricals section at EnvMart for compatible accessories and related products from ABB.
