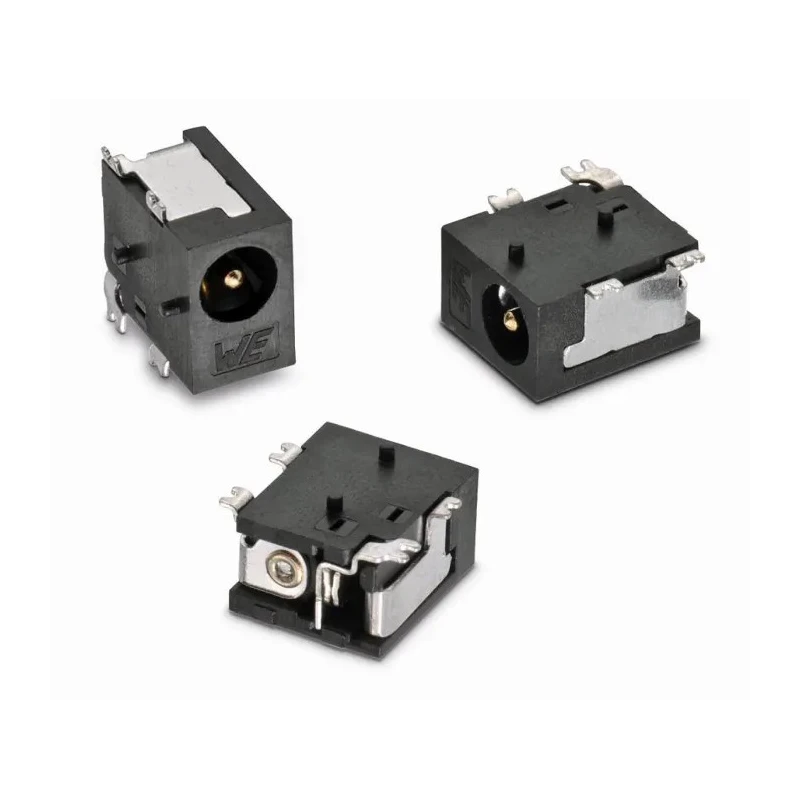

Wurth Elektronik WR-DC Right Angle DC Socket 5A 18V PCB Mount Length 8 mm Gold Tin 694102107102

Wurth Elektronik 694102107102 Right Angle DC Socket is a reliable PCB-mounted female DC power socket rated at 5 amperes and 18 volts, with a length of 8 mm. Its low-profile SMT mount design and right angle orientation make it ideal for compact electronic circuitry requiring efficient power connections.

This connector incorporates an internal normally closed single switch, providing functionality suitable for various electronic applications. The contacts are made from copper alloy and plated with gold and tin to ensure superior conductivity and corrosion resistance. The termination type is solder, facilitating secure and durable PCB attachment.

The housing is constructed from black UL94-V0 PA9T material, offering flame retardant properties essential for safety compliance in industrial and commercial electronic assemblies. Board guides at the base assist in accurate placement during PCB assembly, along with four soldering pads securing the connector firmly.

Key physical dimensions include an outside diameter of 3.5 mm, inside diameter of 1.05 mm, a pin diameter of 2 mm, and a width of 9 mm. These precision measurements align with industry standards for DC socket connectors.

This right angle DC socket is extensively used in industrial electronics, laboratory equipment, power supply units, and other manufacturing applications requiring reliable power input connections. It supports applications in automotive electronics, telecommunications, and embedded system devices.

Right angle orientation facilitates compact PCB layouts. Features a length of 8 mm and barrel diameter of 3.9 mm. Internal normally closed single switch enhances functionality. Contact material is high-quality copper alloy with gold and tin plating.

Termination by solder ensures reliable electrical connection. Black UL94-V0 PA9T housing provides fire retardant properties. Board guides aid precise PCB positioning with four soldering pads. Pin diameter measures 2 mm supporting robust connectivity.

Compatible with SMT mount low profile designs.
