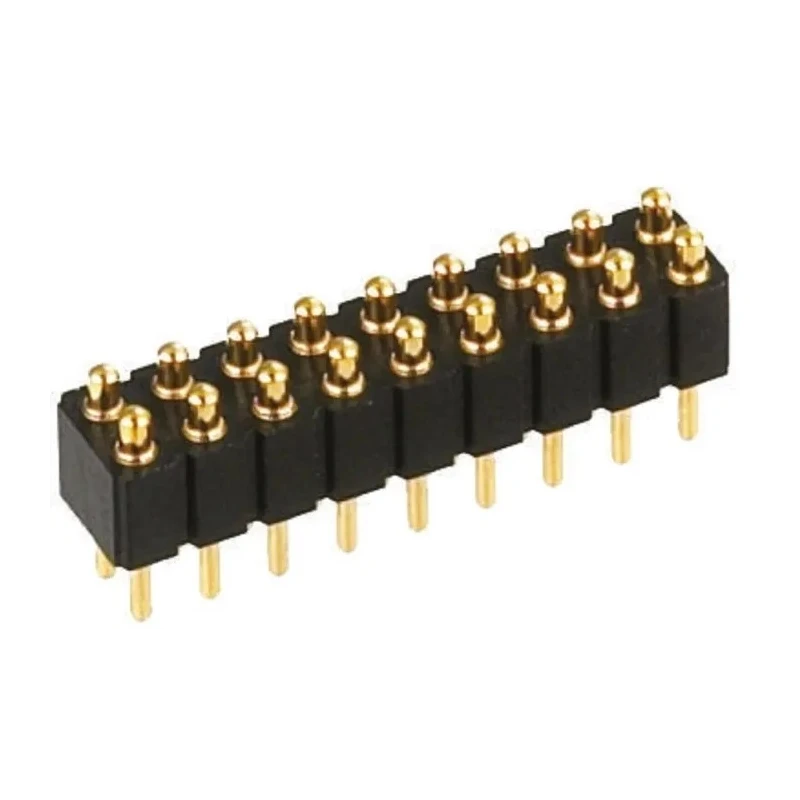

Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector, 10 Contacts, 2.54 mm Pitch, 2 Row 813-S1-010-10-014101

Preci-Dip 813-S1-010-10-014101 is a high-quality spring loaded connector designed for through hole mounting in printed circuit boards. This connector series features 10 male contacts arranged in 2 rows with a 2.54 mm pitch, delivering dependable connectivity in industrial and laboratory electronics applications.

The housing is made from fibreglass reinforced polyethylene terephthalate providing mechanical strength and electrical insulation. Contacts employ brass material with gold plating, offering excellent corrosion resistance and maintaining low contact resistance to ensure signal integrity, even under vibration or movement.

Operating over a wide temperature range from -55°C up to 125°C, this connector is suitable for demanding environments. Its solder termination type facilitates stable and secure mounting on PCBs. Rated for 150 volts and 3.5 amperes, it supports moderate power electronics tasks.

The shrouded design enhances protection by preventing accidental short circuits and ingress of debris. Compliant with UL 94V-0 flame retardant standard, it assures safety and reliability. The spring loaded contacts maintain consistent electrical connection and compensate for mechanical tolerances, making it an excellent alternative to conventional connection methods.

Typical industrial uses include high-reliability PCB interfaces, measurement and control equipment connectors, automation gear assemblies, and other industrial and manufacturing electronics requiring robust multi-point connection.

Constructed with fibreglass reinforced polyethylene terephthalate housing for durability. Spring-loaded brass contacts plated with gold ensure low, stable electrical resistance. Operates reliably within temperature range of -55°C to 125°C.

Solder termination and male contact gender suitable for PCB applications. Voltage rating of 150V and current rating of 3.5A for efficient power handling. Shrouded orientation provides protection against accidental short circuit and contamination.

Complies with UL 94V-0 standard for flame retardancy. Ideal for industrial electronics, manufacturing, and power connector applications requiring precision and reliability.

This Preci-Dip 813 series connector exemplifies precise, reliable multi-contact electrical connections for PCB mounting. Explore more PCB Connectors and related electronics components at EnvMart for a full range of industrial-grade solutions.
