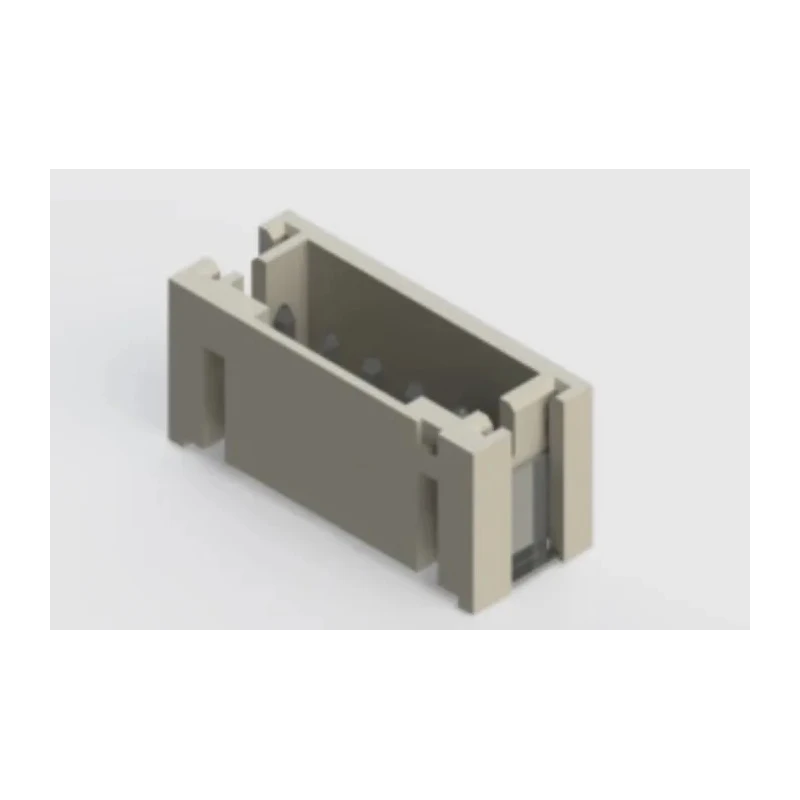

EDAC 140 Series Vertical Surface PCB Header 5 Contacts 2 mm Pitch 1 Row Shrouded 140-505-417-011

EDAC 140-505-417-011 is a high-quality vertical surface PCB header designed for wire-to-board applications requiring 5 contacts at a 2 mm pitch in a single row. Manufactured with a shrouded polyamide 9T housing, this connector offers robust flame retardant properties (UL94V-0) and protection against accidental damage while ensuring secure mating.

The contacts are crafted from brass with tin plating, providing excellent electrical conductivity and corrosion resistance, critical for maintaining reliable signal integrity in electronic devices. Designed for surface mount soldering, the connector facilitates efficient PCB assembly and strong mechanical retention on the board.

Rated for a current of 2 amperes and an operating voltage of up to 100 volts, it operates reliably across a wide temperature range from -40°C to 105°C, making it suitable for varied industrial and commercial electronic applications. Its vertical orientation and single-row design enable compact layouts in dense electronic assemblies.

This product complies with RoHS standards, validating its material safety and environmental friendliness. The connector is ideal for high-density internal wiring, enabling effective electrical connections within electronic components, power supplies, and control systems used in industrial, laboratory, and manufacturing environments.

The connector features a shrouded design ensuring secure mating and protection. Housing is made of Polyamide 9T rated UL94V-0 for flame retardancy. Contact material is brass with tin plating for excellent conductivity and corrosion resistance.

Designed for surface mount with solder termination for PCB assembly. Operates safely between -40°C to 105°C temperature range. Supports a current rating of 2 A and voltage rating of 100 V. Connector orientation is vertical with 1 row configuration for compact PCB layouts.

Compliance with RoHS standards ensures environmental safety and material compliance. Suitable for high-density internal wiring in electronic assemblies. Explore more in our extensive range of PCB Connectors and headers on EnvMart for your electronic component requirements.
