Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector 20 Contacts 2.54 mm Pitch 2 Row 813-S1-020-10-014101

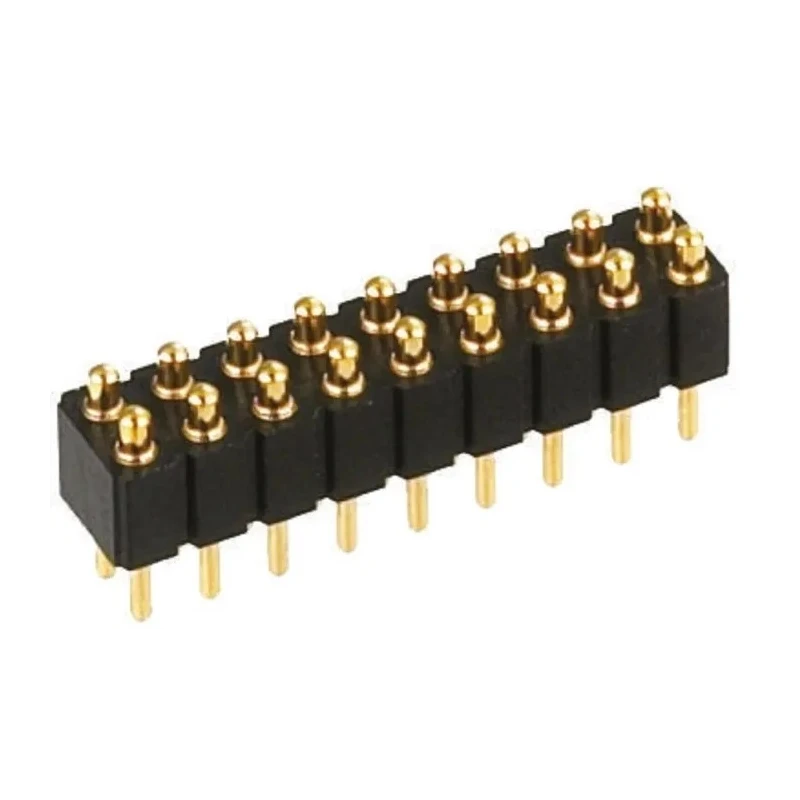

Preci-Dip 813-S1-020-10-014101 Spring Loaded Connector is a high-quality electrical connector featuring 20 spring-loaded contacts arranged in a 2-row configuration. It utilizes a 2.54 mm pitch and a straight orientation for ease of integration into PCBs. The connector is shrouded for protection and mounts through-hole for enhanced mechanical stability.

The housing is constructed from fibreglass reinforced polyethylene terephthalate, ensuring robustness and resistance to environmental factors. Contacts are brass-made and gold-plated, guaranteeing reliable conductivity and resistance to corrosion over extended use.

This connector supports a maximum current of 3.5A and operates up to 150V, suitable for a wide range of industrial and electronic applications. Its operating temperature range spans from -55°C up to 125°C, making it tolerant to harsh conditions.

The spring-loaded mechanism provides low and stable electrical resistance without micro-discontinuities even during motion or vibration, ensuring maximum reliability in dynamic or shock-prone environments. The plastic body height is 4 mm, while the plunger stroke length is 1.4 mm, offering compactness and efficient contact displacement.

Preci-Dip 813 series connectors are an excellent alternative to traditional connection methods, enhancing production efficiency in industrial, electronic, and power component assemblies. They are widely used in industrial machinery, electronic devices, power distribution boards, and other manufacturing environments requiring dependable PCB interconnects.

Features 20 spring-loaded contacts arranged in 2 rows for compact design. Pitch of 2.54 mm ensures compatibility with standard PCB layouts. Shrouded housing made from fibreglass reinforced polyethylene terephthalate for durability.

Brass male contacts plated with gold for enhanced conductivity and corrosion resistance. Operating temperature range from -55°C to 125°C suitable for diverse environments. Rated for 3.5A current and 150V voltage providing reliable electrical performance.

Through hole mount type allows secure and stable attachment to PCB boards. Plastic body height is 4 mm with plunger stroke length of 1.4 mm. Ideal for industrial, electronic components, power connectors, and PCB header applications.
