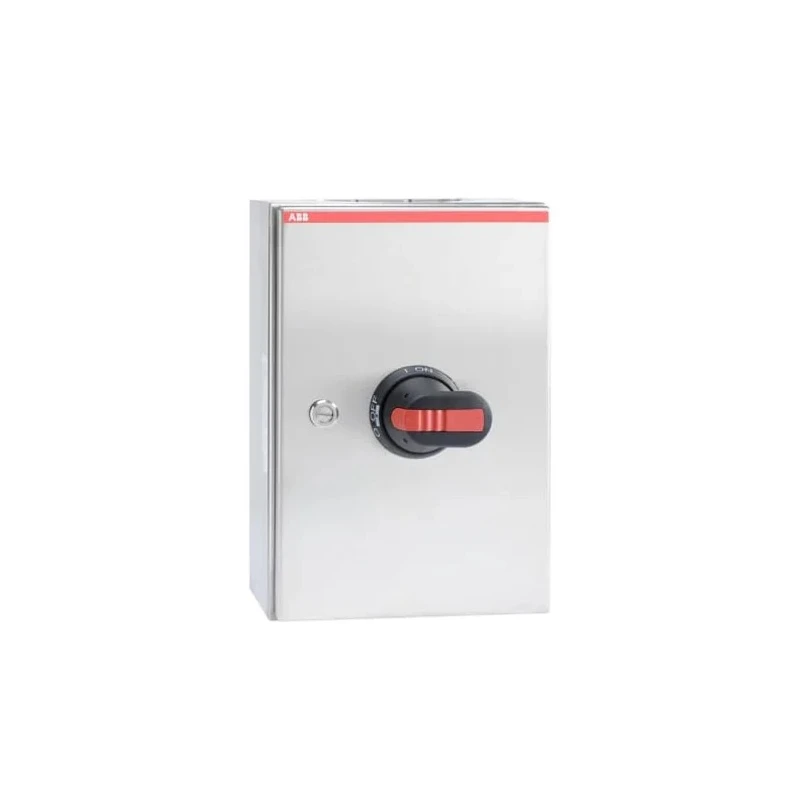

ABB 4-Pole Switch Disconnector IP65, 125A, 45 kW, 690V AC, Screw Clamp Terminal, Black Handle OTR Series

ABB 1SCA022567R1520 is a 4-pole switch disconnector from the OTR series, designed to provide reliable and safe electrical circuit isolation. With an IP65 enclosure rating, this switch disconnector is dust-tight and protected against water jets, making it suitable for both indoor and outdoor industrial environments. It handles a switching current of 125A and a switching power of up to 45 kW at 690 V AC, supporting demanding electrical infrastructure.

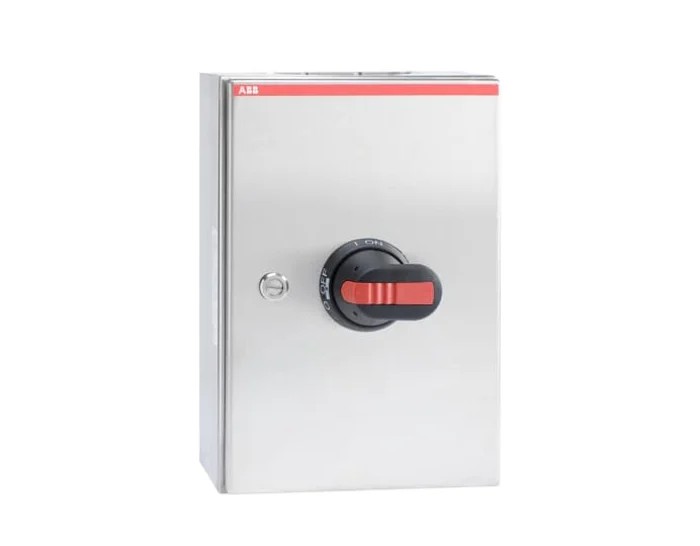

The device features a robust enclosure made of rigid stainless steel class AISI304, coupled with a hinged door secured by a lock mechanism. The door cover interlocks with the switch, preventing it from opening while energized, thereby enhancing operational safety. This interlock can be overridden for thermographic inspection if required. The enclosure is designed with knock-out cable entries, facilitating flexible cable management. A protective earth (PE) terminal and auxiliary contacts are included to support auxiliary circuit needs.

The switch uses screw clamp terminals for secure and reliable wire connections. It comes with a black handle that allows easy manual operation. The product conforms to IEC 60947-1 and IEC 60947-3 standards, aligning with international electrical safety and performance regulations. It does not have hazardous area certification, limiting use in explosive environments. Auxiliary contacts include a maximum of 2 normally open (NO) and 2 normally closed (NC) contacts, suitable for control circuit integration.

Designed for applications including industrial, commercial electrical panels, automation systems, and HVAC control, the ABB OTR series switch disconnector affords high operational safety and mechanical durability. It is suitable for use in EMC-sensitive installations when EMI cable glands are employed, helping to reduce electromagnetic interference.

This product measures 135 mm in length, 200 mm in width, and 135 mm in depth, making it compact for panel integration. Its robust construction and compliance with relevant international standards ensure dependable performance over time.

This Switch Disconnector offers reliable isolation and switching with 4 poles. IP65 rated enclosure provides superior protection against dust and water ingress. Rated current of 125A and power capacity of 45 kW support high electrical loads.

Constructed with stainless steel enclosure and security locking hinged door. Includes auxiliary contacts and PE terminal for enhanced circuit functionality. Meets IEC 60947-1 and 60947-3 standards for industrial electrical equipment.

EnvMart provides a wide selection of industrial electrical switches and disconnectors including the ABB 1SCA022567R1520 model, offering quality and reliability for electrical infrastructure needs.
