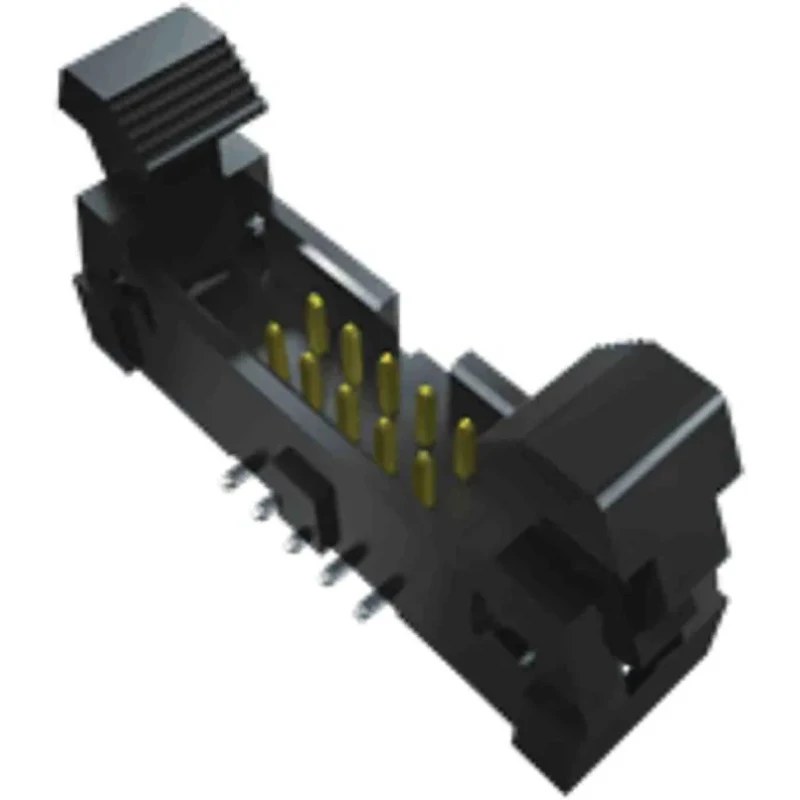

Samtec 30-Way Shrouded PCB Header Male for Through Hole Mount, 2 Row, 2mm Pitch EHT-115-01-F-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec 30-Way Shrouded PCB Header Male for Through Hole Mount, 2 Row, 2mm Pitch EHT-115-01-F-D

Name: Samtec 30-Way Shrouded PCB Header Male for Through Hole Mount, 2 Row, 2mm Pitch EHT-115-01-F-D
Brand: Samtec
SKU: 162263
Price: 7.84 USD
Availability: InStock



Category PCB Connectors Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Operating Temperature Range	-55°C to +125°C
Model	EHT-115-01-F-D
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	EHT
Termination Type	IDC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold, Tin
Number of Contacts	30
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded
Insulator Material	black liquid crystal polymer
SMT lead coplanarity	0.10mm max

Key Features

Constructed with phosphor bronze contacts for superior conductivity.
Features gold and tin plating on contacts for reliable signal transmission.
Black liquid crystal polymer housing offers robust insulation and durability.
Operating temperature range from -55°C to 125°C suits demanding applications.
Includes polarization notch and optional locking caps for secure cable connection.
Designed with IDC termination and straight orientation for easy assembly.
SMT lead coplanarity maximum 0.10mm ensures consistent soldering quality.
Two-row configuration provides compact, high-density connectivity.

Product Description

Samtec EHT-115-01-F-D is a highly reliable 30-way shrouded PCB header designed for through hole mounting with two rows and 2mm pitch contact spacing. It features phosphor bronze contacts with gold and tin plating to ensure excellent conductivity and durability for electronic applications.

The black housing is made from liquid crystal polymer, which provides strong insulation and mechanical stability. The header includes a polarization notch and optional caps to lock the cable securely, preventing misalignment during installation.

It operates reliably over a wide temperature range from -55°C to 125°C, making it suitable for demanding industrial, electronic, and telecommunications environments. The termination type is Insulation Displacement Contact (IDC), enabling quick and reliable wire connections.

The straight orientation and 2-row configuration allow for high-density wiring on PCBs where space-saving is important. The component also complies with stringent manufacturing coplanarity standards, with SMT lead coplanarity not exceeding 0.10mm for consistent soldering results.

Phosphor bronze contacts with gold and tin plating ensure excellent conductivity. Liquid crystal polymer housing provides durability and electrical insulation. Polarization notch and optional locking caps improve assembly security.

Operating temperature from -55°C to 125°C suits harsh environments. IDC termination allows fast and reliable wire connections. Straight orientation with 2 rows for compact PCB design. SMT lead coplanarity maximum 0.10mm ensures quality solder joints.

This PCB header is ideal for electronic manufacturing, telecommunications hardware, industrial control systems, and any application requiring compact, high-reliability connectors. It fits seamlessly into industrial-grade PCB connector assemblies.

Explore more electronic connectors and components in the PCB Connectors category on EnvMart for comprehensive industrial solutions.
