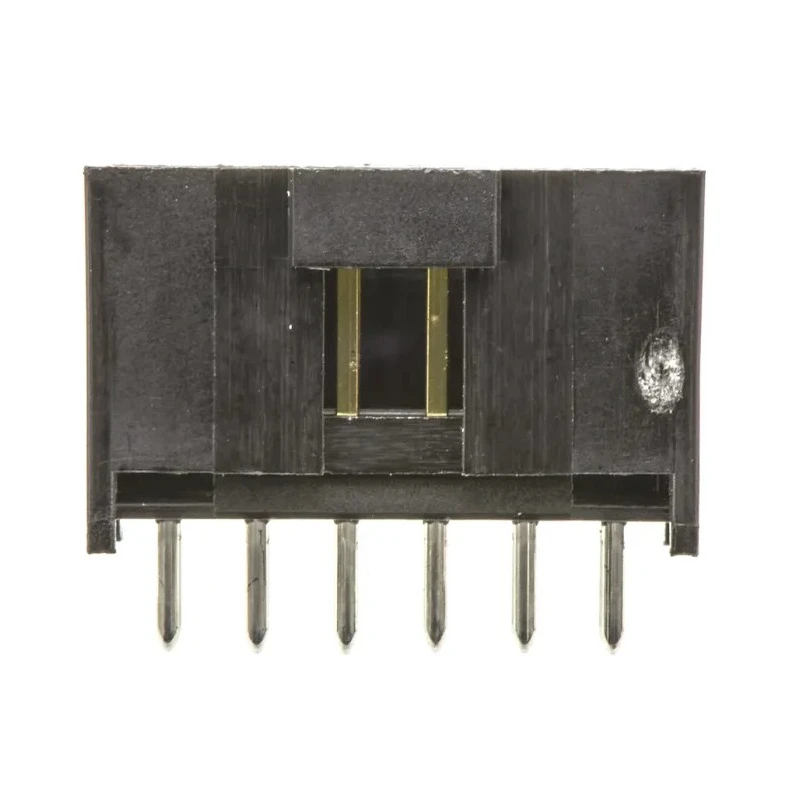

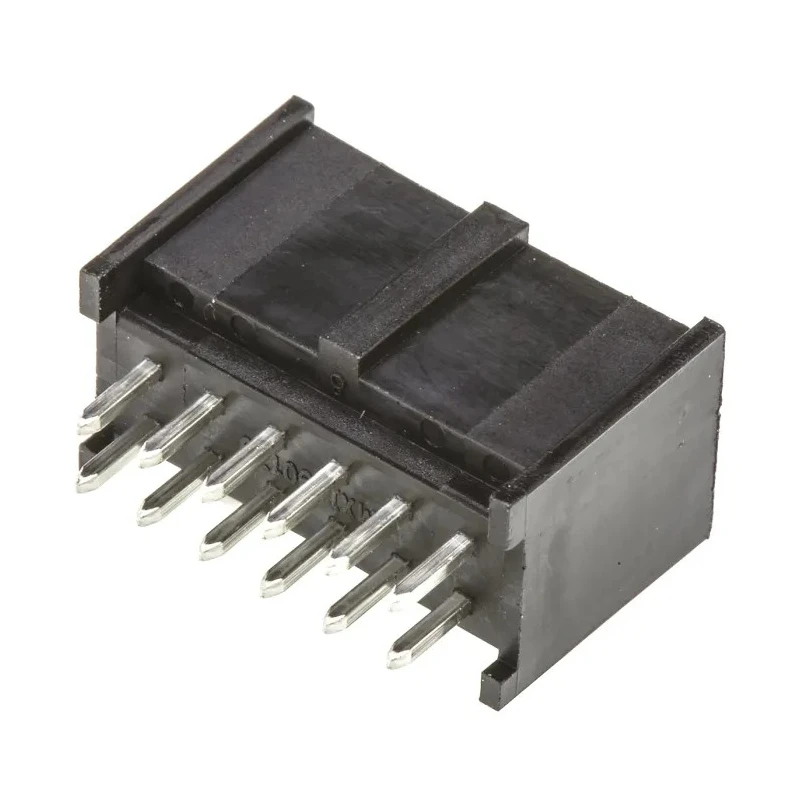

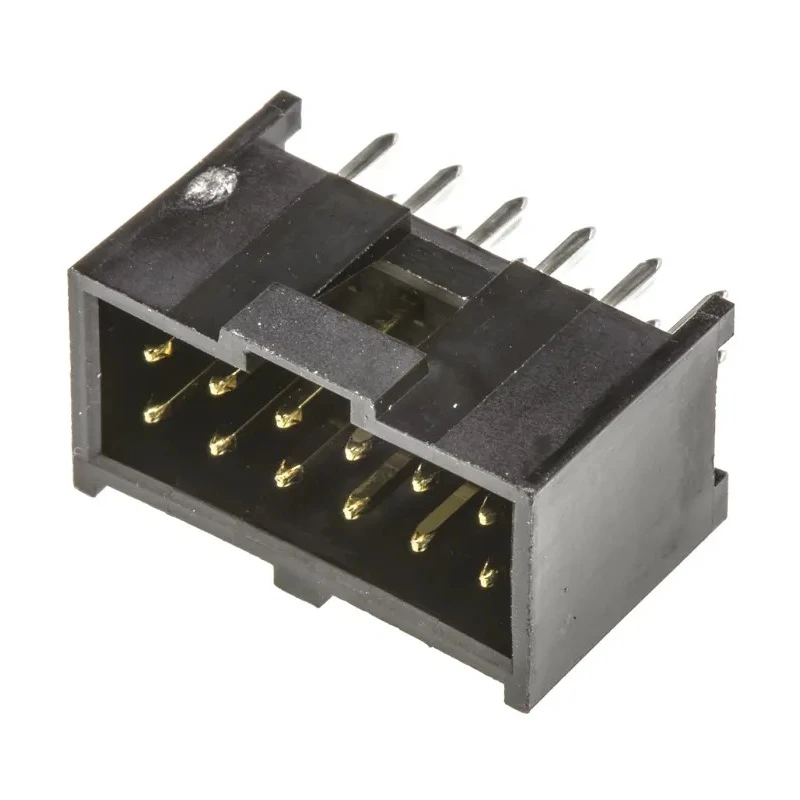

Molex C-Grid III Series Straight Through Hole PCB Header, 12 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 90130-1212
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- 12 contact pins arranged in 2 rows with 2.54 mm pitch for standard PCB interfacing.
- Housing is made of durable polyester material ensuring high insulation and mechanical strength.
- Brass contacts with gold plating provide reliable conductivity and corrosion resistance.
- Designed for through hole mounting and solder termination for robust assembly.
- Supports operating voltages up to 350V and current rating of 3A, suitable for various electronic applications.
- Minimum operating temperature of -55°C and maximum of 125°C ensures performance in varied environments.
- Shrouded design protects pins and ensures secure mating with locking housings.
- Tail pins length of 2.9 mm and mating pin length of 6.75 mm for consistent connection quality.
Product Description
Molex 90130-1212 C-Grid III Series Straight Through Hole PCB Header is a high-quality connector designed for reliable wire-to-board connections in electronic assemblies. Featuring 12 male contact pins arranged in 2 rows with a standard 2.54 mm pitch, this shrouded PCB header ensures secure and precise interfacing on circuit boards.
The housing is constructed from polyester, providing excellent electrical insulation and mechanical durability. The brass contacts are plated with gold, enhancing conductivity while protecting against corrosion and wear. This connector is designed for through hole mounting with solder termination, making it suitable for robust assembly processes in industrial electronics.
Rated for operation between -55°C to 125°C, and supporting voltages up to 350V and current of 3A, this PCB header is capable of withstanding demanding environmental and electrical conditions. The shrouded design protects the contacts and ensures a secure fit with locking housings, improving overall system reliability.
With tail pin lengths of 2.9 mm and mating pin lengths of 6.75 mm, the connector facilitates consistent and reliable connections. It is ideal for applications in industrial equipment manufacturing, telecommunications, instrumentation, and other electronics requiring dependable PCB interfacing.
12 contacts arranged in 2 rows with 2.54 mm pitch for standard PCB connectivity. Durable polyester housing providing excellent insulation and mechanical strength. Brass contacts plated with gold for reliable conductivity and corrosion resistance.
Through hole mount type with solder termination for secure connections. Operational temperature range from -55°C to 125°C to suit harsh environments. Supports voltage levels up to 350V and current rating of 3A. Shrouded design enhances pin protection and secure mating.
Wire-to-board connector system for versatile PCB applications.
This Molex PCB header is an essential component in electronic and electrical assemblies, delivering durable and reliable performance in varied industrial, laboratory, and commercial applications. Browse EnvMart for more Molex connectors and related electronic components to support your engineering and manufacturing needs.
Explore more products in our PCB Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum voltage of 350V.
It has a current rating of 3A.
The contacts are arranged with a pitch of 2.54 mm.
The operating temperature range is from -55°C to 125°C.
This model is designed for through hole mounting.
The housing is made of polyester, and the contacts are brass with gold plating.
It features 12 male contacts arranged in 2 rows.
The tail pin length is 2.9 mm.
The mating pin length is 6.75 mm.
It uses solder termination for secure connections.
This model is shrouded, which enhances pin protection.
The country of origin for this connector is India.
