C & K MD-S Series Push Button Switch On-Momentary On Through Hole SPDT 30 V dc MDS6500AL02SL

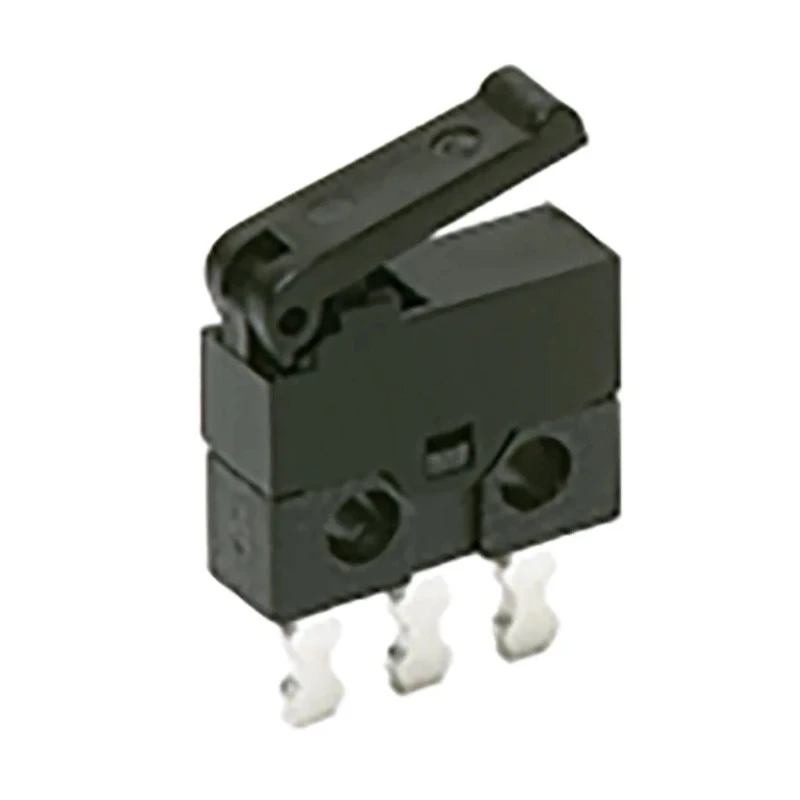

Name: C & K MD-S Series Push Button Switch On-Momentary On Through Hole SPDT 30 V dc MDS6500AL02SL
Brand: C & K
SKU: 420625
Price: 20.22 USD
Availability: InStock



Category Push Button Switches & Components Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Model	MDS6500AL02SL
Mount Type	Through Hole
Series	MD-S
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-25°C
Panel Cutout Size	2.5 mm
Terminal type	Solder Pin
Standards/Approvals	RoHS
Switch Operation	On-Momentary On
Contact DC Voltage	30V dc
Actuator Style	Lever
Switch Contact Current	300mA

Key Features

Features on-momentary on switch operation for momentary contact.
Mounts through PCB with a 2.5 mm panel cutout size.
Single Pole Double Throw (SPDT) contact configuration ensures versatile switching.
Compact lever actuator style suitable for tight spaces.
Supports contact DC voltage up to 30 V dc safely.
Switch contact current rated at 300 mA for reliable performance.
Operates within temperature range -25°C to 70°C.
Terminal type is solder pin for secure electrical connections.

Product Description

C & K MDS6500AL02SL Push Button Switch from the MD-S series is a precision micro snap-acting switch designed for detecting the presence of mechanical devices. Its compact size and snap-acting tactile feel make it ideal for demanding applications in medical devices, consumer electronics, and ATCA or MicroTCA systems.

This switch features an on-momentary on operation and SPDT contact configuration mounted through the PCB with a 2.5 mm panel cutout. It incorporates a lever actuator style with solder pin terminals for easy installation and secure connection.

Rated for 30 V dc contact voltage and a contact current of 300 mA, it ensures reliable performance within a temperature operating range of -25°C to 70°C. This switch complies with RoHS standards, underscoring its environmental safety credentials.

The MD-S series is available for vertical or right-angle PCB mounting and is purpose-built for applications requiring precise mechanical detection and high-quality tactile feedback.

Typical use cases include medical devices requiring compact and reliable switches, consumer electronics for user interface controls, and advanced telecommunications equipment such as MicroTCA frames.

Features on-momentary on switch operation for momentary contact. Mounts through PCB with a 2.5 mm panel cutout size. Single Pole Double Throw (SPDT) contact configuration ensures versatile switching. Compact lever actuator style suitable for tight spaces.

Supports contact DC voltage up to 30 V dc safely. Switch contact current rated at 300 mA for reliable performance. Operates within temperature range -25°C to 70°C. Terminal type is solder pin for secure electrical connections.

Complies with RoHS standards ensuring hazardous substances compliance. Manufactured in China with assured quality standards. Explore the Push Button Switch category on EnvMart for more options from industry-leading brands like C & K.
