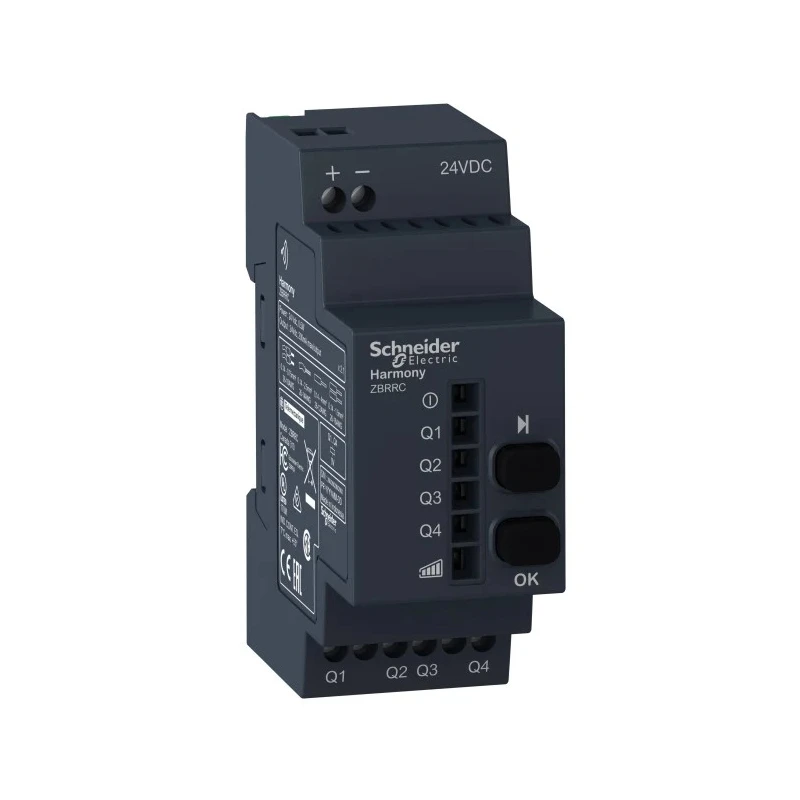

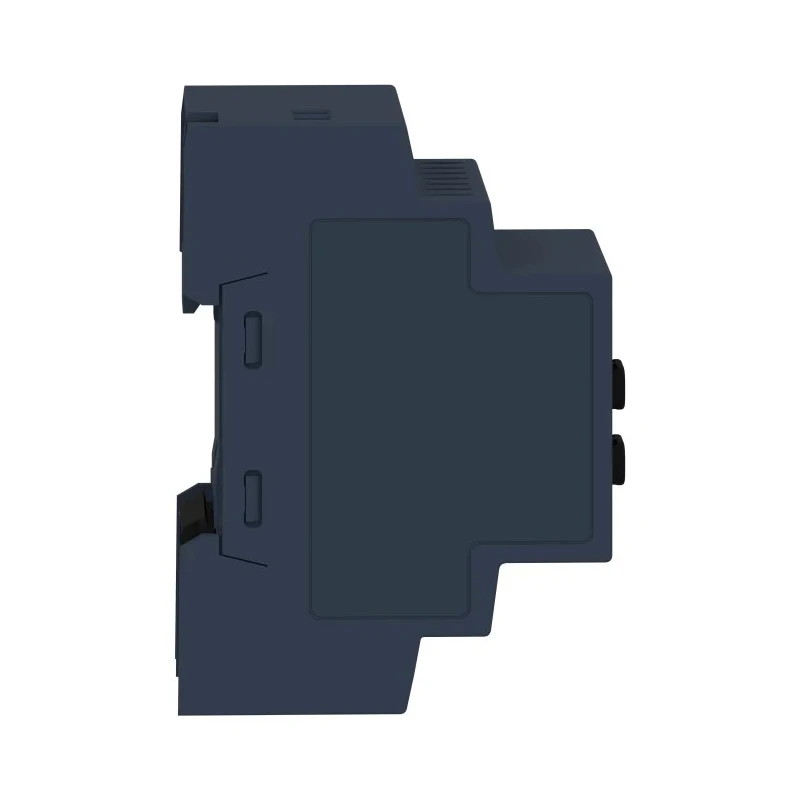

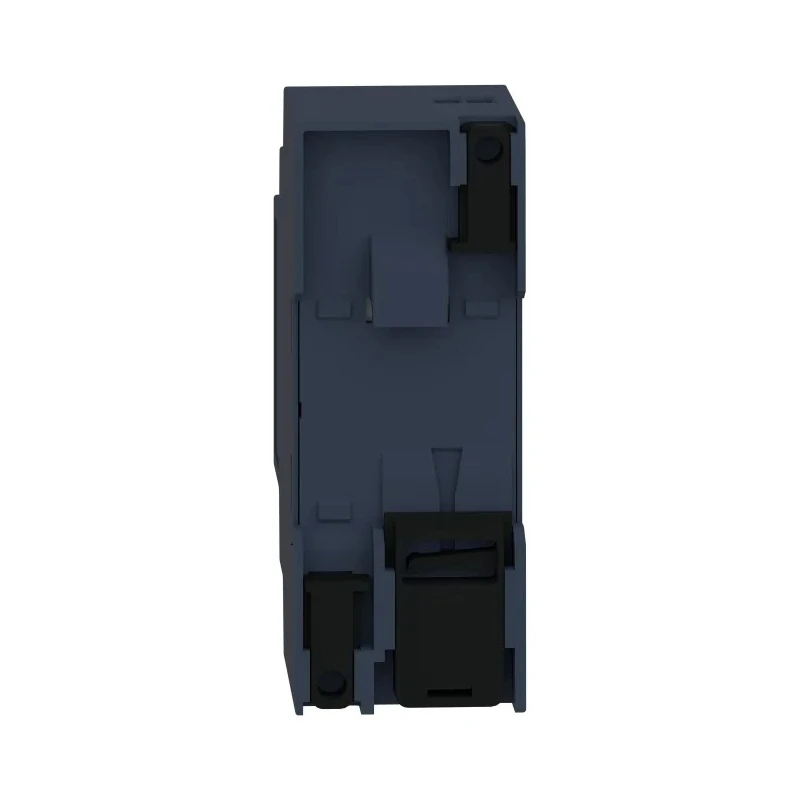

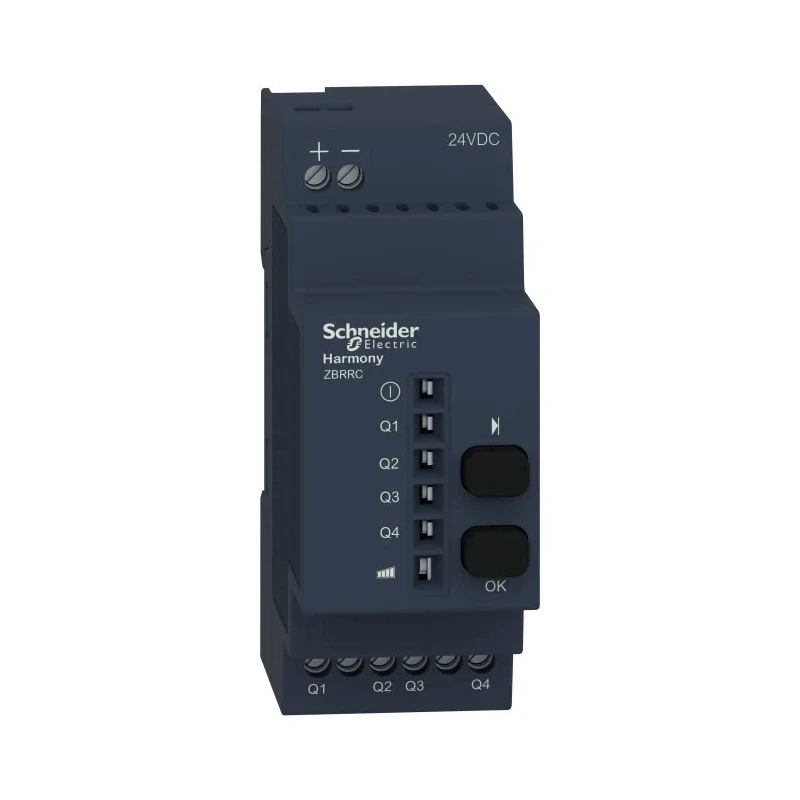

Schneider Electric Programmable Push Button Receiver for Use with Harmony XB5R Wireless Pushbutton ZBRRC

Schneider Electric ZBRRC Programmable Push Button Receiver is designed for use with the Harmony XB5R wireless pushbutton series, enabling efficient wireless control in various industrial settings. Operating on the Zigbee Green Power 2.4 GHz protocol in compliance with IEEE 802.15.4, this receiver enhances control panel flexibility by eliminating the need for wired connections through machine structures.

The device comes with 2 buttons for teaching and parameter configurations, alongside 6 LED indicators that display power status, function modes, output activity, and signal strength for easy monitoring. It provides 4 PNP outputs capable of switching up to 200 mA at 24 V DC, ideal for interfacing with control systems.

Its compatibility extends to wireless and batteryless pushbuttons from the XB4R/XB5R ranges, as well as limit switches XCKW and XCMW, facilitating broad application coverage. The receiver's IP20 rated enclosure, compact dimensions (36 mm width, 108 mm height, 75 mm depth), and lightweight design (130 g) make it suitable for installation in industrial control panels and safety boards.

The ZBRRC receiver supports the synchronization of up to 32 push buttons, allowing scalable and flexible machine control from distances up to 25 meters. This capability combined with its robust and maintenance-free design is advantageous in automotive conveying systems, logistic centers, food and beverage bottling lines, palletizers, and building utility management.

The product meets stringent international certifications including NEMA, IEC, UL, CE, CSA, and JIS standards, assuring compliance, safety, and performance worldwide. Its environmentally conscious design requires no battery recharging or disposal, aligning with green manufacturing practices.

This programmable receiver supports the Harmony XB5R range of wireless pushbuttons. It features 2 configuration buttons and 6 LED indicators for power, function modes, output status, and signal strength. Equipped with 4 PNP outputs rated at 200 mA / 24 V DC for reliable control.

Operates using Zigbee Green Power protocol compliant with IEEE 802.15.4 standards. Compatible with wireless and batteryless pushbuttons XB4R/XB5R and limit switches XCKW/XCMW. Compact size and IP20 rated enclosure for easy panel mounting.

Supports synchronization of up to 32 push buttons for flexible operation. Certified to NEMA, IEC, UL, CE, CSA, and JIS standards for safety and reliability. Applications include automotive conveying, food and beverage industries, palletizers, and building utilities.
