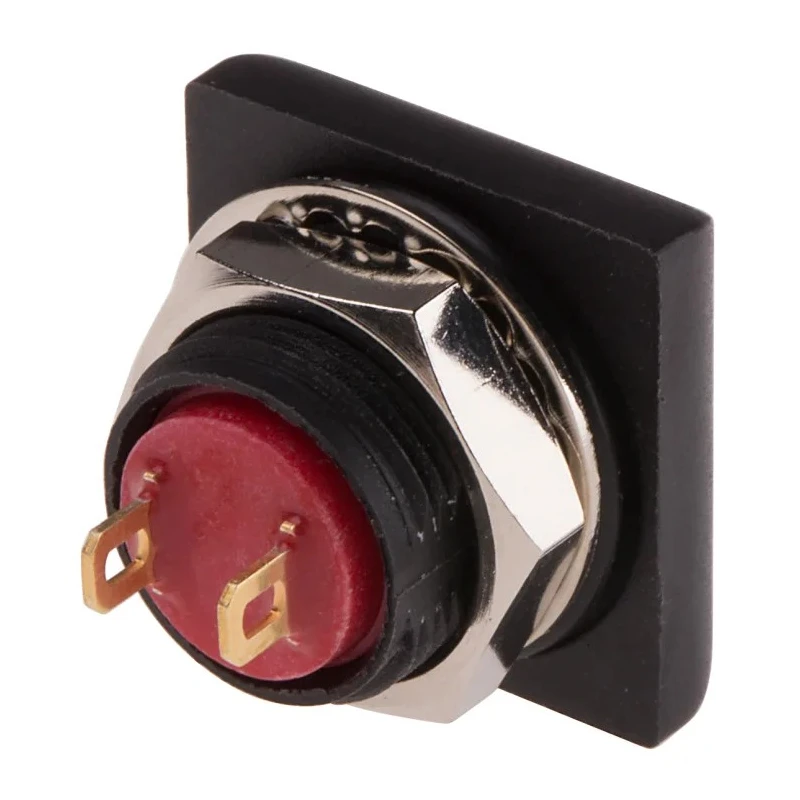

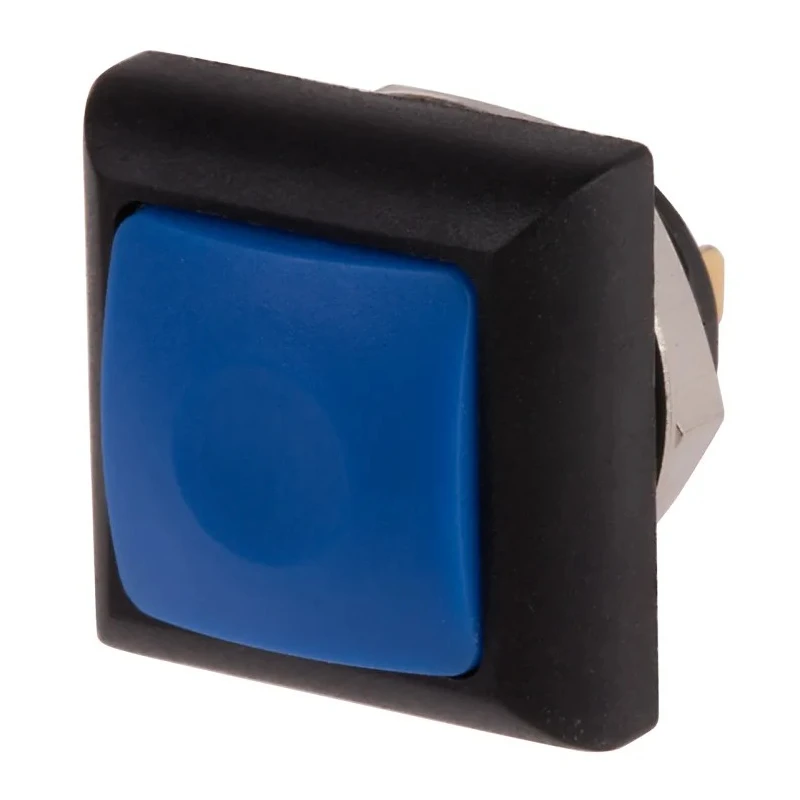

RS PRO Push Button Switch Momentary PCB Mount, 13.6 mm Cutout, SPST, Blue LED, IP67, 50V DC 125V AC 820-7580

Name: RS PRO Push Button Switch Momentary PCB Mount, 13.6 mm Cutout, SPST, Blue LED, IP67, 50V DC 125V AC 820-7580
Brand: RS PRO
SKU: 419988
Price: 709.54 INR
Availability: InStock



Category Push Button Switches & Components Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	820-7580
IP Rating	IP67
Mount Type	PCB
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Panel Cutout Size	13.6 mm
Terminal type	Solder Lug
Standards/Approvals	Lead-Free, RoHS Compliant
LED Colour	Blue
Switch Operation	Momentary
Actuator Colour	Blue
Contact DC Voltage	50V dc
Actuator Style	Cap
Switch Contact Current	400mA
Operating Force	2N - 5N
Mechanical Life	1000000 cycles
Contact AC Voltage	125V ac
Contact Bounce	10 ms
Soldering	350°C maximum for 5 seconds

Key Features

The actuator is blue colored with a cap style.
It supports 50 V DC and 125 V AC contact voltage.
The switch contact current rating is 400mA.
Maximum operating temperature is 85°C ensuring reliable operation.
Designed for a mechanical life of one million cycles.
Operating force ranges from 2N to 5N providing tactile feedback.
Contact bounce time is minimized to 10 ms for stable switching.
Soldering heat resistance up to 350°C for 5 seconds.

Product Description

RS PRO 820-7580 Push Button Switch is a high-quality momentary switch designed for PCB mounting applications. It comes with a 13.6 mm cutout suitable for panel installation. The blue actuator cap provides clear visual indication with the integrated blue LED, making it suitable for various control and signalling applications in industrial and automation systems.

Rated for 50 V DC and 125 V AC operation, this SPST switch can handle a contact current of up to 400mA. Its robust design ensures a mechanical lifetime of one million cycles, and it can operate reliably at temperatures up to 85°C, meeting demanding environmental conditions.

The switch features an IP67 rating, offering complete dust ingress protection and water immersion resistance, making it suitable for harsh industrial environments. The operating force of 2N to 5N provides ergonomic tactile feedback to users. Contact bounce is controlled to 10 milliseconds, ensuring reliable switching performance in sensitive electronic circuits.

The switch terminals use solder lug connections and can withstand soldering temperatures up to 350°C for 5 seconds, facilitating easy printed circuit board assembly. Additionally, the product is lead-free and RoHS compliant, adhering to environmental and safety standards.

Blue actuator with cap style for clear indication. Momentary switch operation for temporary engagement. SPST contact configuration suitable for simple on/off control. IP67 rated for superior dust and water resistance. Operating contact voltage: 50 V DC, 125 V AC.

Contact current rating of 400 mA. Mechanical lifespan of 1,000,000 cycles for durability. Operating temperature range up to 85°C. Operating force between 2N and 5N. Solder lug terminals with soldering up to 350°C for 5 seconds.

Lead-free and RoHS compliant ensuring environmental safety.

This push button switch is widely used in industrial automation, electrical panels, and equipment control systems. Its PCB mounting design allows easy integration into circuit boards, enhancing production efficiency and reliability. For more high-quality switches and components, explore the Electronics & Electricals category at EnvMart.
