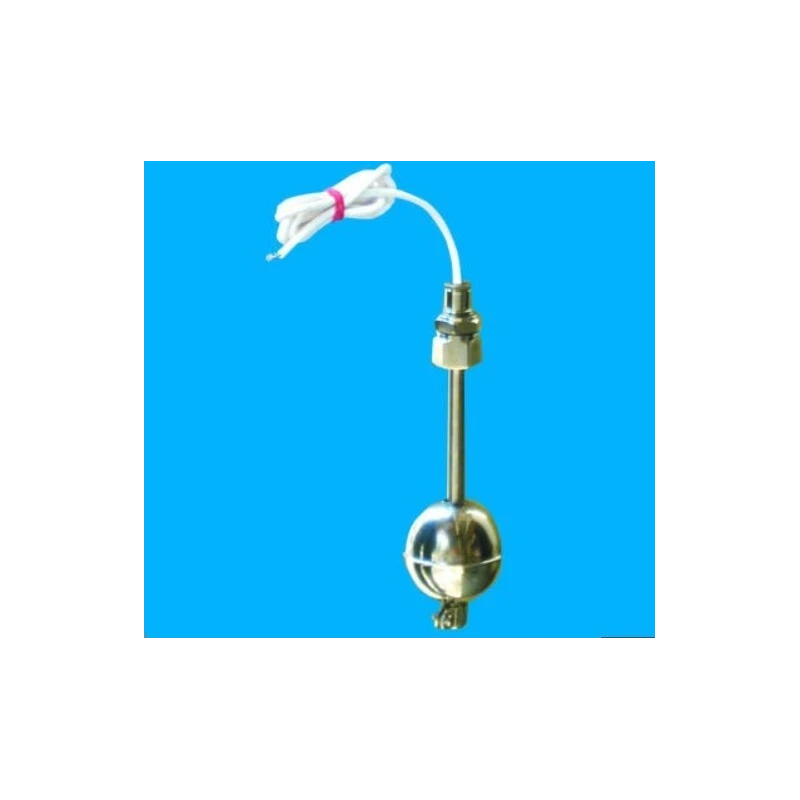

Liquid Level Switch VMT-16-SSCG
Specifications
| Brand | Mahalaxmi Instruments |
|---|---|
| MOC | SS 316 |
| Model | VMT-16-SSCG |
| Cable gland | SS 316 |
| Process connection | 1/4 Inch BSP(M) |
| Mounting option | Top Mount |
| Float | 53 mm diameter at collar |
| Maximum Working Pressure | 10 kg/cm2 |
| Maximum Working Temperature | 125C |
| Switch Rating | 100 VA / 60 VA |
| Maximum Switching Voltage (V) | 300 VAC / DC |
| Type of Switch | SPST / SPDT |
| Total Stem Length | 150 mm & 250 mm |
| Cable Core | 3 Core |
| Cable Material | PTFE with overall silicon insulation |
Key Features
- Bulk Quantities Available
Product Description
We offer flawless quality Top Mounted Magnetic Level Switch for our customers. These are used for controlling one or multi Levels by using reed Switch or micro Switch. It has a magnetized float moving alongside the protection tube which tracks the level and activates the reed relays inside the tube.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum working pressure for this model is 10 kg/cm².
It can operate at a maximum working temperature of 125°C.
This unit features an SPST or SPDT switch type.
The process connection size is 1/4 Inch BSP(M).
The float has a diameter of 53 mm at the collar.
The total stem length options are 150 mm and 250 mm.
The switch rating is 100 VA / 60 VA.
The cable gland and cable core are made of SS 316 and PTFE with overall silicon insulation, respectively.
It tracks liquid levels using a magnetized float that moves alongside the protection tube, activating the reed relays inside.
The maximum switching voltage is 300 VAC / DC.
This model is designed for top mounting.
It is suitable for controlling one or multiple liquid levels in various applications.
