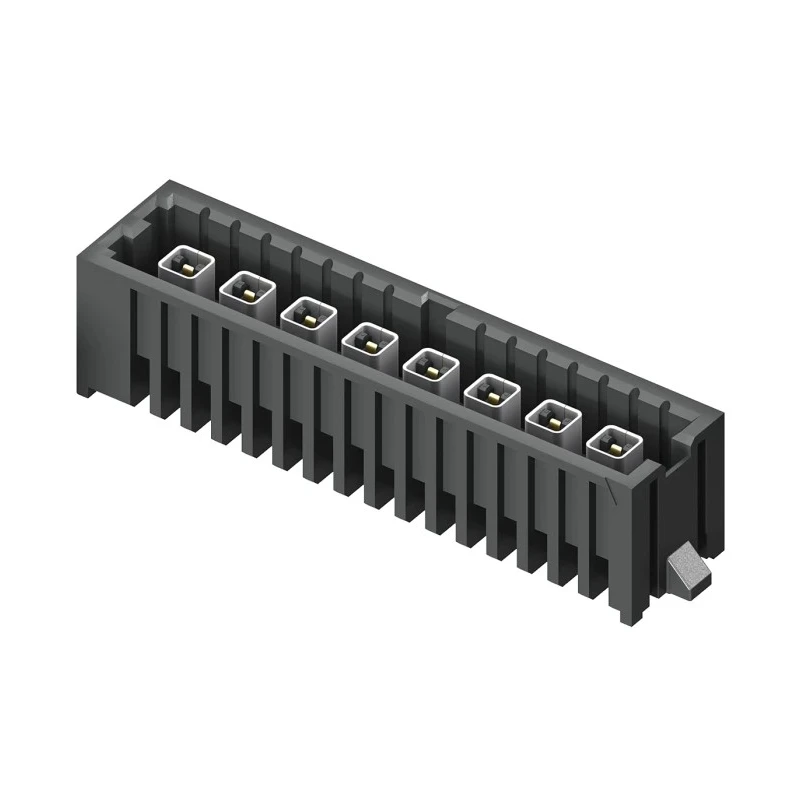

Samtec IP5 Series Straight Through Hole 8-Contact PCB Header 4 mm Pitch 1 Row Shrouded IP5-08-05.0-L-S-1-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.3A |
| Model | IP5-08-05.0-L-S-1-TR |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | IP5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 4mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features 8 gold-plated copper alloy contacts ensuring reliable electrical connectivity.
- Constructed with a liquid crystal polymer housing for enhanced durability.
- Operates safely between -55°C and 125°C temperature range.
- Designed for 200 V voltage and 2.3 A current rating to support various electronic applications.
- Through-hole mount type with shrouded connector providing superior isolation and protection.
- Single row and straight orientation compatible with board-to-board systems.
- Termination by solder ensures secure mechanical and electrical connection.
- Ideal for industrial, electronics manufacturing, and power connector assemblies.
Product Description
Samtec IP5-08-05.0-L-S-1-TR is a high-performance PCB header from the IP5 series, designed for straight through hole mounting in board-to-board applications. It features 8 male contacts with a 4 mm pitch and gold-plated copper alloy contacts housed within a robust liquid crystal polymer case, ensuring excellent durability and electrical performance.
This PCB header supports a voltage of 200 V and a current rating of 2.3 A, operating effectively within a temperature range of -55°C to 125°C. The connector is shrouded to provide additional protection and isolation, enhancing reliability in demanding environments.
The IP5 series is part of Samtec's IsoRate high isolation interconnect system, optimized for performance up to 9.5 GHz and data rates of 19 Gbit/s, making it suitable for advanced electronics and telecommunications.
The single-row, straight orientation header is designed for through-hole solder termination ensuring robust mechanical strength and electrical contact reliability. This product is ideal for use in industrial electronics manufacturing, power electronics, and other applications requiring precise and reliable board-to-board connections.
Features 8 gold-plated copper alloy contacts ensuring reliable electrical connectivity. Constructed with a liquid crystal polymer housing for enhanced durability. Operates safely between -55°C and 125°C temperature range.
Designed for 200 V voltage and 2.3 A current rating to support various electronic applications. Through-hole mount type with shrouded connector providing superior isolation and protection. Single row and straight orientation compatible with board-to-board systems.
Termination by solder ensures secure mechanical and electrical connection. Ideal for industrial, electronics manufacturing, and power connector assemblies.
Use this Samtec IP5 series PCB header for reliable board-to-board connection in industrial, manufacturing, aerospace, telecommunications, and other electronics sectors. For further browsing, explore the Electronics & Electricals categories on EnvMart.
Explore more products in our PCB Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed for a voltage rating of 200 V, making it suitable for various electronic applications.
It has a current rating of 2.3 A, which supports its use in different electronic systems.
This connector operates safely within a temperature range of -55°C to 125°C.
The PCB header features 8 male contacts, ensuring reliable electrical connectivity.
It utilizes a through-hole mount type, which provides secure installation on PCBs.
The housing is constructed from liquid crystal polymer, enhancing its durability.
The pitch size of the contacts is 4 mm, which is standard for many PCB applications.
This model is a shrouded connector, providing additional protection and isolation.
It uses solder termination, ensuring a secure mechanical and electrical connection.
It is ideal for industrial electronics manufacturing, power electronics, and telecommunications applications.
The connector features a single row and straight orientation, compatible with board-to-board systems.
The contacts are made of gold-plated copper alloy, ensuring reliable electrical connectivity.
