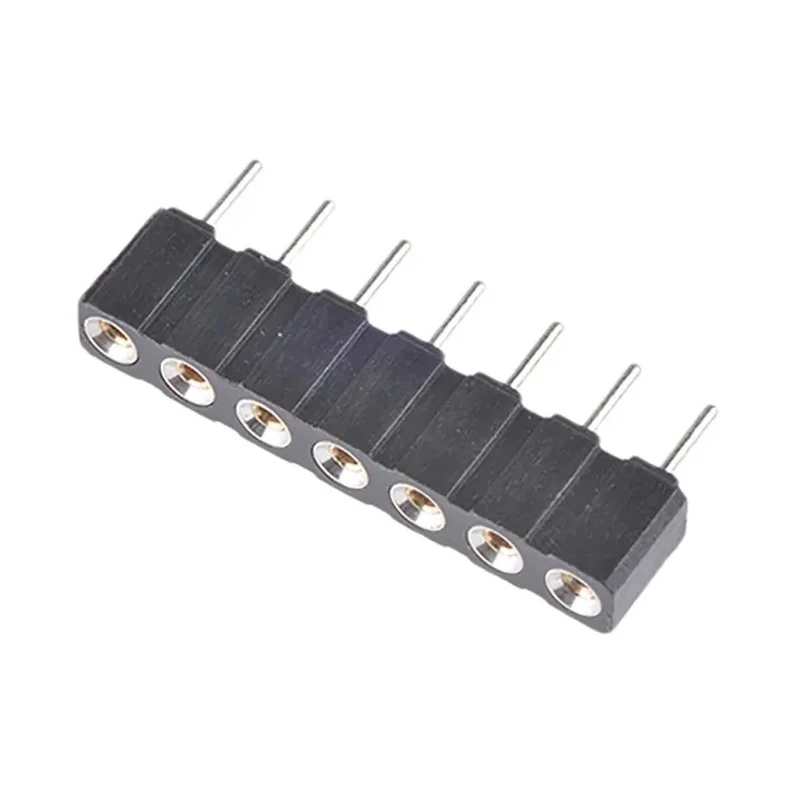

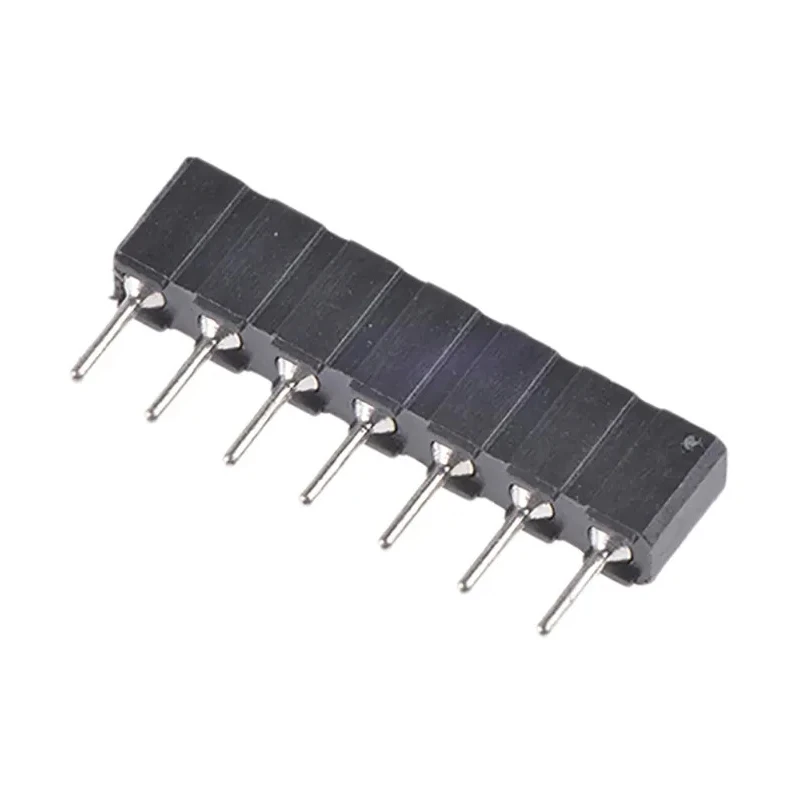

Preci-Dip 7 Way Preci-Dip Straight Through Hole 2.54 mm Pitch SIL Socket 100 V AC, 150 V DC, Solder, 3A 310-87-107-01-640101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 100, 150V ac |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Length | 17.78mm |
| Depth | 4.2mm |
| Width | 2.54mm |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Beryllium Copper Alloy, Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Gold, Tin |
| Number of Contacts | 7 |
Key Features
- The socket features gold and tin plated contact surfaces for reliable conductivity.
- Constructed from beryllium copper alloy and brass for durability and performance.
- Offers a straight orientation with through-hole mount type for easy PCB integration.
- Housing is made of fibreglass reinforced polycyclohexylenedimethylene terephthalate for thermal and mechanical stability.
- Operates reliably in temperatures from -55°C up to 125°C.
- Designed for solder termination ensuring robust electrical connections.
- Compact dimensions include a 4.2 mm depth, 2.54 mm width, and 17.78 mm length.
- Manufactured in Switzerland, assuring high-quality standards.
Product Description
Preci-Dip 310-87-107-01-640101 7 Way Preci-Dip Straight Through Hole SIL Socket offers a 2.54 mm pitch suited for electronic applications requiring 3 amp current capacity and voltage ratings of 100 V AC and 150 V DC. This socket is engineered for solder termination and through-hole mounting, providing a reliable interconnection solution for PCB assemblies.
The contacts utilize beryllium copper alloy and brass, featuring gold and tin plating for enhanced conductivity and corrosion resistance. The housing is fabricated from fibreglass reinforced polycyclohexylenedimethylene terephthalate, delivering robust mechanical strength and thermal endurance. It supports operation in harsh environments within a temperature range from -55°C to 125°C.
This product’s compact size with dimensions 4.2 mm depth, 2.54 mm width, and 17.78 mm length facilitates efficient PCB space utilization. It is manufactured in Switzerland, meeting stringent quality standards often required in industrial electronics, aerospace, telecommunications, and laboratory equipment.
Applications include industrial electronic assemblies, control systems, telecommunications hardware, and any context that demands durable and reliable SIL socket connections. The socket features gold and tin plated contact surfaces for reliable conductivity.
Constructed from beryllium copper alloy and brass for durability and performance. Offers straight orientation with through-hole mount type for easy PCB integration. Housing is made of fibreglass reinforced polycyclohexylenedimethylene terephthalate for thermal and mechanical stability.
Operates reliably in temperatures from -55°C up to 125°C. Designed for solder termination ensuring robust electrical connections. Compact dimensions include a 4.2 mm depth, 2.54 mm width, and 17.78 mm length. Manufactured in Switzerland, assuring high-quality standards.
Discover more SIL Socket solutions and electronic connectors available at EnvMart. Browse our categories for compatible components and accessories to enhance your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current capacity of 3A.
It supports voltage ratings of 100 V AC and 150 V DC.
The pitch size of this socket is 2.54 mm.
The contacts are constructed from beryllium copper alloy and brass, with gold and tin plating for enhanced conductivity.
It has a length of 17.78 mm, a width of 2.54 mm, and a depth of 4.2 mm.
This socket is designed for solder termination, ensuring robust electrical connections.
It operates reliably within a temperature range from -55°C to 125°C.
This model features a through-hole mount type for easy PCB integration.
This socket is manufactured in Switzerland, ensuring high-quality standards.
The housing is made of fibreglass reinforced polycyclohexylenedimethylene terephthalate, providing thermal and mechanical stability.
This model features 7 contacts.
It is suitable for industrial electronic assemblies, control systems, and telecommunications hardware.
