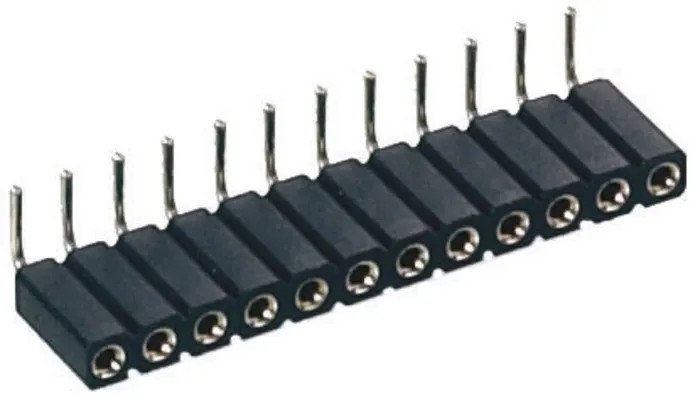

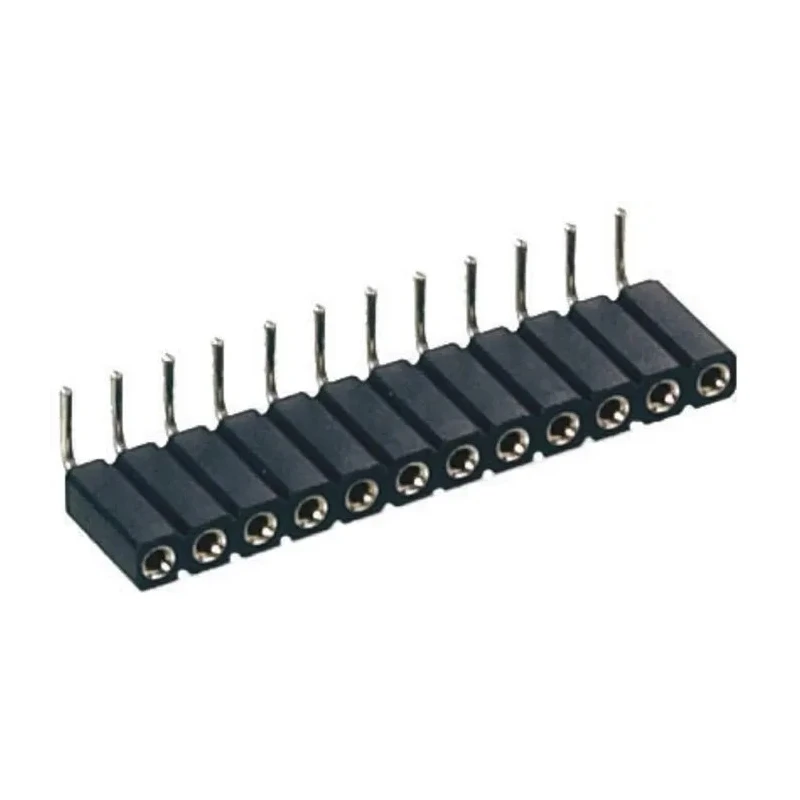

Preci-Dip 5 Way Right Angle Through Hole SIL Socket 2.54 mm Pitch 100 V AC, 150 V DC, 3A Current 801-87-005-20-002101

Preci-Dip 801-87-005-20-002101 is a 5 Way Right Angle Through Hole SIL Socket featuring a 2.54 mm pitch. It supports electrical currents up to 3A at 100V AC and 150V DC, making it suitable for various electronic applications requiring reliable signal connections.

The socket's contacts are made from a durable combination of brass and beryllium copper alloy, plated with tin and gold to provide excellent corrosion resistance and consistent electrical conductivity. The housing comprises fiberglass reinforced polycyclohexylenedimethylene terephthalate, imparting robust mechanical strength and thermal endurance.

It is designed with a right angle orientation and mounted through hole, facilitating stable integration on printed circuit boards (PCBs). The product operates effectively in harsh environments with an operating temperature range from -55°C to 125°C, making it versatile for industrial, laboratory, and commercial electronic equipment.

Dimensions are compact with a length of 12.7 mm, width of 2.95 mm, and depth measuring 2.54 mm, accommodating dense PCB layouts. The termination method is soldering, further ensuring secure and reliable electrical contacts.

This Preci-Dip SIL Socket is manufactured in Switzerland, upholding high manufacturing and quality standards. Use cases include signal interfacing in electronic assemblies within industrial, laboratory, and instrumentation environments.

Constructed from brass and beryllium copper alloy for high conductivity and durability. Tin and gold plating provide corrosion resistance and enhance signal integrity. Rated current capacity of 3A suitable for moderate power applications.

Right angle through hole mounting provides mechanical stability on PCBs. Housing material ensures robustness and thermal resistance up to 125°C. Compact footprint with precise 2.54 mm pitch ideal for dense circuit designs.

Designed for operation in wide temperature ranges from -55°C to 125°C. Reliable solder termination ensures secure electrical and mechanical connections. Switzerland origin signifies quality manufacturing and standards compliance.
