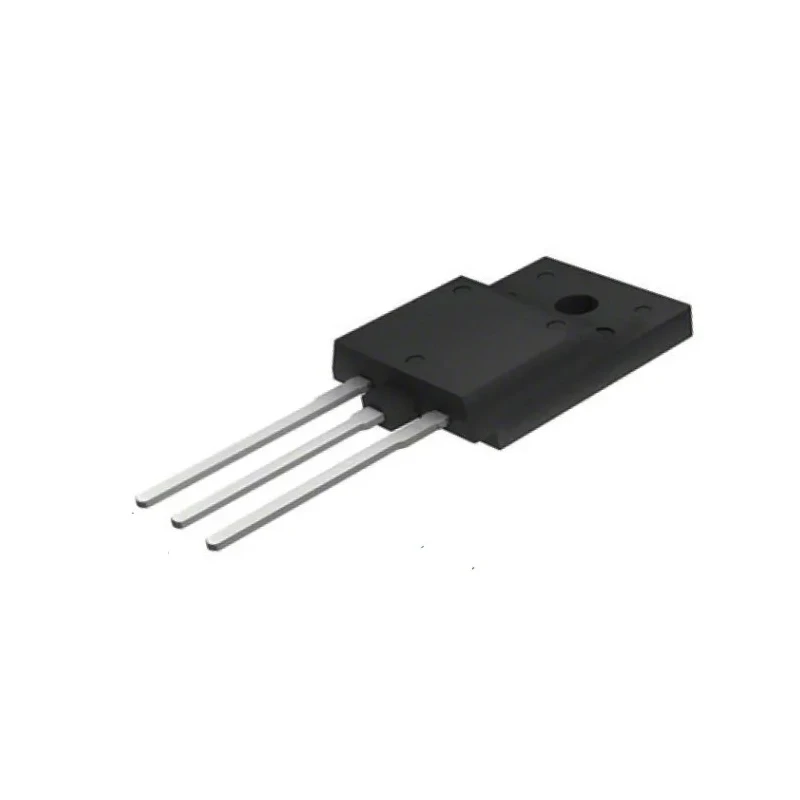

Vishay 600 V 30 A General Purpose Rectifier & Schottky Diode Surface Mount TO-3PF VS-CZH6106FP-M3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-CZH6106FP-M3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-3PF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 1.4V |
Key Features
- Designed for surface mount with TO-3PF package type.
- Maximum continuous forward current is 30 amperes ensuring robust performance.
- Peak reverse repetitive voltage rating of 600 volts for reliable operation.
- Features a 2x common cathode pair diode configuration for efficient rectification.
- Maximum forward voltage drop of 1.4 volts minimizes power losses.
- Operates effectively within a temperature range from -55°C to 175°C.
- Peak non-repetitive forward surge current up to 280 amperes.
- Complies with RoHS standards and meets automotive standard AEC-Q101.
Product Description
Vishay VS-CZH6106FP-M3 is a high-performance general purpose rectifier and Schottky Diode designed for surface mount applications. Featuring a robust TO-3PF package, this diode supports a maximum continuous forward current of 30 A and a peak reverse repetitive voltage of 600 V. The device is engineered to deliver hyperfast soft recovery, low forward voltage drop at 1.4 V, and low leakage current, ensuring efficiency and durability in power electronics.
Its planar structure and platinum doped lifetime control guarantee ruggedness and reliability for demanding industrial uses. The diode operates safely in extreme temperatures ranging from -55°C up to 175°C. With a peak non-repetitive forward surge current capacity of 280 A, it withstands transient conditions effectively.
Fully RoHS compliant and qualified to automotive standard AEC-Q101, this diode provides dependable performance for automotive and industrial electronics. Its fully isolated TO-3PF package offers 2500 VRMS isolation, reducing electrical noise and enhancing circuit protection.
This product is ideal for use in the power factor correction (PFC) boost stage within AC/DC sections of switch mode power supplies, inverters such as those used in air conditioning systems, UPS units, motor drives, and for high frequency welding equipment.
Hyperfast soft recovery time reduces switching losses and stress on switching elements. Optimized stored charge and low recovery current minimize energy dissipation. Fully isolated package increases safety and reliability in compact electronic systems.
Extensive application range suitable for industrial, automotive, and commercial electronics. Ensures stable operation and extends device life in heavy-duty switching environments. Explore the Vishay range of industrial semiconductors available at EnvMart for professionals requiring quality and reliability in power management.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-CZH6106FP-M3 is 30 amperes.
This model has a peak reverse repetitive voltage rating of 600 volts, ensuring reliable operation in various applications.
The maximum forward voltage drop for this diode is 1.4 volts, which helps minimize power losses during operation.
It operates effectively within a temperature range from -55°C to 175°C, making it suitable for extreme conditions.
The diode is designed in a TO-3PF package type, which is suitable for surface mount applications.
The peak non-repetitive forward surge current for this unit is rated at 280 amperes, allowing it to withstand transient conditions.
Yes, the Vishay VS-CZH6106FP-M3 is fully RoHS compliant, ensuring it meets environmental standards.
This model is qualified to the automotive standard AEC-Q101, making it suitable for automotive applications.
It features a 2x common cathode pair diode configuration, which enhances its rectification efficiency.
This diode is suitable for applications such as power factor correction (PFC) in AC/DC sections of switch mode power supplies, inverters, and motor drives.
The Vishay VS-CZH6106FP-M3 belongs to the FRED Pt series, known for its high-performance characteristics.
The fully isolated TO-3PF package offers 2500 VRMS isolation, which enhances circuit protection and reduces electrical noise.
