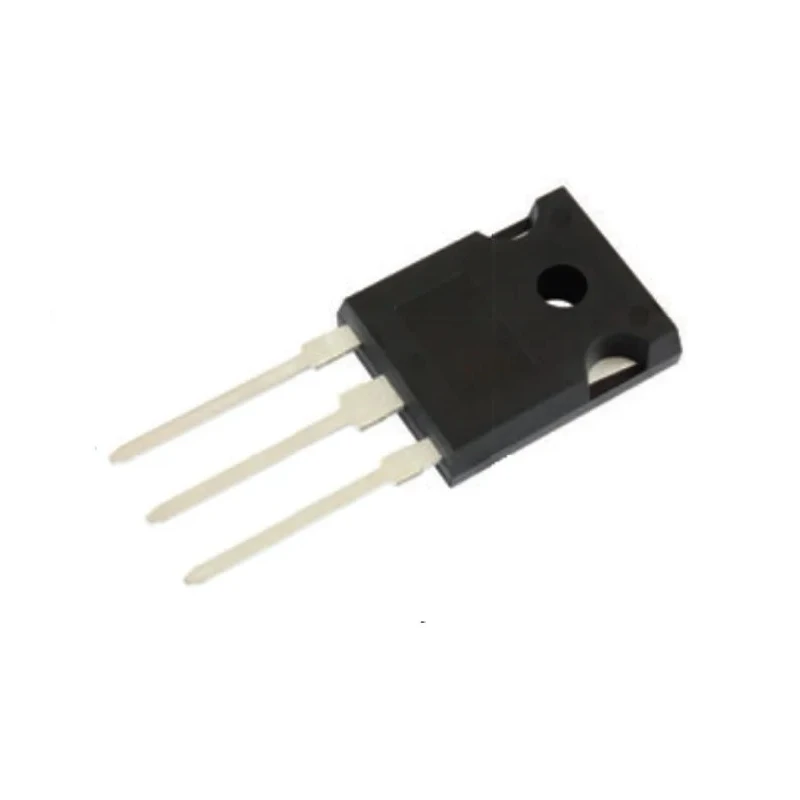

Vishay 400 V 30 A Surface Mount General Purpose Rectifier & Schottky Diode TO-247AD VS-30CPU04LHN3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-30CPU04LHN3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 0.93V |
Key Features
- Ultrafast recovery time reduces switching losses and over dissipation.
- Low forward voltage drop for efficient power conversion.
- High operating junction temperature up to 175 °C ensures durability.
- Includes 2x common cathode pair diode configuration.
- Complies with RoHS and AEC-Q101 automotive standards.
- Peak non-repetitive forward surge current capacity of 200 A.
- Minimum operating temperature is -55 °C for wide environmental use.
- Designed for use in SMPS, UPS, DC/DC converters, and motor drives.
Product Description
Vishay VS-30CPU04LHN3 is a 400 V, 30 A rectifier and Schottky Diode with a surface mount TO-247AD package, designed for general-purpose applications in power electronics. This device features ultrafast recovery time and low forward voltage drop, optimizing efficiency and reducing energy losses during switching operations.
The device can operate reliably within a temperature range from -55 °C to 175 °C, making it suitable for industrial and automotive environments. It incorporates a 2x common cathode pair diode configuration, enabling robust and efficient power rectification.
Compliance with RoHS and the automotive-grade AEC-Q101 standard ensures quality and suitability for automotive and industrial power management. This diode is excellent for use in output rectification stages of switched-mode power supplies (SMPS), uninterruptible power supplies (UPS), DC/DC converters, as well as freewheeling diodes in low voltage inverters and chopper motor drives.
The device supports a peak non-repetitive forward surge current of up to 200 A, providing resilience against transient current spikes. Its platinum-doped lifetime control and planar structure guarantee enhanced ruggedness and reliability characteristics.
Ultrafast recovery time minimizes switching losses. Low forward voltage drop enhances energy efficiency. High operating junction temperature of 175 °C for demanding applications. RoHS and AEC-Q101 certified for industrial and automotive use.
2x common cathode pair diode configuration for versatile circuit integration.
Vishay's VS-30CPU04LHN3 is a high-performance semiconductor component ideal for industrial, automotive, and power management applications where reliable rectification and efficient switching are critical.
Explore our Electronics & Electricals category for more advanced semiconductor solutions and leverage Vishay’s technology for your project needs.
