Nexperia 60 V 1.4 A Surface-Mount Schottky Diode DSN-1006 Package PMEG6010AESBYL

Free Delivery in India | Lowest Global Shipping Charges

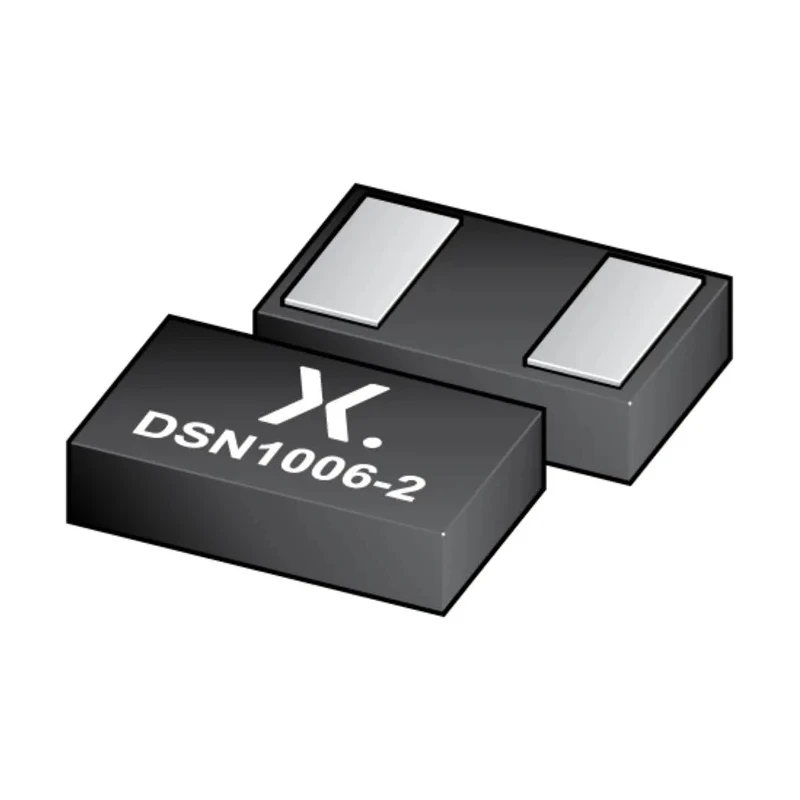

Nexperia 60 V 1.4 A Surface-Mount Schottky Diode DSN-1006 Package PMEG6010AESBYL

Name: Nexperia 60 V 1.4 A Surface-Mount Schottky Diode DSN-1006 Package PMEG6010AESBYL
Brand: Nexperia
SKU: 414580
Price: 0.11 USD
Availability: InStock



Category Schottky Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.27mm
Length	1mm
Model	PMEG6010AESBYL
Width	0.6mm
Mount Type	Surface
Series	PMEG6010AESB
Maximum Operating Temperature	150°C
Package Type	DSN-1006
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Continuous Forward Current If	1.4A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	650μA
Peak Non-Repetitive Forward Surge Current Ifsm	10A
Maximum Forward Voltage Vf	625mV
Peak Reverse Recovery Time trr	2.4ns
Average forward current	IF(AV) ≤ 1 A
Reverse voltage	VR ≤ 60 V

Key Features

This diode features a low forward voltage typical of 525 mV ensuring energy efficiency.
It is designed for ultra-small surface mount applications with a height of 0.27 mm.
The diode supports a maximum continuous forward current of 1.4 A and peak surge current of 10 A.
It exhibits ultra-high speed switching with a peak reverse recovery time of 2.4 ns.
Operating temperature ranges from -55°C to 150°C providing reliability in harsh environments.
The package type DSN-1006 (SOD993) ensures compactness suitable for densely populated PCBs.
Low reverse current leakage of 650 μA typical contributes to minimal power loss.
This diode is ideal for DC-to-DC conversion, switch mode power supplies, and low-power consumption applications.

Product Description

Nexperia PMEG6010AESBYL is a 60 V 1.4 A Schottky diode designed for surface-mount technology in a compact DSN-1006 package, ideal for diverse electronic applications. This planar maximum efficiency general application Schottky barrier rectifier comes with an integrated guard ring for stress protection enhancing durability and reliability.

It features a low forward voltage drop approximately 525 mV and low reverse leakage current around 650 μA resulting in high efficiency and reduced power dissipation. With ultra-high speed switching capabilities highlighted by a peak reverse recovery time of 2.4 ns, it supports fast switching circuits efficiently.

The device can endure a maximum continuous forward current of 1.4 A, and sudden surge currents up to 10 A, suitable for transient load conditions. Operating temperature range from -55°C to 150°C ensures stable operation under varying environmental conditions.

Its ultra-small DSN-1006 surface-mount package with dimensions 1 mm length, 0.6 mm width, and 0.27 mm height enables space-saving designs in modern electronic equipment. This diode excels in low voltage rectification, making it a preferred choice in LED backlight drivers for mobile applications.

Widely used in DC-to-DC converters and switch mode power supply circuits due to low losses and high efficiency. Its compact size and performance suit industrial, automotive (non-automotive standard), and consumer electronics sectors.

This product is new and sourced with Indian country of origin by default. It is an essential component for engineers designing efficient power management circuits.

For more industrial-grade semiconductors and Schottky Diodes, explore the comprehensive offerings at EnvMart to source the optimal device for your electronic assembly and manufacturing needs.
