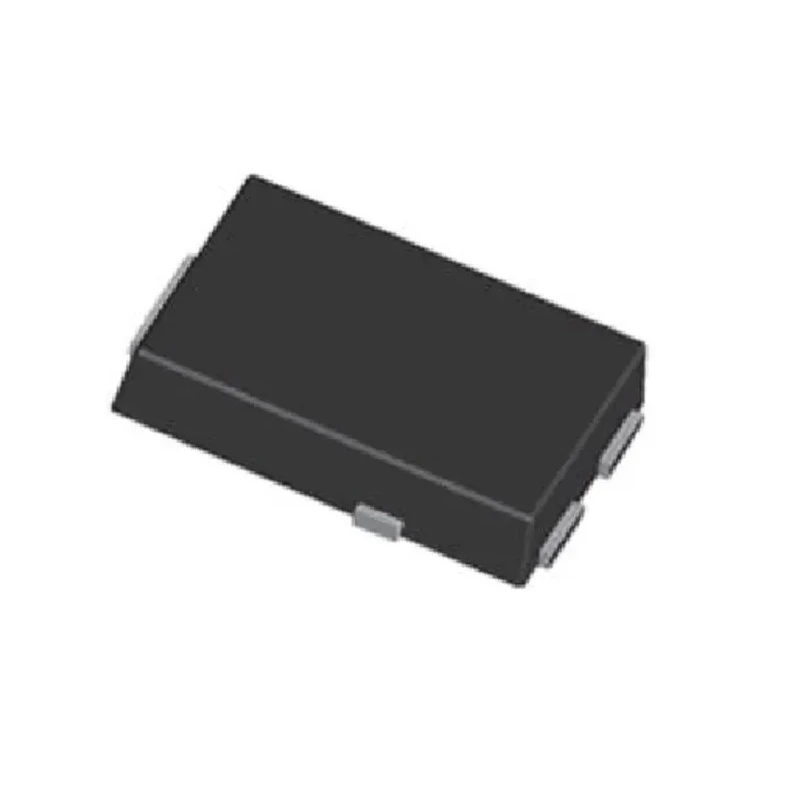

Vishay 150 V 15 A Schottky Barrier Schottky Diode Surface Mount TO-252 Package V15PM153HM3/H

Vishay V15PM153HM3/H Schottky Barrier Schottky Diode is a high current density, surface-mount rectifier designed primarily for low voltage, high frequency DC/DC converter circuits, freewheeling diode use, and polarity protection applications. Encapsulated in a TO-252 surface mount package, it features a very low profile with a typical height of 1.3 mm.

This diode incorporates advanced trench MOS Schottky technology, providing a low forward voltage drop of 0.62 volts which translates to minimal power losses and high efficiency during operation. Its maximum continuous forward current rating is 15 amperes, supporting high current industrial and commercial electronic applications.

The device withstands peak reverse repetitive voltages of 150 volts and tolerates a peak non-repetitive forward surge current of up to 200 amperes, ensuring durability against transient conditions. It operates effectively within a temperature range from -65°C to 150°C, making it reliable in a wide variety of demanding environments including automotive and industrial uses.

This rectifier meets strict environmental and quality standards including RoHS compliance and automotive qualification per AEC-Q101, ensuring consistent performance and safety.

Ideal industrial applications include use in power supplies, automotive electronic systems, DC/DC converters, and other semiconductor-based electronic devices requiring efficient and reliable Schottky barrier diode performance.

Maximum continuous forward current of 15 amperes ensures robust performance. Peak reverse repetitive voltage of 150 volts for reliable blocking capability. Low forward voltage drop of 0.62 volts reduces power losses in operation.

Wide operating temperature range from -65°C to 150°C suitable for harsh environments. Peak non-repetitive forward surge current rating of 200 amperes for transient tolerance. Trench MOS Schottky technology provides high efficiency and low profile with 1.3 mm height.

Ideal for automated PCB placement in DC/DC converters and polarity protection circuits. Compliance with RoHS and automotive standard AEC-Q101 enhances quality and reliability. Explore more Schottky Diode and rectifier products at EnvMart for industrial, commercial, and automotive semiconductor needs.
