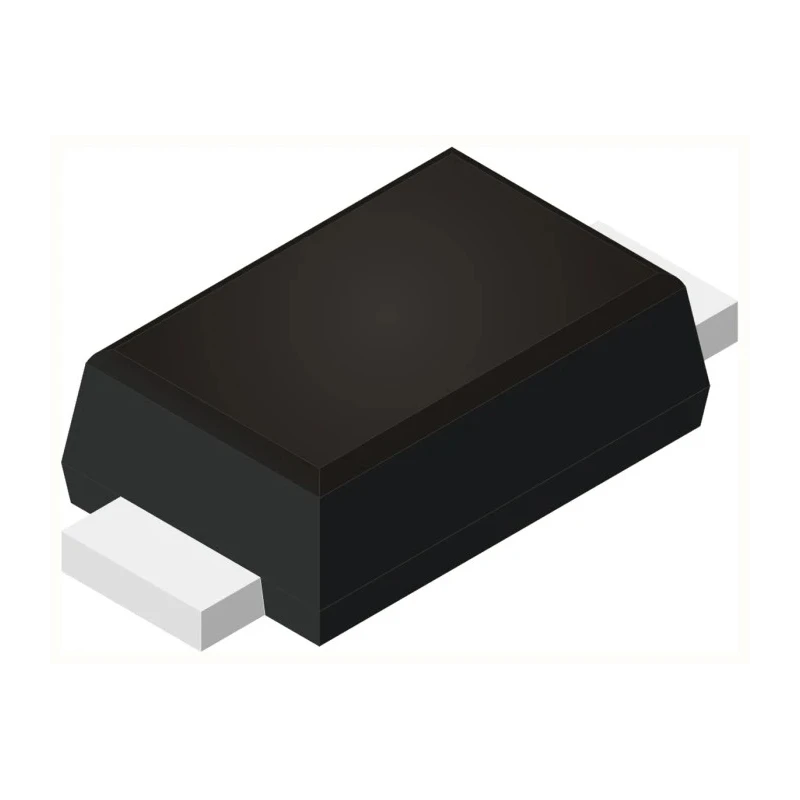

ROHM 40 V 1 A Schottky Diode Surface Mount SOD-123FL RBS1MM40ATR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 2.7mm |
| Model | RBS1MM40ATR |
| Width | 1.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-123FL |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 400μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 0.38V |
Key Features
- Provides reliable protection with a super low forward voltage of 0.38 V.
- Features a compact SOD-123FL package suitable for PCB surface mounting.
- Supports peak non-repetitive forward surge current of up to 25 A.
- Operates safely up to a maximum temperature of 125°C ensuring thermal stability.
- Offers high reliability in power rectification and switching circuits.
- Designed as a single-diode configuration with 2 pins for easy circuit integration.
Product Description
ROHM RBS1MM40ATR is a high-performance Schottky diode designed for surface mount technology applications. It supports a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 40 V. The device features a small SOD-123FL package that enables space-saving PCB designs with a length of 2.7 mm, width of 1.7 mm, and height of 0.9 mm.
This diode exhibits a very low forward voltage drop of 0.38 V which enhances energy efficiency and minimizes heat generation in power conversion and rectification circuits. It is capable of handling surge currents up to 25 A, making it suitable for transient conditions and switching power supply circuits.
Operating temperature ranges up to 125°C, ensuring reliable operation under harsh industrial and commercial environments. The ROHM RBS1MM40ATR diode is manufactured with high reliability and conforms to RoHS directives, making it an environmentally compliant choice.
Applications include power rectification, freewheeling diodes in DC-DC converters, and protection circuits in electronic and electrical systems within industrial, manufacturing, automotive non-automotive, and consumer electronics sectors.
Provides reliable protection with a super low forward voltage of 0.38 V. Features a compact SOD-123FL package suitable for PCB surface mounting. Supports peak non-repetitive forward surge current of up to 25 A. Operates safely up to a maximum temperature of 125°C ensuring thermal stability.
Offers high reliability in power rectification and switching circuits. Designed as a single-diode configuration with 2 pins for easy circuit integration. Dimensions: length 2.7 mm, width 1.7 mm, and height 0.9 mm.
This product is ideal for engineers and professionals seeking a reliable and efficient Schottky Diode for surface mount applications. Explore more ROHM semiconductor components and related electronic parts at EnvMart to support your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse repetitive voltage for this model is 40 V.
It supports a maximum continuous forward current of 1 A.
The maximum forward voltage drop is 0.38 V, which enhances energy efficiency.
It comes in a SOD-123FL package with dimensions of 2.7 mm in length, 1.7 mm in width, and 0.9 mm in height.
The maximum operating temperature is 125°C, ensuring reliable performance under various conditions.
This model can handle a peak non-repetitive forward surge current of up to 25 A.
It has a single-diode configuration with 2 pins for easy circuit integration.
The peak reverse current is rated at 400 μA.
It is suitable for power rectification, freewheeling diodes in DC-DC converters, and protection circuits in various electronic systems.
Yes, the RBS1MM40ATR conforms to RoHS directives, making it an environmentally compliant choice.
The rectifier type of this model is Schottky.
This diode is designed for surface mounting.
