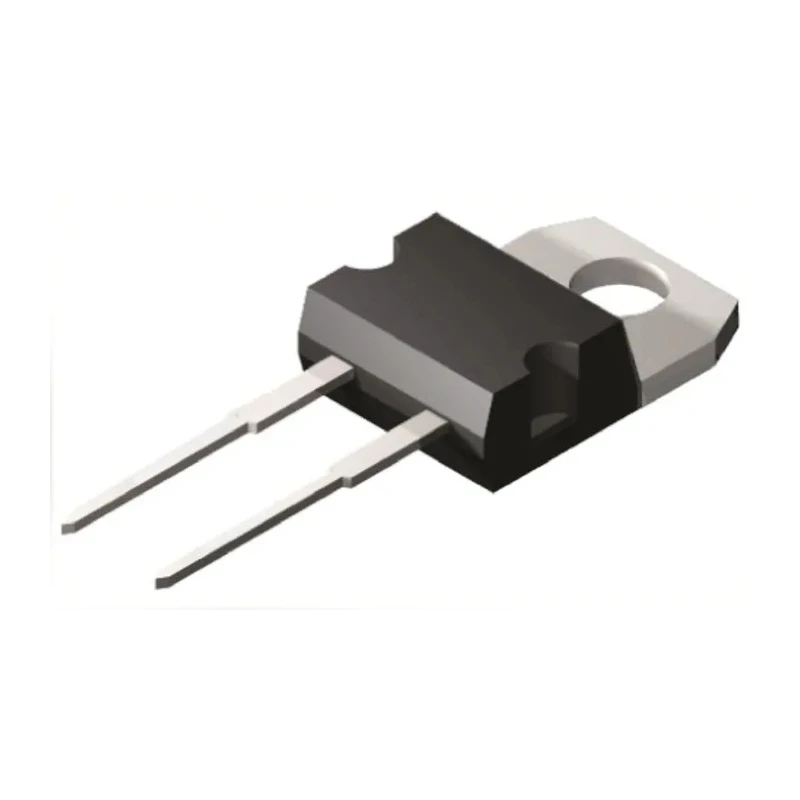

onsemi High Current 200 V 20 A Switching Diode with 2-Pin TO-220 Package MUR2020RG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 15.75mm |
| Length | 10.29mm |
| Model | MUR2020RG |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 250A |
| Maximum Forward Voltage Vf | 970mV |
| Peak Reverse Recovery Time trr | 95ns |
Key Features
- Maximum continuous forward current of 20A enables high power rectification.
- Peak reverse repetitive voltage of 200V ensures robust blocking capabilities.
- Single diode configuration supports efficient circuit design.
- Fast peak reverse recovery time of 95ns reduces switching losses.
- Operating temperature ranges from -65°C to 175°C for reliable performance.
- Rectifier type is switching, optimized for power electronics use.
- Low maximum forward voltage drop of 970mV minimizes power dissipation.
- Peak non-repetitive forward surge current rated at 250A.
Product Description
onsemi MUR2020RG is a robust switching diode designed for power electronic applications requiring handling of high forward current up to 20A and a peak reverse voltage of 200V. This 2-pin diode is housed in a TO-220 through-hole mount package, providing reliable mounting options and effective heat dissipation.
The diode features a single diode configuration optimized for switching duties with a low maximum forward voltage of 970mV, enhancing overall circuit efficiency by reducing conduction losses. Its peak reverse recovery time of 95ns makes it suitable for high-speed switching environments, minimizing unwanted switching noise and energy loss.
Designed to operate reliably within a wide temperature range from -65°C up to 175°C, it supports demanding industrial, automotive (non-automotive certified), and commercial electronics applications. The device supports high surge currents up to 250A for transient conditions, ensuring durability and resilience.
The diode's compact dimensions with a length of 10.29mm, height of 15.75mm, and width of 4.82mm fit well in space-constrained board layouts. Its 2-pin arrangement simplifies circuit design and replacement processes.
Maximum continuous forward current capacity of 20A for heavy load situations. Peak reverse repetitive voltage rating at 200V to safeguard circuits against voltage spikes. Low forward voltage drop of 970mV for energy-efficient rectification.
Fast recovery time of 95ns suitable for power supply switching and motor control circuits. A broad operating temperature range for versatile industrial applications. Robust surge current tolerance enhances device protection.
Designed for through-hole mounting in TO-220 packages, facilitating heat management. Single diode configuration providing straightforward integration. 2-pin lead configuration for standard circuit compatibility.
This diode is widely used in power rectification, switching power supplies, motor drives, power inverters, and other semiconductor discrete component applications in electronics manufacturing, automotive electronics, and industrial automation.
EnvMart recommends this high-performance onsemi diode for engineers seeking reliable switching diodes with high current and voltage handling capabilities for demanding industrial and commercial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 20A, enabling it to handle high power rectification tasks.
The peak reverse repetitive voltage rating of the MUR2020RG is 200V, which helps protect circuits from voltage spikes.
The maximum forward voltage drop is 970mV, which minimizes power dissipation during operation.
The peak reverse recovery time for this model is 95ns, making it suitable for high-speed switching applications.
This diode has dimensions of 10.29mm in length, 15.75mm in height, and 4.82mm in width.
The MUR2020RG operates reliably within a temperature range from -65°C to 175°C.
This diode is housed in a TO-220 package, which is suitable for through-hole mounting.
The peak non-repetitive forward surge current is rated at 250A, providing resilience against transient conditions.
This model is a switching rectifier, optimized for power electronics applications.
The diode has a 2-pin configuration, which simplifies circuit design and integration.
The MUR2020RG is manufactured in India.
This diode is widely used in power rectification, switching power supplies, motor drives, and power inverters.
