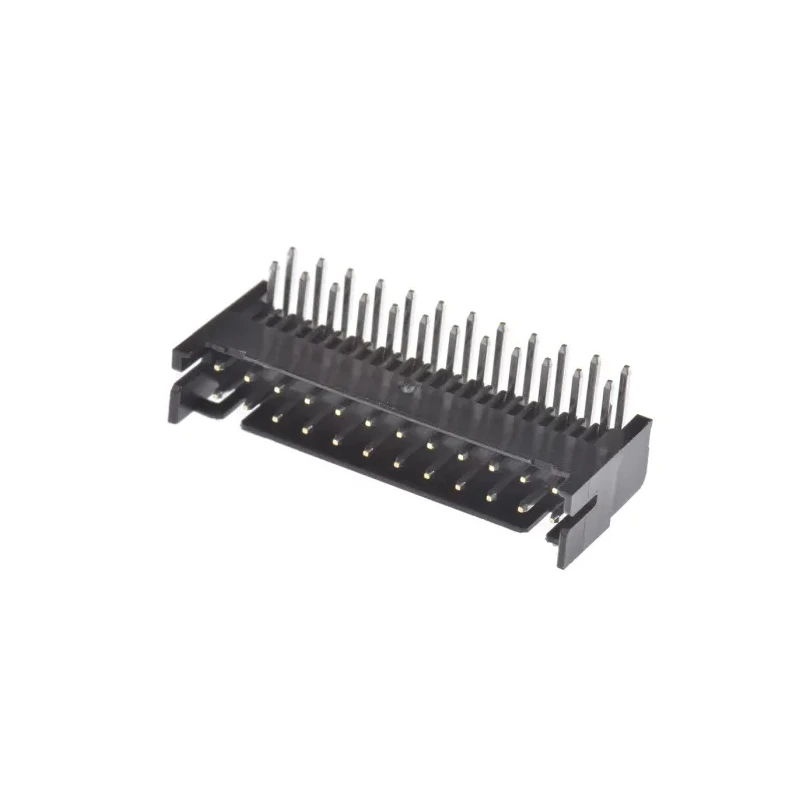

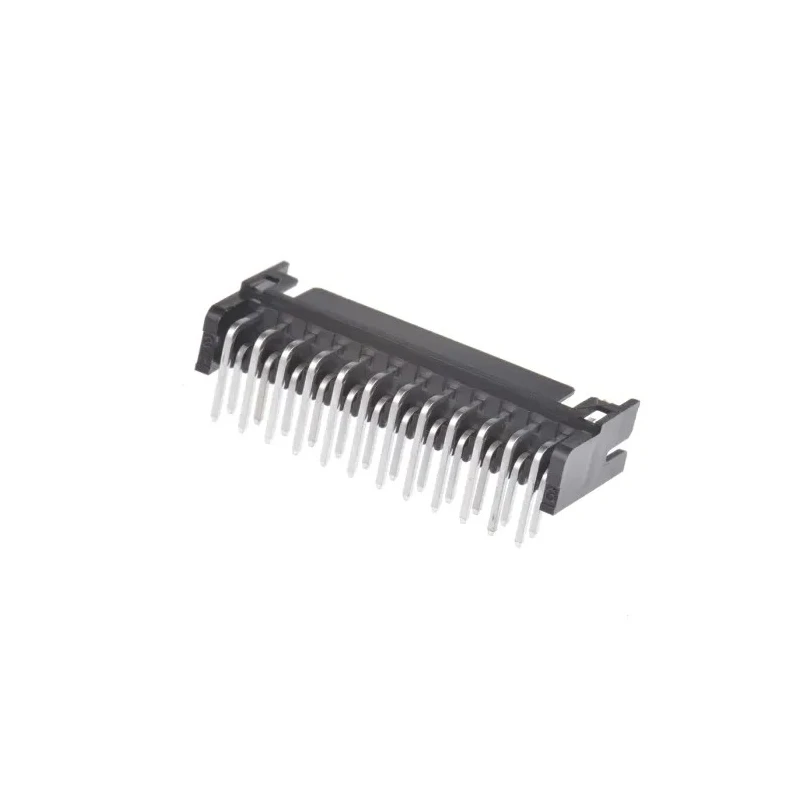

Hirose DF11 Series Right Angle Through Hole PCB Header, 24 Contacts, 2 mm Pitch, 2 Row, Shrouded DF11
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-8966Brand: HiroseManufacturers Part No.: DF11-24DP-2DS(24) |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Features a compact double row design with 24 contacts for efficient space utilization.
- Shrouded profile provides reliable protection and prevents misalignment during mating.
- Right angle orientation suitable for board-to-board and wire-to-board applications.
- Constructed with polyamide housing and brass contacts with tin plating for durability.
- Supports operating temperatures from -30°C up to 85°C for robust performance.
- Rated for 2A current and 250V voltage suitable for various electronic applications.
- Through hole mount type ensures secure soldering to PCB boards.
- Locking mechanism and guide ribs enhance connection security and prevent twisting.
Product Description
Hirose DF11 Series Right Angle Through Hole PCB Header DF11 offers a high-quality, shrouded connector solution with 24 contacts arranged in two rows with 2 mm pitch. This connector ensures a compact footprint with a depth of less than 5 mm, allowing a double row of contacts in the space typically occupied by a single row. Its polyamide housing and brass contacts with tin plating provide robust durability and reliable electrical performance.
The right angle design facilitates flexible board-to-board and wire-to-board connections. The connector features guide ribs and a locking mechanism that prevent incorrect insertion, twisting, and ensure a secure mating connection. This product supports a current rating of 2A and a voltage rating of 250V, operating safely within temperatures from -30°C to 85°C.
Ideal for electronic applications requiring multiple signal paths with space constraints, these headers suit devices such as digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement devices. The through-hole mount type ensures strong mechanical and electrical connections to PCBs.
Compact, double row 2 mm pitch design with 24 contacts. Shrouded housing and locking system for secure mating. Right angle orientation for versatile mounting. Polyamide housing with brass, tin plated contacts. Operating temperature range from -30°C to 85°C.
Rated 2A current and 250V voltage. Through hole mount for reliable solder connection. Suitable for board-to-board and wire-to-board connector systems.
This Hirose DF11 series connector is manufactured in Japan to exacting standards, ensuring consistent quality and reliability. It is an excellent choice for industrial, commercial, and laboratory electronic assembly requiring compact and secure PCB connection solutions.
Explore the full range of PCB Headers and connectors on EnvMart to find compatible and complementary products for your electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 2A and a voltage of 250V, making it suitable for various electronic applications.
It supports an operating temperature range from -30°C to 85°C, allowing for robust performance in diverse environments.
This connector features 24 contacts arranged in two rows, with a 2 mm pitch for efficient space utilization.
The housing is made of polyamide, and the contacts are brass with tin plating, providing durability and reliable electrical performance.
It utilizes a through hole mount type, ensuring secure soldering to PCB boards for reliable connections.
This model has a right angle orientation, which is suitable for board-to-board and wire-to-board applications.
Yes, it features a shrouded profile along with a locking mechanism and guide ribs to enhance connection security and prevent misalignment.
It supports both board-to-board and wire-to-board connector systems, making it versatile for various applications.
The connector has a compact footprint with a depth of less than 5 mm, allowing for efficient use of space.
Yes, it is designed for industrial, commercial, and laboratory electronic assembly, particularly where compact and secure PCB connections are required.
This connector is manufactured in Japan, ensuring consistent quality and reliability.
The termination type for this model is solder, which is standard for secure connections to PCBs.
