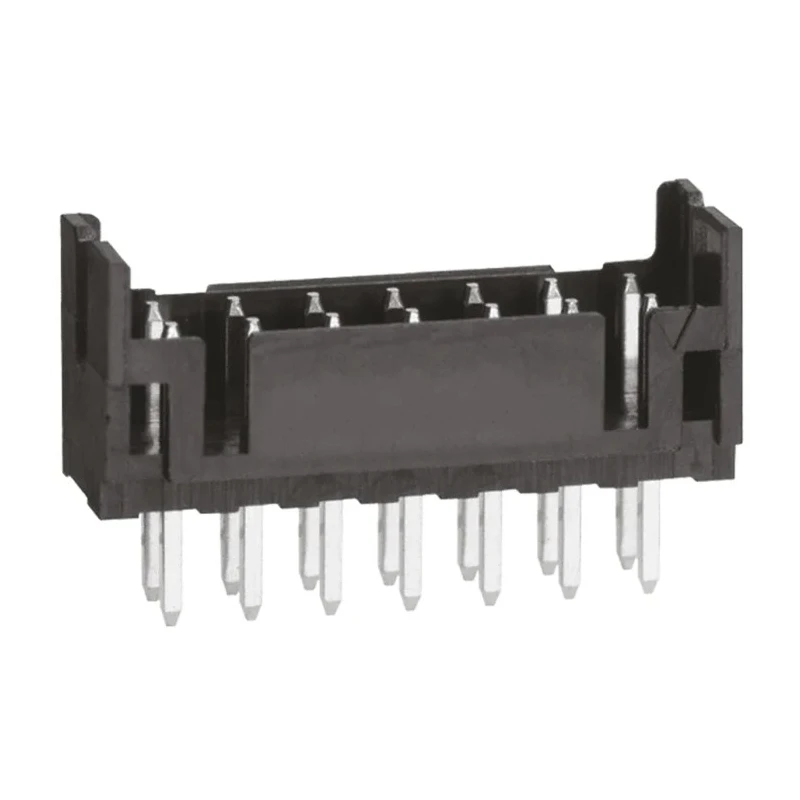

Hirose DF11 Series Straight Through Hole PCB Header 14 Contacts 2 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-9010Brand: HiroseManufacturers Part No.: DF11-14DP-2DSA(24) |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Compact double row header with 14 male contacts arranged at 2 mm pitch.
- Constructed with polyamide housing and copper alloy contacts plated with tin.
- Designed to prevent mismating via guide ribs and includes locking mechanism for secure connection.
- Operating temperature range from -30°C to 85°C suitable for various environments.
- Supports 2A current with a maximum voltage rating of 250V.
- Through hole mount type ideal for board-to-board and wire-to-board applications.
- Robust four wall shrouded design offers protection and stability during mating cycles.
- Metal fittings on SMT versions improve PCB retention and reduce solder peeling.
Product Description
Hirose DF11-14DP-2DSA(24) PCB Header is part of the DF11 series, featuring a 2.00 mm pitch and 14 contacts arranged in a compact double row configuration with through hole mounting. Its polyamide housing and copper alloy contacts with tin plating provide durability and excellent electrical performance. Designed to support a current of 2A and voltage up to 250V, this connector operates reliably across temperatures from -30°C to 85°C.
The connector includes a robust, four-wall shrouded design for added protection, supplemented by guide ribs which prevent incorrect insertion and twisting during mating. A locking mechanism ensures secure connection between header and connector housing, crucial for maintaining signal integrity. Metal fittings on SMT versions enhance PCB retention and prevent solder peeling, further extending product lifespan.
These PCB Headers are suitable for both board-to-board and wire-to-board connector systems, making them versatile for numerous industrial and commercial applications. Examples include use in digital cameras, LCD monitors, digital video recorders, car navigation systems, access control devices, and advanced measurement instruments where multiple signals require a space-efficient footprint.
Compact double row design offers space savings with 5 mm connector depth. Guide ribs and locking mechanism prevent mismating and ensure stable connections. High reliability materials: polyamide housing and copper alloy contacts with tin plating.
Supports 2A current and 250V voltage, suitable for moderate electrical loads. Temperature rating from -30°C to 85°C accommodates diverse operational environments. Through hole mounting ensures firm board integration, suitable for signal and power applications.
Four wall shrouded structure enhances mechanical protection and alignment. Industry applications include consumer electronics, automotive controls, and instrumentation.
Manufactured in Malaysia with strict quality controls, this DF11 series header meets the demands of modern PCB connector requirements. Explore the complete Hirose product range and similar power and board connector solutions on EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current of 2A and has a maximum voltage rating of 250V.
The operating temperature range for this header is from -30°C to 85°C.
It features a polyamide housing and copper alloy contacts plated with tin.
This PCB header has 14 male contacts arranged at a 2 mm pitch.
It utilizes a through hole mount type, suitable for board-to-board and wire-to-board applications.
It includes guide ribs and a locking mechanism to prevent incorrect insertion and ensure stable connections.
This unit is designed for both board-to-board and wire-to-board connector systems.
The compact double row design offers a connector depth of 5 mm.
It is manufactured in Malaysia with strict quality controls.
It is suitable for various applications including digital cameras, LCD monitors, and automotive controls.
This model uses solder termination type for connections.
The four-wall shrouded design provides mechanical protection and stability during mating cycles.
