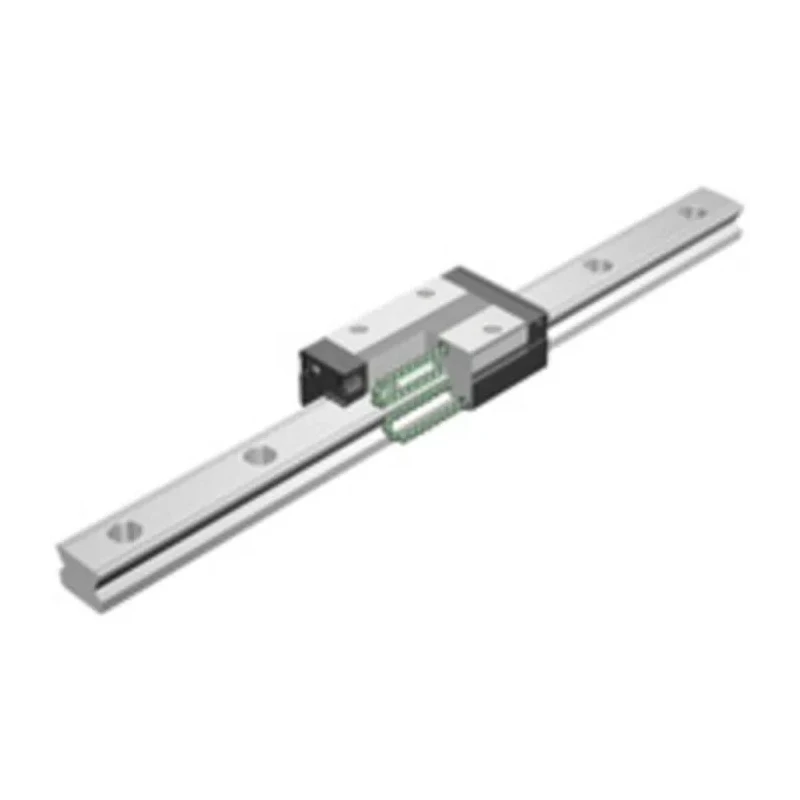

THK Linear Guide Carriage SHS Series Ball Type, Carriage Length 79.4mm, Carriage Width 34mm, Dynamic Load SHS15LV1SS(GK)

Free Delivery in India | Lowest Global Shipping Charges

THK Linear Guide Carriage SHS Series Ball Type, Carriage Length 79.4mm, Carriage Width 34mm, Dynamic Load SHS15LV1SS(GK)



Category Linear Guide Carriage Brand THK Condition New

Specifications

Country of Origin	France
Brand	THK
Model	SHS15LV1SS(GK)
Series	SHS
Static Load Rating	31.9kN
Dynamic Load Rating	17.2kN
Carriage Length	79.4mm
Carriage Width	34mm
Carriage Type	Ball
Acceptable Rail Width	24mm

Key Features

Carriage length of 79.4 mm enables compact and precise linear motion.
Carriage width measures 34 mm for robust mechanical stability.
Dynamic load rating of 17.2 kN supports heavy operational loads efficiently.
Static load rating of 31.9 kN ensures durability under static pressure.
Designed for use with 24 mm rail width providing compatibility with accepted rail sizes.
Constructed from carbon steel for enhanced strength and wear resistance.
Mounting holes are tapped for secure installation in machinery.
Manufactured in France ensuring quality standards adherence.

Product Description

THK SHS15LV1SS(GK) Linear Guide Carriage is a specialized industrial component from the SHS Series, featuring a ball-type carriage designed for precise linear motion in mechanical machinery and spares sectors. It provides a carriage length of 79.4 mm and a carriage width of 34 mm, suitable for applications demanding compact and robust guide blocks.

This linear guide carriage offers a dynamic load rating of 17.2 kN and a static load rating of 31.9 kN, ensuring high performance under heavy load and stationary stress conditions. The carriage is compatible with a 24 mm acceptable rail width, making it adaptable to various linear guide rail systems.

Manufactured primarily from durable carbon steel, the SHS15LV1SS(GK) model comes with tapped mounting holes for ease of installation and secure fixation in industrial assemblies. The product’s origin in France reflects rigorous manufacturing quality and standards.

This carriage is particularly valuable for scenarios requiring sudden design changes or maintenance work in linear motion systems within industrial, manufacturing, construction, or automation environments.

Carriage length of 79.4 mm for precise linear guiding. Robust carriage width of 34 mm enhances stability. High dynamic load capacity of 17.2 kN for demanding applications. Strong static load rating of 31.9 kN ensures product durability.

Compatible with 24 mm rail widths for versatility. Carbon steel construction offers longevity and strength. Tapped mounting holes allow secure attachment. Manufactured in France for assured quality. Adaptable for maintenance and design modification ease.

THK’s SHS15LV1SS(GK) Linear Guide Carriage from the SHS Series is an essential component in mechanical machinery requiring precise linear motion and load handling. For exploring more linear motion components by THK and other high-quality industrial tools, browse the extensive EnvMart catalog to find solutions tailored to your industrial needs.
