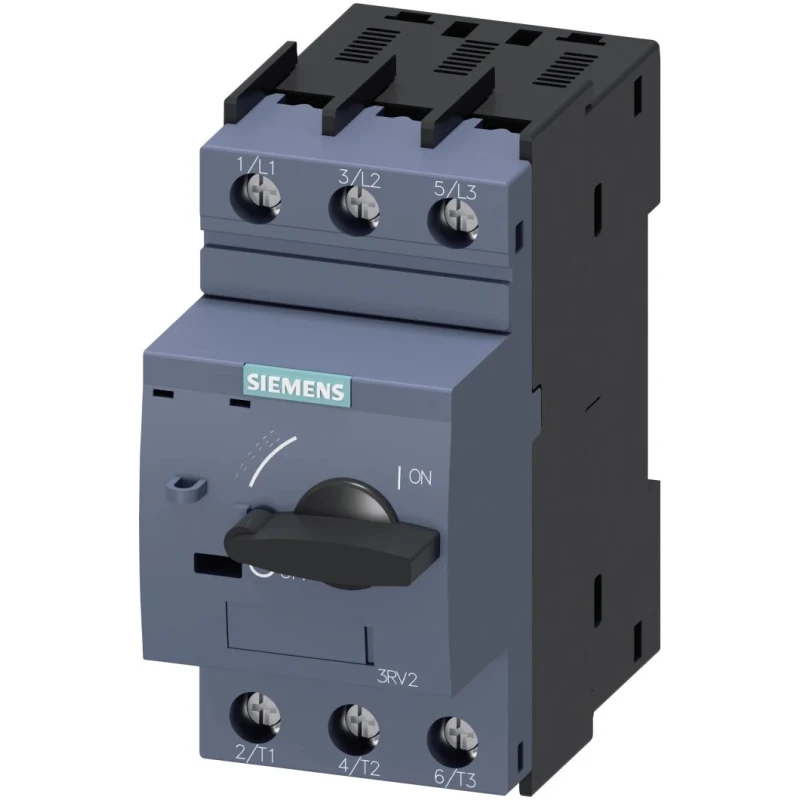

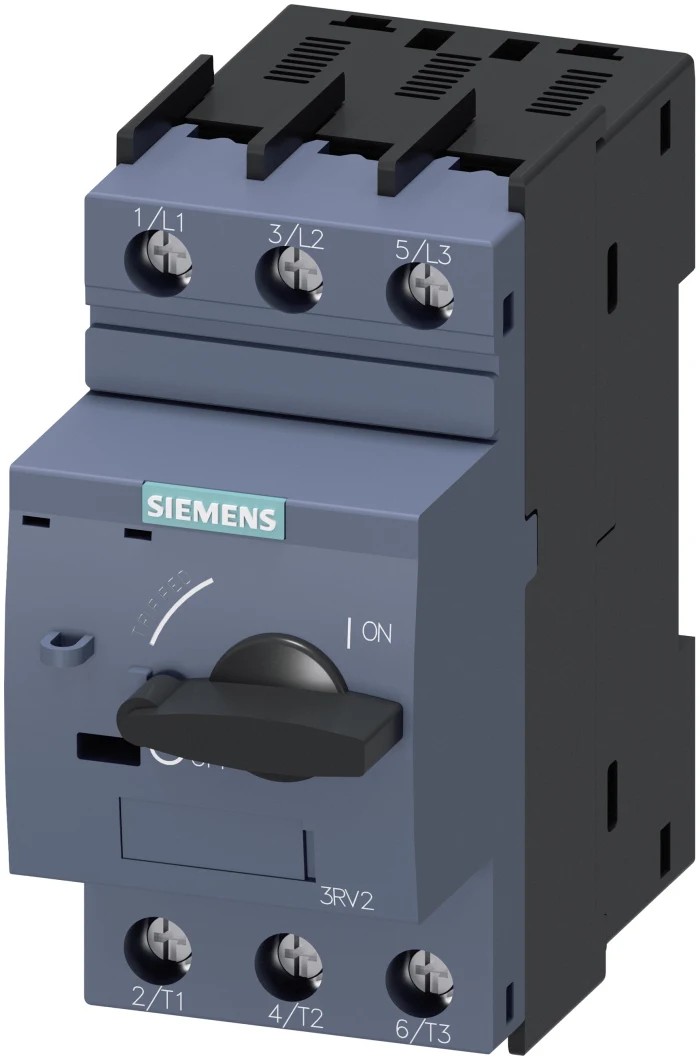

Siemens 10A 3 Pole Motor Protection Circuit Breaker 690V Magnetic Sensing 3RV2311-1JC10
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Model | 3RV2311-1JC10 |
| IP Rating | IP20 |
| Approvals | CE / UL / CSA |
| Overall Length | 97mm |
| Current Rating | 10A |
| Series | 3RV2 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Sensing type | Magnetic |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | LRS, ABS, ATEX, CCC, CE, CSA, EAC, RoHS, UKCA, UL, VDE |
| Overall Depth | 91mm |
| Better World Claim | Extended Product Life, Low Carbon Manufacture |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| WEG 10A MPW40i Motor Protection Circuit Breaker, 690V, 55 °C, -20 °CBrand | WEG |
Key Features
- Rated current of 10A enables effective motor circuit protection.
- Built to operate within temperature ranges of -20°C to 60°C for reliability in varied environments.
- Compact dimensions measuring 97mm in length, 45mm width, and 91mm depth.
- IP20 rated enclosure ensures basic protection against solid objects above 12mm.
- Compliance with multiple international standards including CE, UL, CSA, ATEX, RoHS, UKCA, and VDE.
- Designed for extended product life with environmentally conscious low carbon manufacturing.
- Magnetic sensing type ensures fast response to motor faults for enhanced safety.
- Three poles facilitate three-phase motor circuit protection.
Product Description
Siemens 3RV2311-1JC10 Motor Protection Circuit Breaker is a three-pole circuit breaker designed for motor protection applications with a rated current of 10A and a supply voltage capability of up to 690V. The device utilizes magnetic sensing technology for reliable fault detection and motor safeguarding within the temperature range of -20°C to 60°C. Compactly built with dimensions 97mm (L) x 45mm (W) x 91mm (D), it fits efficiently into electrical panels with IP20 rating offering protection against solid foreign objects larger than 12mm.
Manufactured to comply with international standards such as CE, UL, CSA, ATEX, RoHS, UKCA, and VDE, this breaker is suitable for industrial, manufacturing, HVAC, and automation applications, ensuring safe motor operation and circuit protection. The device belongs to the Siemens 3RV2 series featuring screw connection and spring clamp technology for secure electrical connections.
Its low power loss of approximately 6 to 7 watts enhances energy efficiency while the impulse voltage resistance of 6 kV adds rugged withstand capability against electrical surges. Designed with extended product life and low carbon manufacturing credentials as part of Siemens' sustainability efforts, this breaker is ideal for environmentally conscious industrial use.
Rated current: 10A for motor protection. Operating temperature range: -20°C to 60°C. Supply voltage up to 690V. Dimensions: 97mm length, 45mm width, 91mm depth. IP20 protection level. Magnetic sensing for fast response. 3 poles for three-phase motor protection.
Compliance with CE, UL, CSA, ATEX, RoHS, UKCA, VDE standards. Low power loss of 6-7 watts. Impulse voltage resistance of 6 kV. Extended product life and low carbon manufacture.
This Motor Protection Circuit Breaker is essential for safeguarding electric motors in a variety of industrial settings including automation, manufacturing, HVAC systems, and other commercial applications. Explore the full range of motor protection products on EnvMart for optimized electrical safety and efficiency solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated current of this motor protection circuit breaker is 10A, designed for effective motor circuit protection.
This model can operate with a maximum supply voltage of 690V.
It operates effectively within a temperature range of -20°C to 60°C.
It features three poles, facilitating three-phase motor circuit protection.
The enclosure has an IP20 rating, providing basic protection against solid objects larger than 12mm.
It utilizes magnetic sensing technology for fast response to motor faults, enhancing safety.
The dimensions are 97mm in length, 45mm in width, and 91mm in depth.
It complies with multiple international standards including CE, UL, CSA, ATEX, RoHS, UKCA, and VDE.
The unit has a low power loss of approximately 6 to 7 watts, enhancing energy efficiency.
It has an impulse voltage resistance of 6 kV, providing rugged capability against electrical surges.
This model is suitable for industrial, manufacturing, HVAC, and automation applications, ensuring safe motor operation.
This circuit breaker is manufactured in Germany.
