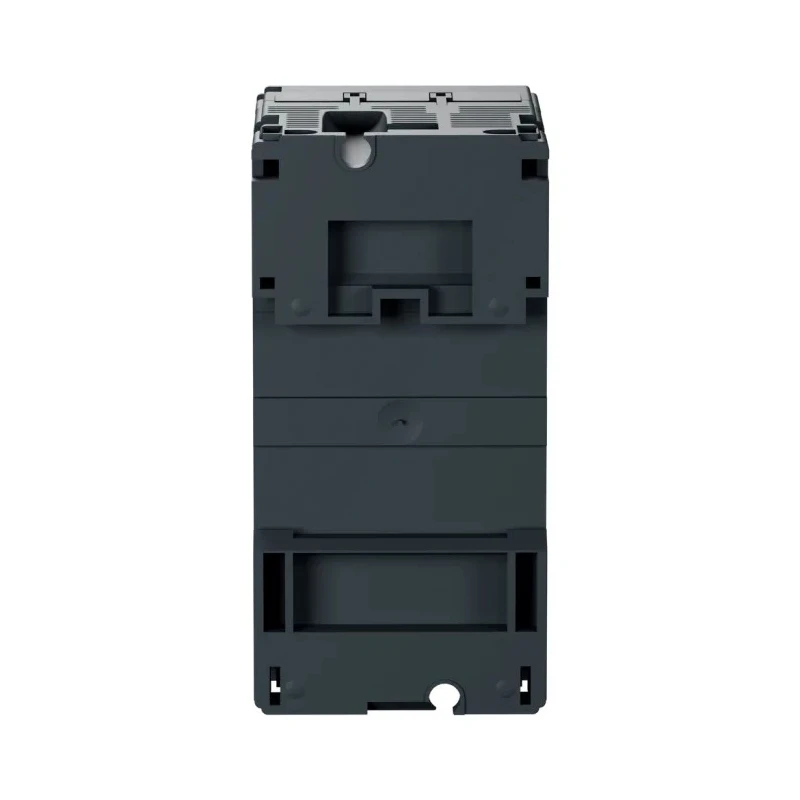

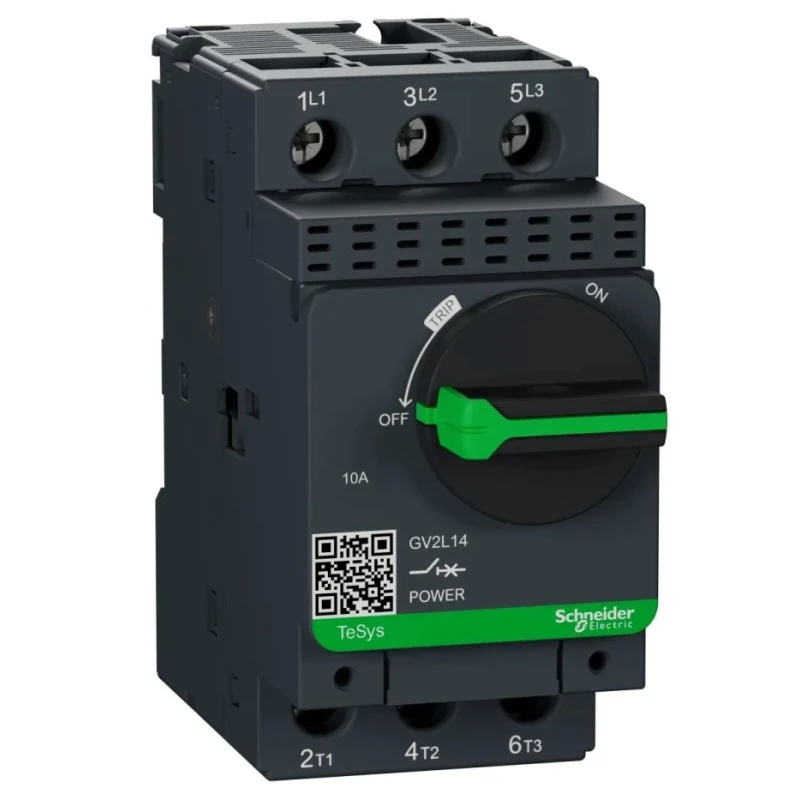

Siemens 10A 3-Pole Motor Protection Circuit Breaker 690V Thermal Magnetic GV2L14

Schneider Electric GV2L14 is a high-performance motor protection circuit breaker designed to safeguard 3-phase motors by detecting overloads, short circuits, and motor faults effectively. Rated at 10A and 690V, this 3-pole device utilises thermal magnetic sensing technology to provide reliable protection in industrial, automation, and electrical applications.

The compact, lightweight construction makes it ideal for tight installation areas, with robust build quality ensuring durability in demanding environments. The rotary knob facilitates local manual control for start and stop operations, rated for an impressive 100,000 mechanical cycles under AC-3 utilization categories.

The device supports connection via screw clamp terminals, ensuring secure and stable wiring. Operating reliably within -20°C to 60°C ambient temperatures and offering an IP20 ingress protection rating, it is suitable for a broad range of industrial conditions.

Designed specifically for motors between 3 and 4 kW at 400V, the GV2L14 series offers enhanced protection via an adjustable magnetic trip setting capable of tripping at 13 times the rated current. The device also integrates an undervoltage trip function, allowing the circuit breaker to trip automatically if voltage is lost, alongside remote tripping via a built-in shunt trip feature.

For complete motor protection, it can be paired with Schneider Electric's LRD14 thermal overload relay (sold separately). The GV2L14 is certified to a comprehensive range of international standards including IEC 60947-2, UL, CSA, CCC, and ATEX, reflecting its compliance and safety for global industrial applications.

This circuit breaker is commonly used in electrical motor control and protection systems, easily mounted using screw or clip fixing on standard mounting rails. Its safety features include prevention of user access to live parts and magnetic trip technology integrated within the breaker body.

Provides magnetic protection with a high breaking capacity of 100kA at 400V. Compact and robust design suitable for tight installation spaces. Equipped with a rotary knob for start-stop control, rated for 100,000 cycles AC-3.

Operates in temperatures from -20°C to 60°C with an IP20 protection rating. Has screw clamp terminal connections for secure wiring. Compatible with thermal overload relay LRD14 for complete motor protection (sold separately).

Certified to multiple international standards including IEC 60947 and UL. Features built-in undervoltage trip and remote tripping capability via shunt trip. Designed for 3-phase motors of 3-4 kW at 400V. Explore more motor protection devices and components available in the Motor Protection Circuit Breaker category at EnvMart for industrial automation and electrical system safety.
