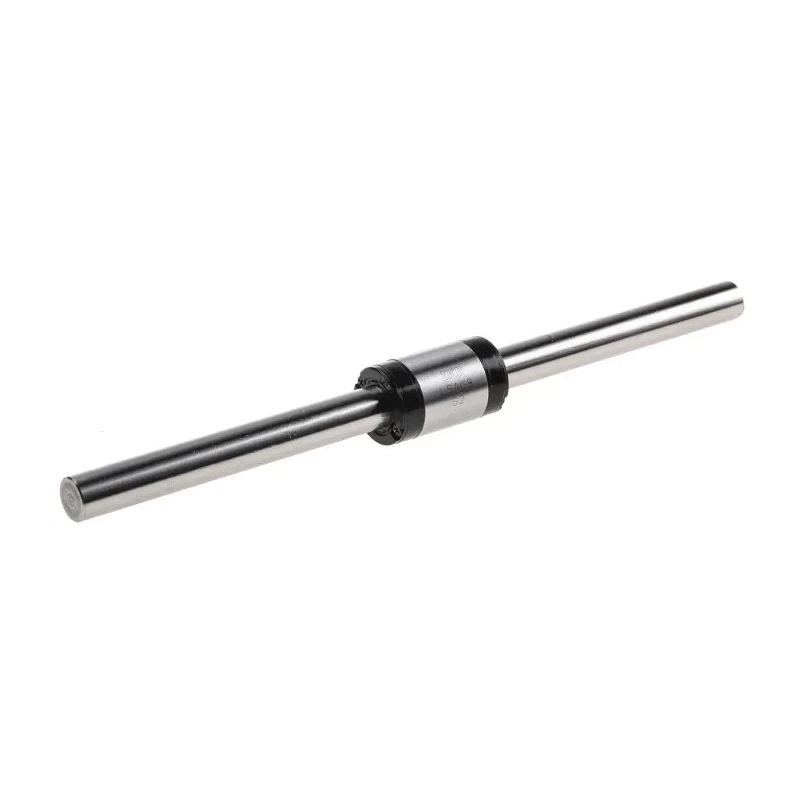

IKO Nippon Thompson Ball Spline Assembly, 8 mm Shaft Diameter, 150 mm Shaft Length LSAG8C1R150

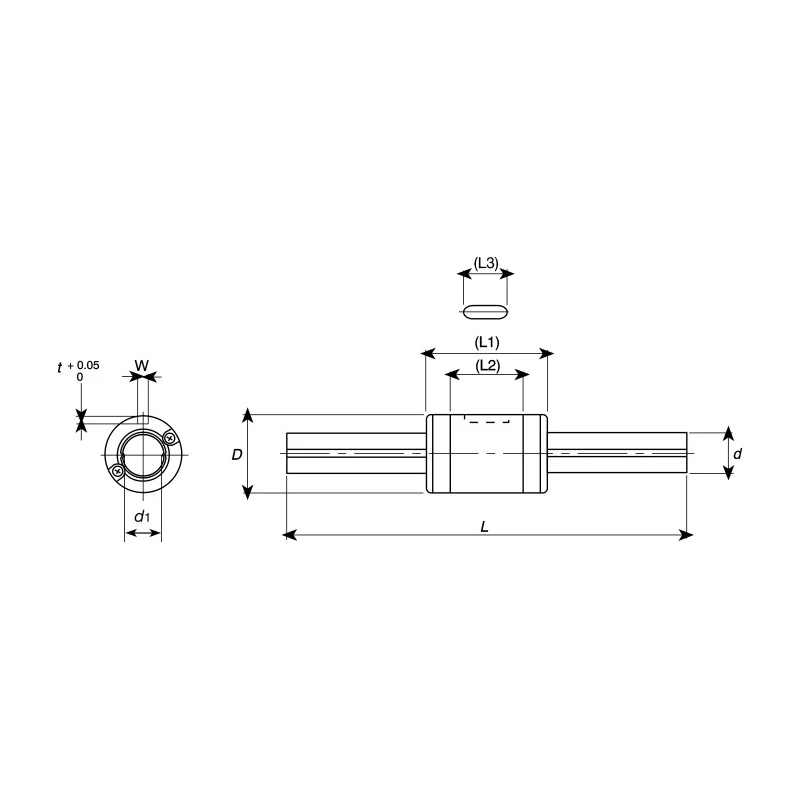

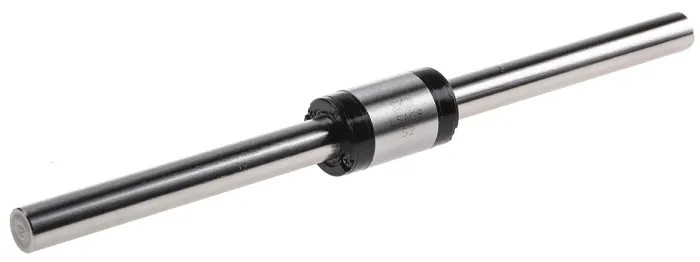

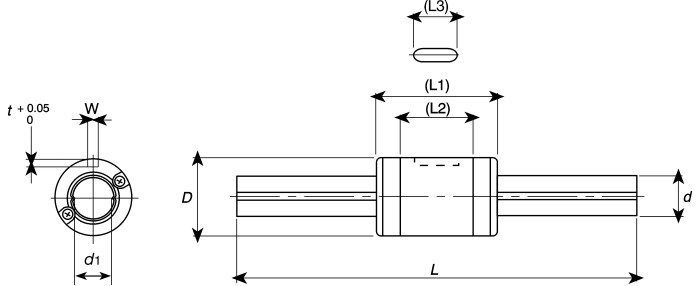

IKO Nippon Thompson LSAG8C1R150 Ball Spline Assembly is designed for smooth and precise linear motion in industrial mechanical power transmission applications. The assembly consists of a splined shaft of 8 mm diameter and 150 mm shaft length coupled with an external cylinder containing two rows of raceways and recirculating balls in four-point contact. This configuration offers a compact but highly efficient structure that delivers high rigidity and load capacity with low friction.

The ball spline assembly ensures stable operating accuracy and is capable of handling a static torque rating of 6.2 Nm and dynamic torque rating of 5.5 Nm, suitable for demanding environments requiring smooth linear motion and accurate positioning. The dynamic load rating is 1190 N while the static load rating is 1330 N, supporting heavy-duty applications with reliable performance.

Manufactured in Japan, this ball spline assembly meets exacting production standards, making it ideal for use in industrial, manufacturing, automation, robotics, and mechanical machinery where linear motion components are critical. Its compact size and high rigidity provide durability in various load conditions.

The assembly includes a splined shaft with 8 mm diameter and 150 mm shaft length. Features two rows of raceways with recirculating balls in four-point contact for smooth movement. Offers high load ratings with static torque of 6.2 Nm and dynamic torque of 5.5 Nm.

Dynamic load rating of 1190 N and static load rating of 1330 N ensure performance under heavy loads. Constructed for low friction and reliable linear motion accuracy. Compact and rigid design suitable for precise mechanical power transmission.

Manufactured in Japan ensuring high quality and reliability. Explore more precision mechanical components and assemblies in the Mechanical Power Transmission category at EnvMart for your industrial needs.
